Performance Estimation

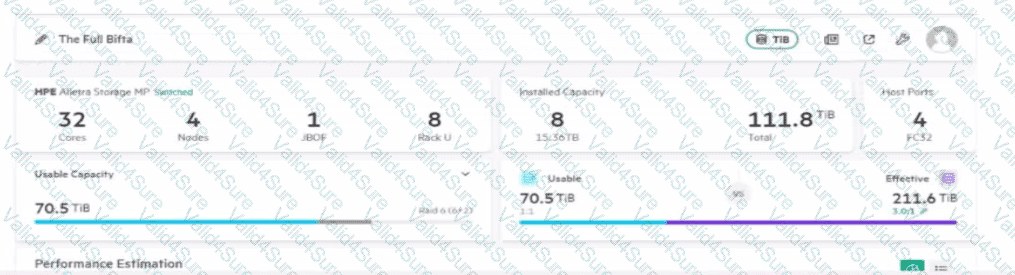

The HPE Ninja Sizer is a vital tool for storage architects to model the "Performance vs. Capacity" trade-offs of the HPE Alletra MP B10000 disaggregated architecture. In this scenario, the current configuration (as shown in the exhibit) consists of 4 nodes and 1 JBOF (with 8 drives of 15.36TB each).

To address poor read/write performance in Ninja Sizer, the partner must analyze the Performance Estimation pane. By clicking the chart/graph icon in the bottom right of the summary dashboard, the tool opens a detailed breakdown of the IOPS, throughput, and latency limits for the selected hardware. In a disaggregated shared-everything (DASE) architecture like the Alletra MP, performance is a direct function of the "node-to-drive" ratio. A configuration with only 8 drives (as seen in image_6491d0.png) may be "disk-bound," meaning the controllers have more compute power than the backend drive count can support in parallel.

By accessing the performance details, the partner can see if the bottleneck is at the node level (CPU/Cores) or the drive level (Flash bandwidth). To "correct this issue" and optimize the sizing, the partner would typically need to increase the drive count within the JBOF to allow for more parallel I/O streams or add additional JBOFs to scale the backend bandwidth. The Ninja Sizer provides real-time feedback; as the partner adds more 15.36TB drives, they will see the Performance Estimation bars move from yellow/red toward green, indicating an appropriately balanced solution that meets the customer's latency and throughput SLAs.

The HPE Alletra 9000 (and its predecessor, HPE Primera) supports various Remote Copy (RC) topologies to meet different disaster recovery and data distribution requirements. These include 1-to-1, 1-to-N (fan-out), and N-to-1 (fan-in) configurations.

In an N-to-1 Remote Copy configuration, multiple source storage systems (represented by 'N') replicate their data to a single, centralized target system at a disaster recovery (DR) or secondary site. This architecture is particularly efficient for organizations with multiple regional or branch offices that wish to centralize their backup and DR operations into a single data center to reduce hardware costs and simplify management. In the scenario described, the company has three primary sites ($N = 3$), each with its own storage array. To implement an N-to-1 strategy, the administrator only needs to provide one storage array at the DR site. This single target array must be sized appropriately to handle the combined capacity and performance requirements (IOPS and throughput) of the incoming replication streams from all three source systems.

Architecturally, the Alletra 9000 uses Remote Copy Groups to manage these relationships. Each group on the source systems is mapped to a corresponding group on the single target system. It is important to note that while the hardware requirement is a single array, the administrator must ensure the target array has sufficient Remote Copy ports (RCIP or RCFC) and licensed capacity to accommodate the fan-in ratio. The Alletra 9000 management interface and HPE GreenLake Data Services Cloud Console (DSCC) provide the orchestration necessary to monitor these multiple inbound streams and ensure that the Recovery Point Objectives (RPOs) are met across all sites simultaneously.

Configure

In a VMware vSphere environment, integrating HPE Alletra storage typically involves the installation of the HPE Storage Peer Motion Utility or the HPE Storage Connection Manager for VMware, which provides the VASA (vSphere APIs for Storage Awareness) provider functionality. This integration allows vCenter to manage storage arrays directly for tasks such as provisioning Virtual Volumes (vVols) and monitoring storage health.

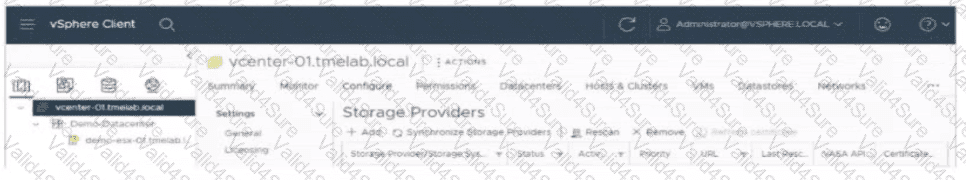

According to the HPE Alletra Integration Guide for VMware, after the plug-in or provider is registered with vCenter, an administrator can verify its status through the vSphere Client UI. As shown in the exhibit (image_64a7b7.png), the administrator is currently viewing the Storage Providers section under the Configure tab of the vCenter object. This specific view is the correct location to verify that the HPE VASA provider is active and communicating. The list under "Storage Provider/Storage System" should show the Alletra array's URL and a status of "Active" or "Online."

If the administrator wants to verify the registration of the UI-based plug-in itself (which adds specific HPE menus and dashboards), they should click the three dots (...) at the end of the navigation bar. This reveals additional hidden tabs where specialized vendor extensions, such as the HPE Storage dashboard, are located. Successful installation is confirmed if the HPE-specific provider is listed with a valid certificate and the "Last Rescan" time is current. Failure to see the provider in this list indicates that the registration process (typically performed via the array's management console or a separate appliance) was not completed successfully, which would prevent the use of advanced features like Storage Policy Based Management (SPBM).

The management of an HPE Solution with Cohesity is centered around providing a unified, global experience across hybrid and multi-cloud environments. For managing data protection policies, alerting, and operational oversight across one or more Cohesity clusters, the correct tool is Cohesity Helios.

Cohesity Helios is a SaaS-based management platform that provides a "single pane of glass" for the entire Cohesity data estate. According to HPE and Cohesity technical documentation, Helios utilizes machine learning and AI-driven analytics to offer proactive health monitoring and global search capabilities. It allows administrators to define a single set of data protection policies—covering variables like frequency, retention, and replication—and apply them universally across clusters located on-premises (on HPE Alletra 4000 servers), at the edge, or in the public cloud.

In contrast, SpanFS (Option D) is the underlying web-scale distributed file system that powers the Cohesity DataPlatform, but it is not a management tool itself. HPE GreenLake Data Ops Manager (Option B) is part of the HPE Data Services Cloud Console (DSCC) primarily used for managing native HPE Alletra Block and File storage arrays, rather than third-party software-defined platforms like Cohesity. While the solution can be procured via HPE GreenLake Flex (Option A), the operational day-to-day management of the software policies resides within the Helios console to ensure consistency with Cohesity’s broader ecosystem. Helios ensures that as the customer scales their Alletra 4000 footprint, the management of their secondary data remains simplified and policy-driven.

LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

The HPE Alletra MP B10000 (Block storage) represents a paradigm shift in HPE's high-end storage strategy by utilizing a modular, disaggregated architecture. One of the most significant technical advantages of this platform is its Advanced Erasure Coding and the way it handles data layout across the disaggregated NVMe capacity.

According to the HPE Alletra MP technical deep-dive documents, the system does not use traditional fixed RAID groups. Instead, it uses a massive, distributed stripe mechanism. The software is capable of varying the stripe width dynamically based on the number of available drives and nodes in the cluster. This allows the system to achieve industry-leading capacity efficiency. Specifically, the system can utilize stripe sizes ranging from a minimum of 16+3 to a maximum of 146+3. This high data-to-parity ratio (e.g., 146 data segments for every 3 parity segments) allows customers to realize significantly higher usable capacity from their raw NVMe investment compared to traditional RAID 6 (6+2 or 8+2) or even typical erasure coding in competitive mid-range arrays.

Option A is technically incorrect because, in the Alletra MP, data is typically committed to persistent NVMe media or SCM (Storage Class Memory) in a way that doesn't rely on legacy battery-backed volatile DRAM in the same manner as older controllers. Option C is incorrect because Locally Decodable Erasure Coding is actually designed to reduce rebuild times by requiring fewer IOPS to reconstruct a missing fragment. Option D, while "Workload Simulator" is a tool used in sizing (NinjaStars), the most "important" architectural feature listed that differentiates the Alletra MP’s efficiency is its unique and massive scaling stripe width.

HPE CloudPhysics is a SaaS-based analytics platform integrated into the HPE GreenLake Data Services Cloud Console (DSCC) that provides deep insights into virtualized infrastructure. It uses a visual metaphor called "cards" to present focused analytics for specific use cases.

When a customer is concerned about storage efficiency and the overall impact of VM workloads, the Simulator for VM Rightsizing (also known as the VM Rightsizing Simulator) is the primary tool for analysis. This card specifically identifies inefficiencies such as over-provisioned or "oversized" virtual machines. By analyzing the actual resource utilization (CPU, memory, and I/O) versus the allocated capacity, the rightsizing simulator can highlight which VMs are consuming excessive resources without operational need.

Reviewing this card first is critical because storage efficiency is often compromised by "virtual sprawl" and bloated VM templates that waste disk space and IOPS on the backend HPE Alletra arrays. While the Shared Storage Analysis card (Option C) provides visibility into datastore contention and performance, the Simulator for VM Rightsizing provides the most direct answer to "efficiency" concerns by identifying the exact VMs that can be trimmed down to reclaim stranded capacity. Correcting VM sizing at the hypervisor level is often the most effective first step in optimizing the performance and capacity return on investment of the underlying storage hardware.

The HPE Alletra 4000 series (specifically the Alletra 4110 and 4120) are technically classified as Storage Servers. Unlike traditional "closed" storage arrays like the Alletra 6000 or 9000, the Alletra 4000s are open platforms derived from the HPE Apollo lineage, designed to run Software-Defined Storage (SDS) stacks such as HPE Ezmeral Data Fabric, Scality, or Qumulo.

Because these systems are fundamentally high-density servers, their lifecycle management—including firmware updates (BIOS, iLO, controllers), health monitoring, and remote configuration—is integrated into the HPE GreenLake for Compute Ops Management (COM) service. COM provides a cloud-native console designed specifically for server administrators to manage fleets of ProLiant and Alletra 4000 servers from a single pane of glass.

While the customer is building a storage solution, the Data Ops Manager (DOM) (Option D) is the control plane for HPE’s specialized block and file arrays (managed via DSCC) and is not the tool used for raw storage server hardware management. Similarly, the "File Storage" and "Block Storage" tiles in GreenLake refer to specific Storage-as-a-Service (STaaS) offerings rather than the underlying hardware management for SDS building blocks. For a partner designing an Ezmeral solution on Alletra 4000, Compute Ops Management is the correct tool to ensure the hardware stays compliant with the latest HPE Service Pack for ProLiant (SPP) and firmware baselines required for stable SDS operations.
