HPE7-A07 Exam Dumps - Aruba Certified Campus Access Mobility Expert Written Exam

HPE Aruba Networking Central can identify which switch port a rogue AP is connected to by using the switch's MAC address table. The MAC address table contains the associations between MAC addresses and the switch ports to which devices (including APs) are connected. When Aruba Central detects a rogue AP, it can look up the MAC address of the rogue AP in the switch's MAC address table to find the specific switch port it is connected to. This enables network administrators to quickly locate and address the rogue AP issue.

In the context of an EVPN VXLAN fabric, the Route-Reflector Persona is most appropriately configured at theServices Aggregationlayer. This layer is responsible for interconnecting different network services and typically includes more robust, higher-capacity devices capable of handling the route-reflection functions for EVPN VXLAN.

In an Aruba Networks fabric, route reflectors are used to optimize the distribution of BGP routes. The Services Aggregation layer, which is centrally located in the network topology, is best suited for this role due to its high availability and ability to efficiently manage routes between the core and access layers.

Therefore, if you were to click on the image provided, you would select the Services Aggregation layer to configure the Route-Reflector Persona.

The configuration shown in Option A is a valid configuration for a multi-chassis link aggregation (MC-LAG) setup. It specifies the use of LACP (Link Aggregation Control Protocol) with a fast rate of LACP PDUs exchange, which is appropriate for creating a resilient and high-throughput link aggregation. The 'vlan trunk allowed all' command allows all VLANs across the trunk, and 'vlan trunk native 100' sets VLAN 100 as the native VLAN for untagged traffic.

MU-MIMO (Multi-User, Multiple Input, Multiple Output) provides the most efficient use of airtime for VoIP traffic among the options listed. MU-MIMO allows multiple users to receive multiple data streams simultaneously, improving the overall efficiency of the network, especially in dense environments where VoIP applications need consistent and reliable connectivity.

When troubleshooting a WLAN with 802.1X tunneled SSID issues, AP tunnel states indicate the status of the connection between the AP and the gateway/controller. The states 'SM_STATE_REKEYING' and 'SM_STATE_CONNECTING' could indicate transitional states where the connection has not been fully established, hence users might face issues connecting to the SSID. 'SM_STATE_REKEYING' implies that the AP is in the process of re-establishing encryption keys, while 'SM_STATE_CONNECTING' indicates that the AP is trying to establish a connection with the controller or gateway. These states could lead to temporary connectivity issues until the state transitions to 'SM_STATE_CONNECTED'.

Graceful Restart (GR) allows a router to continue forwarding packets while it restarts its OSPF process. The GR helper role on AOS-CX switches supports routers during this process. OSPFrouters listen for Grace-LSAs to identify neighbors undergoing a graceful restart, maintaining adjacencies with those routers to allow uninterrupted forwarding.

In an Aruba deployment, if an AP's interfaces show different LACP states, it often indicates a configuration mismatch. If one interface is up and the other is blocked as shown in the output,it's likely due to both interfaces on the AP being set to LACP active mode, which is a correct setting for establishing an LACP channel with Aruba switches like the CX 6300 series.

The capture shows messages related to WPA key management, indicating WPA2-PSK is being used. Also, the capture includes a DHCP request from the client but no corresponding DHCP ACK, suggesting the client is not receiving an IP address, which could explain the connectivity failure.

To maximize wired bandwidth utilization, especially when multiple APs are terminating on mobility gateways, it's best practice to aggregate physical ports into a port channel. This provides redundancy and increased bandwidth by combining the throughput of multiple ports.

In the United States, the operation in the 6GHz band for Wi-Fi devices such as the AP-634 and AP-635 is regulated by the Automated Frequency Coordination (AFC) system, which determines the channels that can be used based on the location. Since the Proof of Concept (POC) was conducted in a different location using AP-635 APs, the allowable channels identified by the AFC service for that location would be different than the channels allowed for the actual deployment location of the AP-634 APs. This would result in a different set of broadcasting channels being available for use in the new warehouse deployment.

Best Effort and Scavenger =DF (0)Bulk and Transactional Data =AF21 (18)Multimedia Streaming =AF31 (26)Real-Time Interactive =EF (46)

When cluster preemption is not enabled, access points (APs) will not automatically fail back to the primary gateway cluster once it is up again after having failed over to the secondary. This would result in an equal split of APs across primary and secondary clusters if both clusters are operational. Without preemption, there's no automatic rebalancing of APs back to the primary cluster, leading to the current distribution.

In a packet capture from an upstream switch port mirror, you would see the VLAN assignment. The port mirror captures the traffic as it is on the network, including any VLAN tags. GRE or IPsec tunnels encapsulate the original packet, including VLAN tags, but the VLAN information is not visible within the encapsulation headers.

It is a common practice to separate successful and failed test results into different files for ease of troubleshooting. If the "datagrams.pcap" file shows no issues, it's likely because it only contains successful test data, and the failed tests that could explain the poor user experience would be in a different file, such as "datagrams-failed.pcap."

The CLI output provided shows routing information from a CX 6300 switch. The output under "VRF: default" shows various IP routes, including a route for 10.203.1.100/32 with a next hop of 172.21.11.2. This indicates that the route to the client with IP address 10.203.1.100 is known in the network and is reachable via another device in the fabric, which has the loopback IP address 172.21.11.2. Since the route is present in the routing table, it means that the client is known and active within the fabric network.

The sequence to return to the previous firmware version after an unsuccessful update would typically be:

• hit any key to stop autoboot(This would prevent the system from automatically booting into the current, problematic firmware.)
• def_part 1(This command sets the default boot partition, which is likely where the previous working firmware is located.)
• bootf(This command would boot from the specified flash partition, which after the second step, would be the previous firmware.)
• osinfo(After the system is booted, this command could be used to confirm the firmware version now running on the gateway.)

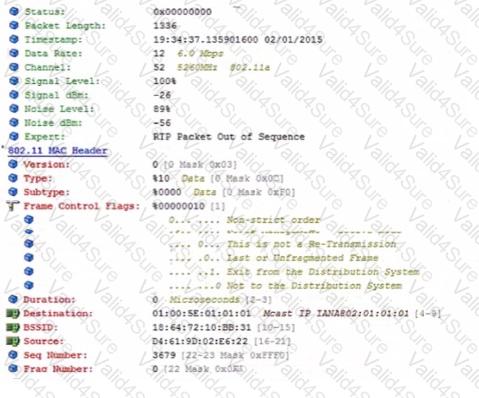

Dynamic Multicast Optimization (DMO) is a feature that enhances the delivery of multicast traffic by optimizing the data rate. The before and after optimization images show a significant increase in the data rate, which is a typical result of DMO being configured, as it allows multicast traffic to be transmitted at higher data rates by converting multicast streams into unicast streams for the clients that need them.

To address connectivity issues when students are working outdoors, increasing the transmission (TX) power range for the 5GHz radios can help improve signal strength and coverage. The setting shown indicates a conservative approach to power settings, which might not provide sufficient coverage for outdoor areas. By increasing the power range, you can extend the wireless signal reach, which aligns with best practices for outdoor wireless coverage.
