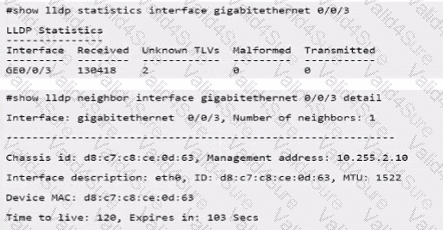

The issue is that unknown TLVs (Type Length Values) cannot be displayed. LLDP (Link Layer Discovery Protocol) is used to share device information with network neighbors, but if a TLV is not recognized by the LLDP implementation on the gateway, it won't be displayed or processed. Hence, the Asset ID TLV set on the device for inventory management is not showing up because it is unrecognized or unsupported by the gateway's LLDP.

Comprehensive and Detailed Explanation (Verified Extract from HPE Aruba Networking Switching Documentation)

In Aruba AOS-CX switching environments, Quality of Service (QoS) allows the switch to prioritize certain types of traffic such as voice, video, or real-time applications.

When a connected endpoint (such as a VoIP phone or wireless handset) marks packets with DSCP = 46 (Expedited Forwarding for voice), the switch must trust these markings to maintain end-to-end traffic prioritization.

Key Concept: Trust Boundary

By default, Aruba switches do not trust incoming DSCP or 802.1p markings from end devices for security reasons.

To allow the switch to accept and act on these values, the QoS trust DSCP feature must be explicitly enabled on the relevant interface or globally.

Official Aruba AOS-CX Extract:

“The qos trust dscp command enables the switch port to honor the Differentiated Services Code Point (DSCP) markings received from connected devices. When trusted, packets maintain their QoS priority as they traverse the switch fabric.”

When wireless handsets connect to a bridged SSID, their traffic is bridged locally at the access switch — meaning the switch sees the traffic directly from the AP. If the handset marks the packet with DSCP 46, enabling QoS trust DSCP ensures that the switch preserves that marking and applies the appropriate voice priority queue treatment.

This configuration ensures end-to-end QoS consistency between the wireless AP, mobility gateway, and wired switch.

Option Analysis:

A. Incorrect – “Voice Wi-Fi Multimedia Share” is not a valid Aruba configuration feature; WMM shares QoS mapping but not DSCP trust.

B. Incorrect – UCC (Unified Communications and Collaboration) enhances call visibility and diagnostics, not DSCP trust or QoS marking.

C. ✅ Correct – Enables the switch to trust and honor DSCP markings (such as DSCP 46) received from endpoints or bridged SSIDs.

D. Incorrect – WMM (Wi-Fi Multimedia) is required for prioritization over wireless links, but since this is a bridged SSID, the DSCP markings must be honored at the switch, not just the AP.

✅ Final Verified Answer: C

📘 Reference Sources (HPE Aruba Official Materials):

Aruba AOS-CX Quality of Service (QoS) Configuration Guide

ArubaOS 10 WLAN and Mobility Configuration Guide – QoS and WMM for Voice SSIDs

Aruba Certified Switching Professional (ACSP) Study Guide – QoS Trust and Traffic Classification

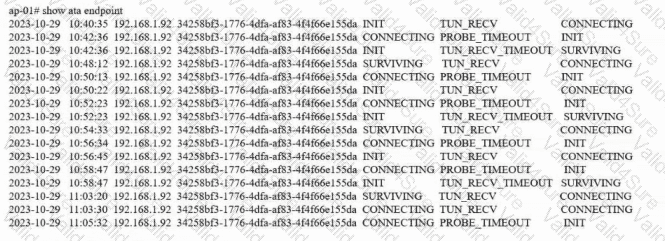

The show ata endpoint output lists the AP’s AP Tunnel Agent (ATA) state transitions with a given gateway.

Key state/result fields:

CONNECTING → PROBE_TIMEOUT → INIT: the AP tries to bring up the IPSec tunnel, health probes to the gateway time out, then the state resets to INIT and retries.

TUN_RECV_TIMEOUT: the AP stops receiving tunnel keepalives/packets from the gateway within the expected interval.

SURVIVING indicates the AP is maintaining service with an already-up tunnel while control connectivity is impaired; it is not the state shown at the end here.

In the log, AP-01 repeatedly cycles through CONNECTING → PROBE_TIMEOUT → INIT, with intermittent TUN_RECV_TIMEOUT. This pattern is the documented symptom of the gateway being unreachable or down (no response to probes/keepalives), rather than a Central/orchestrator outage or PMTU problem.

Therefore, the correct conclusion is that the gateway at 192.168.1.92 is offline or not reachable.

A is incorrect: the final/recurring state is not SURVIVING.

C is incorrect: a Central/orchestrator issue would show SURVIVING (existing tunnel continues) rather than repeated probe timeouts to the gateway.

D is incorrect: PMTU issues do not generate recurring PROBE_TIMEOUT/TUN_RECV_TIMEOUT cycles; they appear as ESP/IKE negotiation problems, not persistent probe loss.

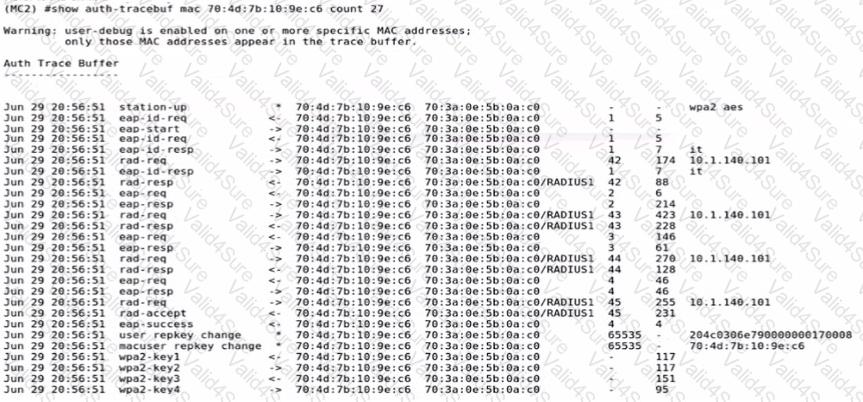

The wireless connection phase that has just been completed is L2 authentication and encryption. This phase includes processes such as the Extensible Authentication Protocol (EAP) exchange, RADIUS requests and responses, and the 4-way handshake which is characteristic of WPA2-AES encryption.

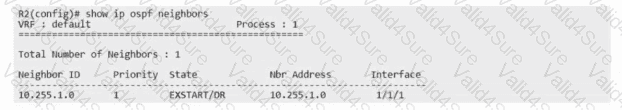

In Aruba AOS-CX, OSPF neighbors that reach EXSTART/EXCHANGE but fail to advance typically indicate a database description (DD) negotiation issue, most commonly caused by an MTU mismatch on the link. The OSPF header carries the interface MTU; if the values do not match, the peer rejects DD packets and the adjacency remains stuck at EXSTART (often shown as EXSTART/DR or EXSTART/BDR).

Aruba’s OSPF guidance states:

“If neighbors remain in EXSTART/EXCHANGE, verify that the Layer-3 MTU matches on both ends of the adjacency. An MTU mismatch causes DD packets to be rejected and prevents the adjacency from reaching FULL.”

Recommended corrective action is to align or remove custom L3 MTU settings on the participating interfaces (or use the mtu-ignore feature where appropriate).

In this scenario, removing the custom Layer-3 MTU configuration so both sides use the same default MTU allows DD packet negotiation to succeed and the adjacency to progress to FULL.

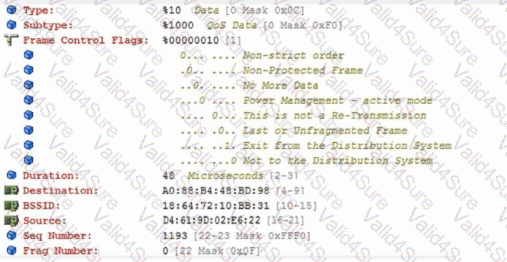

The packet decode excerpt shows a QoS Data frame, not a multicast-control low-rate frame.

Frame control flags indicate:

Subtype: QoS Data → This is unicast, not broadcast/multicast

From DS bit = 1, To DS bit = 0 → Wireless unicast from AP to client

High-rate MCS data present → Indicates optimized transmission speed

This behavior aligns directly with Dynamic Multicast Optimization (DMO).

Aruba DMO Overview — Official Behavior

ArubaOS Wi-Fi optimization guides state:

“Dynamic Multicast Optimization converts multicast packets into unicast transmissions and sends them using the highest supported data rate, improving delivery reliability and efficiency.”

This means:

Before DMO

After DMO

Multicast sent at lowest basic rate (e.g., 6 Mbps)

Converted to unicast → can use high PHY rates (e.g., 300 Mbps+)

High drop probability

Reliable delivery

Poor performance

Optimized throughput

The packet remaining a Data/QoS Data subtype is correct — DMO does not change the 802.11 frame Type field; it changes transmission handling and rate control.

Why the Other Options Are Incorrect

Option

Why Incorrect

A BCMCO does not exist — incorrect feature name

B Type consistency is not the key validation point — rate increase is

D Packet length always appears in frame decode; optimization never hides it

✅ Final Verified Answer: C

The data rate increased from 6 Mbps to 300 Mbps because Dynamic Multicast Optimization (DMO) was configured.

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:

When an AOS-10 gateway is onboarded into Aruba Central using the Full-Setup method, a local admin password is defined during the setup wizard on the gateway itself. Later, when the gateway joins an existing Aruba Central group, the group-level configuration (which includes the admin password defined for that group) is automatically pushed down to all devices in that group for configuration consistency.

However, if the password defined during full-setup is different from the admin password defined in the Aruba Central group, the synchronization process can cause a mismatch between the local device password and the one expected by Central. This mismatch prevents remote console login from working properly because Aruba Central attempts to authenticate to the gateway using the group-level admin credentials, not the local credentials from full-setup.

Exact Extract from HPE Aruba Networking Switching and Aruba Central Configuration Documents:

“During onboarding, the admin password configured at the group level in Aruba Central is applied to all devices in the group. If a device is added using full-setup with a different password, it may fail Central-initiated authentication functions such as remote console.”

“When gateways are provisioned using the full-setup workflow, the local administrator password must match the group-level administrator credentials in Aruba Central to allow remote console and CLI access through Central.”

Therefore, the issue arises because the full-setup password for the gateway does not match the group admin password defined in Aruba Central, resulting in the ‘incorrect password’ error when attempting to access the gateway remotely through Central.

Why the Other Options Are Incorrect:

A. The full-setup admin password is valid for remote access; there is no separate configuration option that “allows” or “disallows” remote console use.

“Remote console access uses the same admin account configured for device login; there is no additional enablement required.”

B. Aruba Central admin passwords do not expire by default. Group-level admin credentials are persistent configuration items, not time-based credentials.

“Local and group administrator passwords are static until manually changed.”

C. There is no “global Aruba Central admin password” used to authenticate to devices; authentication is performed using per-group or per-device credentials configured in Central.

“Each Aruba Central group maintains its own admin credentials that are propagated to member devices; there is no single global password for all groups.”

References of HPE Aruba Networking Switching Documents or Study Guide:

ArubaOS 10.5.0 Gateway Deployment and Configuration Guide – “Onboarding using Full Setup” and “Group-Level Configuration Synchronization.”

Aruba Central Device Management Guide – “Group Admin Credentials and Remote Console Access.”

Aruba AOS 10 Campus Gateway Installation and Setup Guide – “Matching Group Admin Passwords for Central-Managed Devices.”

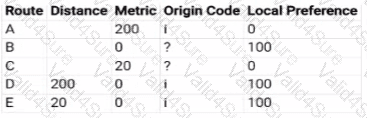

In BGP, the route marked with a ">" symbol is the best route that is chosen based on BGP attributes in the following order: highest weight (Cisco-specific), highest local preference, originated by BGP running on the local router, shortest AS path, lowest origin type, lowest MED, eBGP over iBGP, closest IGP neighbor, and lowest BGP router ID. Based on the table provided, Option E would be marked with a ">" symbol as it has the highest local preference of 100 which is a decisive factor in the BGP best path selection process.
