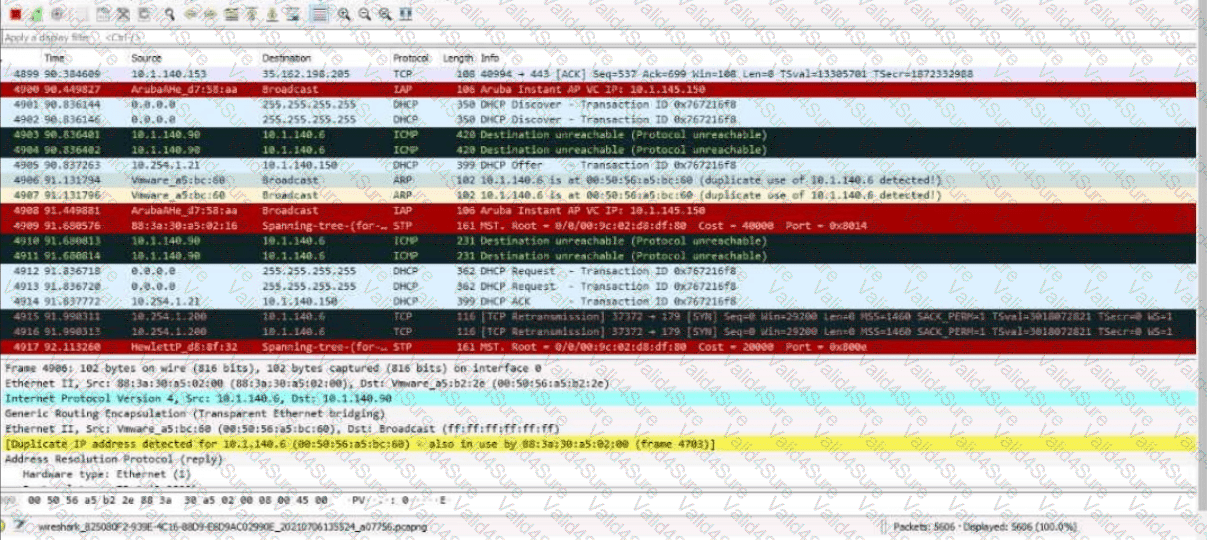

The exhibit reveals duplicate IP addresses detected for 10.1.140.6, associated with two different MAC addresses:

88:56:56:ab:c6:89

88:13:30:a3:02:00

Key observations:

Duplicate IP Address Detection:

The message "Duplicate IP address detected for 10.1.140.6" clearly indicates two devices claiming the same IP address.

This typically occurs when one device spoofs the MAC address of another device to intercept or disrupt traffic.

MAC Spoofing Context:

MAC spoofing is a tactic used to impersonate another device's hardware address to gain unauthorized access to a network.

By spoofing a legitimate IP-MAC pairing, an attacker can bypass security mechanisms or cause denial-of-service conditions.

Why the Other Options are Incorrect:

Option B (Mirroring Misconfigured): While mirroring misconfiguration can duplicate traffic, it does not lead to a "duplicate IP detected" alert.

Option C (Misconfigured DHCP): Misconfigurations usually result in DHCP conflicts, but they do not typically involve two different MAC addresses for the same IP.

Option D (ARP Poisoning/MITM): ARP poisoning involves falsified ARP tables, but it does not directly trigger duplicate IP address detection. Instead, ARP packets flood the network.

Conclusion:

The evidence strongly suggests MAC spoofing, as two different MAC addresses are claiming the same IP address (10.1.140.6). This behavior is typical of attempts to gain unauthorized access or disrupt network operations.

The preferred method for assigning clients to a role on the AOS firewall is to configure HPE Aruba Networking ClearPass Policy Manager (CPPM) to assign the role using a RADIUS enforcement profile with an Aruba-User-Role VSA (Vendor-Specific Attribute). This method allows ClearPass to dynamically assign the appropriate user roles to clients during the authentication process, ensuring that role-based access policies are consistently enforced across the network.

When transitioning from Intrusion Detection System (IDS) mode to Intrusion Prevention System (IPS) mode, it’s critical to review and refine configurations to ensure legitimate traffic is not blocked. Here's the reasoning behind each option:

A. Disable traffic inspection and reboot before re-enabling traffic inspection with the new mode.

Incorrect:

Transitioning to IPS mode does not require a full reboot or disabling traffic inspection.

This step is unnecessary and could lead to downtime that impacts network operations.

B. Change the mode on one gateway at a time to establish a smoother transition period.

Incorrect:

While a phased approach might help in some large deployments, it does not directly address the potential for legitimate traffic to be blocked by IPS mode.

IPS operates in real-time, so misconfigured rules or policies need to be addressed before enabling IPS on any gateway.

C. Consider applying a stricter IPS policy to minimize issues during the transition period.

Incorrect:

A stricter IPS policy increases the likelihood of false positives, which could disrupt legitimate business-critical traffic.

During the transition, the focus should be on minimizing disruptions by fine-tuning policies, not making them stricter.

D. Check for legitimate traffic that has been flagged as a threat and allow list the associated rules.

Correct:

In IDS mode, the system only detects and logs suspicious traffic but does not block it. Reviewing these logs for false positives allows the organization to fine-tune policies and allow list legitimate traffic before transitioning to IPS mode.

By doing this, the company ensures that IPS mode will block actual threats while permitting legitimate traffic.

This is a proactive step to prevent unnecessary disruptions to normal operations when IPS mode is enabled.

References

HPE Aruba Gateway IDS/IPS Configuration Guide.

Best Practices for Transitioning from IDS to IPS Modes in Aruba Networks.

Aruba Network Threat Management Documentation.

Integrating HPE Aruba Networking ClearPass Policy Manager (CPPM) and HPE Aruba Networking ClearPass Device Insight (CPDI) can help a company implement Zero Trust Security by allowing CPDI to use tags to inform CPPM that clients are using prohibited applications. CPPM can then take action, such as telling the network infrastructure to quarantine those clients, ensuring that only compliant and trusted devices have network access.

1.Device Insight Tags: CPDI can monitor client behavior and tag devices that are using prohibited applications.

2.Policy Enforcement: CPPM can use these tags to apply specific enforcement actions, such as quarantining non-compliant devices.

3.Zero Trust Implementation: This integration supports Zero Trust Security by ensuring that all devices are continuously monitored and controlled based on their behavior and compliance with security policies.

To ensure that the correct profiles apply after client attributes are updated based on Syslog messages, you should tune the Change of Authorization (CoA) delay on the ClearPass servers to a value of 5 seconds or greater. This delay allows sufficient time for the attribute updates to be processed and for the reauthentication to occur correctly, ensuring that the updated profiles are accurately applied to the clients.

1.CoA Delay: Adjusting the CoA delay ensures that the system has enough time to update client attributes and reauthenticate them properly before applying new profiles.

2.Profile Accuracy: This delay helps in preventing premature reauthentication and ensures that the most recent attribute updates are considered when applying profiles.

3.System Synchronization: Ensures synchronization between the attribute update and the reauthentication process.

To block all clients connected through HPE Aruba Networking Central-managed APs from accessing YouTube, you should enable DPI (Deep Packet Inspection) and then create application rules to deny YouTube on the firewall roles. DPI allows the network to inspect and classify traffic based on application signatures, making it possible to enforce application-specific policies. By creating rules that specifically block YouTube traffic, you can effectively prevent clients from accessing the service.

When establishing a cluster of HPE Aruba Networking ClearPass servers, it is recommended to install a CA-signed certificate for HTTPS on the Subscriber before it joins the cluster. This ensures secure communication between the servers in the cluster and provides a trusted certificate for client connections.

1.HTTPS Security: A CA-signed certificate for HTTPS ensures that all web-based communication to and from the ClearPass server is encrypted and secure.

2.Cluster Communication: Secure communication between ClearPass nodes in the cluster is essential for synchronization and data integrity.

3.Client Trust: Clients accessing the ClearPass server will trust the CA-signed certificate, avoiding security warnings and ensuring smooth operations.

TACACS+ Enforcement Profile:

The profile specifies a Service Attribute under Aruba:Common with:

Name: Aruba-Admin-Role

Value: operators

AOS-CX Role Mapping:

On Aruba AOS-CX switches, the Aruba-Admin-Role attribute maps the authenticated user to predefined roles:

operators: Operator-level privileges (read-only access, limited commands).

administrators: Full administrator privileges.

Other roles like auditors may exist based on configuration.

Analysis:

The value operators explicitly maps the user to operator-level privileges, granting read-only access to the AOS-CX switch.

Since the Aruba-Admin-Role is correctly set and recognized, the switch assigns the appropriate role without errors.

Option Breakdown:

Option A: Correct. The switch assigns operator-level privileges based on the Aruba-Admin-Role value.

Option B: Incorrect. Administrator-level privileges require the role value to be administrators.

Option C: Incorrect. The manager is successfully authenticated and authorized; there is no error.

Option D: Incorrect. There is no reference to an auditor role in the configuration shown.

Conclusion:

The operators value in the TACACS+ enforcement profile ensures that the manager is assigned operator-level privileges on the AOS-CX switch.
