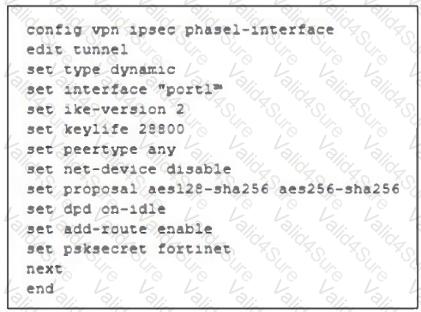

This IPsec Phase 1 configuration defines a dynamic VPN tunnel that can accept connections from multiple peers. The settings chosen here suggest a configuration optimized for networks with intermittent traffic patterns while ensuring resources are used efficiently.

Key configurations and their impact:

● set type dynamic → This allows multiple peers to establish connections dynamically without needing predefined IP addresses.

● set ike-version 2 → Uses IKEv2, which is more efficient and supports features like EAP authentication and reduced rekeying overhead.

● set dpd on-idle → Dead Peer Detection (DPD) is triggered only when the tunnel is idle, reducing unnecessary keep-alive packets and improving resource utilization.

● set add-route enable → FortiGate automatically adds the route to the routing table when the tunnel is established, ensuring connectivity when needed.

● set proposal aes128-sha256 aes256-sha256 → Uses strong encryption and hashing algorithms, ensuring a secure connection.

● set keylife 28800 → Sets a longer key lifetime (8 hours), reducing the frequency of rekeying, which is beneficial for stable connections.

Because DPD is set to on-idle, the tunnel will not constantly send keep-alive messages but will still ensure connectivity when traffic is detected. This makes the configuration ideal for networks with regular but non-continuous traffic, balancing security and resource efficiency.

In this scenario, the corporate network and the new remote office network need to communicate over the Internet, which requires a secure and dynamic routing method. Since both networks are using OSPF (Open Shortest Path First) as the routing protocol, the best approach is to establish an OSPF over IPsec VPN to ensure secure and dynamic route propagation.

OSPF is already running on the corporate network, and extending it over an IPsec tunnel allows dynamic route exchange between the corporate FortiGate and the remote office FortiGate. IPsec provides encryption for traffic over the Internet, ensuring secure communication. OSPF over IPsec eliminates the need for manual static routes, allowing automatic route updates if networks change.

The new remote office ' s 192.168.1.0/24 subnet will be advertised dynamically to the corporate network without additional configuration.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

Standard communication between two Virtual Domains (VDOMs) on the same FortiGate is typically handled by a " VDOM link, " which is a virtual interface pair processed by the CPU. However, for high-bandwidth environments where low latency is critical, Fortinet provides NPU vlinks (Network Processing Unit virtual links).

NPU vlinks are a specific type of hardware-accelerated virtual interface that resides directly on the Network Processor (NP6, NP7, etc.). By using NPU vlinks instead of standard software-based VDOM links, traffic between VDOMs can be offloaded to the NPU hardware, which provides significantly higher throughput and near-zero latency by bypassing the FortiGate ' s main CPU entirely. This is the standard recommendation for accelerating " East-West " traffic in a segmented data center or campus environment.

==============

Standard certificate inspection (which relies on the SNI) only identifies the destination domain; it does not allow the FortiGate to see the actual content of the encrypted session. As noted in the lab documentation, " certificate inspection on its own does not help HQ-DCFW to see the encrypted traffic " . To identify and block malware hidden within HTTPS traffic, the FortiGate must be configured with full SSL inspection (also known as deep inspection). This process involves the FortiGate acting as a man-in-the-middle to decrypt the packets, scan the payload for threats using the applied security profiles (like Antivirus or IPS), and then re-encrypt the traffic before sending it to the host. Without full decryption, the unit " will not decrypt packets to analyze if there is a possible attack, " allowing malware to bypass security layers.

==============

FortiManager uses a feature called per-device mapping (also referred to as dynamic mapping) to manage environments where different FortiGate devices require different values for the same object name. For example, an address object named " LAN " might represent 172.16.0.0/24 on one device and 192.168.0.0/24 on another.

When an administrator views the policy package in the FortiManager GUI, they see the common object name used across the ADOM. However, the reinstall preview generates the actual CLI commands that will be pushed to the specific FortiGate unit. This preview reflects the specific mapped value or name defined for that individual device, which is why the names or values may appear different from the generic policy view.

==============

Applying an aggressive IPS profile without prior testing can disrupt legitimate applications by incorrectly identifying normal traffic as malicious. To prevent disruptions while still monitoring for threats:

● Enable IPS in " Monitor Mode " first:

● This allows FortiGate to log and analyze potential threats without actively blocking traffic.

● Administrators can review logs and fine-tune IPS signatures to minimize false positives before switching to blocking mode.

● Verify and adjust signature patterns:

● Some signatures might trigger unnecessary blocks for legitimate application traffic.

● By analyzing logs, administrators can disable or modify specific rules causing false positives.

When standardizing the deployment of FortiGate devices across branches using FortiManager, the best practice is to use metadata variables. This allows for dynamic interface configuration while maintaining a single, consistent policy package for all branches.

● Metadata variables in FortiManager enable interface roles and configurations to be dynamically assigned based on the specific FortiGate device.

● This ensures scalability and consistent security policy enforcement across all branches without manually adjusting interface settings for each device.

● When a new branch FortiGate is deployed, metadata variables automatically map to the correct physical interfaces, reducing manual configuration errors.

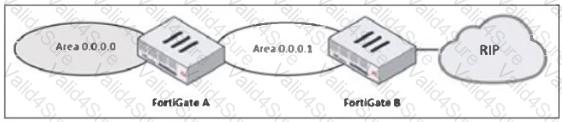

The diagram shows a multi-area OSPF network where:

● FortiGate A is in OSPF Area 0 (Backbone area).

● FortiGate B is in OSPF Area 0.0.0.1 and is connected to an RIP network.

To ensure that OSPF Area 0 (0.0.0.0) learns routes from the external RIP network, FortiGate B must redistribute RIP routes into OSPF.

Steps to achieve this:

1. Enable route redistribution on FortiGate B to inject RIP-learned routes into OSPF.

2. This allows OSPF Area 0.0.0.1 to forward RIP routes to OSPF Area 0 (0.0.0.0), making the external network visible.
