Connectivity management requires a proper logical-to-physical mapping within the BIG-IP Control Plane.

VLAN Association : In TMOS, a Self IP address is not assigned directly to a physical interface. Instead, it is assigned to a VLAN (Virtual Local Area Network) object.

Procedural Troubleshooting : If a Self IP is unreachable, the primary failure point is often that the IP was associated with the wrong VLAN, or the VLAN itself is not correctly associated with the intended physical interface or trunk.

Layer 2 Mapping : The Control Plane requires the VLAN to be " up " and " untagged " or " tagged " on a valid interface for traffic to flow. If the administrator selects the incorrect VLAN, the Self IP will exist in the configuration but will be logically isolated from the physical network wire.

On BIG-IP systems, SSH access restrictions are configured under the /sys sshd object. The allow property defines the IP addresses or networks permitted to connect to the management interface using SSH .

The list command is used to display the current configuration settings.

Therefore, tmsh list /sys sshd allow correctly displays the configured allowed IP ranges.

Why the other options are incorrect:

A (show) displays runtime or statistical information, not configuration values.

C and D incorrectly reference /etc/hosts.allow; BIG-IP manages SSH access through TMSH objects, not by directly listing host files in this context.

Managing the license is a primary Control Plane task required to activate software modules and features on a BIG-IP device.

License Management Utility : All actions related to the device license, including initial activation, renewal, and adding add-on keys, are performed under the System > License section of the Configuration Utility.

Procedural Requirements : Licensing often requires the generation of a " dossier, " which is a unique encrypted string used by the F5 License Server to generate the final license file.

Impact on Services : Updating or re-activating a license generally requires a restart of system services (such as the tmm daemon), which will temporarily disrupt traffic processing unless performed on a standby unit in a high availability pair.

Add-on Licenses : If an administrator needs to increase the capacity of a specific module (like increasing the SSL TPS limit or adding a new module like ASM), the new registration keys are entered through this same interface using the " Re-activate " button.

To determine the current failover (HA) status of a BIG-IP system using tmsh, F5 documentation explicitly states that the administrator should use the following command:

show /cm failover-status

This command displays:

The current failover state (active, standby, or offline)

Detailed failover status information

The operational HA condition of the device within a device group

According to F5 Knowledge Base Article K08452454, the documented procedure for checking failover status is:

Log in to the TMOS Shell (tmsh)

Run show /cm failover-status

Why the other options are incorrect:

A. list /cm failover shows configuration settings, not operational HA status.

B. show /sys failover is not the documented command for checking current failover status and does not align with F5’s recommended procedure.

Managing how a BIG-IP communicates with external management services like Syslog is a core Control Plane task. The Configuration Utility organizes these settings under the " System " menu. Specifically, to define remote logging destinations and formats, the administrator must navigate to System > Logs > Configuration to ensure the Control Plane correctly forwards system events to external collectors

Maintaining an accurate and synchronized clock across all members of a device group is a fundamental requir5ement for the BIG-IP Control P6lane to establis7h and maintain device tru8st9.

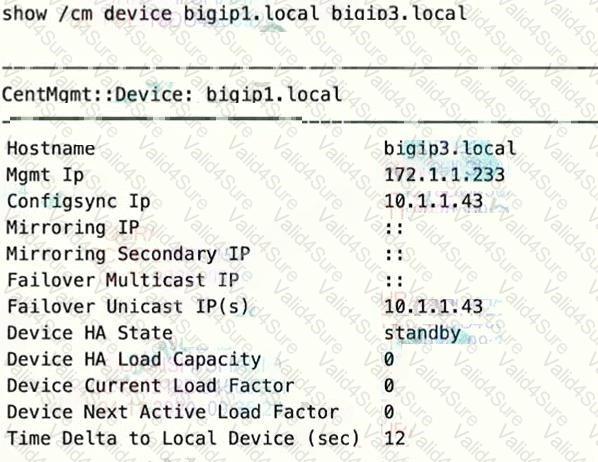

Time Delta Impact : As shown in the exhibit, the " Time Delta to Local Device (sec) " is 12 .

Trust Mechanism : Device trust relies on secure certificate-based communication (SSL/TLS) . If the time difference between devices is too large (typically more than a few seconds), the Control Plane cannot validate the certificates, leading to a failure in the trust relationship .

ConfigSync Failure : When device trust is broken due to time drift, the systems cannot verify the identity of the peer, which directly prevents the ConfigSync process from executing on the affected device, such as bigip3.local in this scenario.

Resolution : Administrators must ensure that all devices in a high availability pair are configured to use the same reliable NTP servers to keep their system clocks aligned.

The correct command for restoring an encrypted UCS archive via the command line is D. load /sys ucs <</b> filepath > passphrase <</b> password > .
