On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE). When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks .

Key concepts involved:

Interfaces A single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.

Trunks (Link Aggregation) A trunk combines multiple physical interfaces into a single logical interface.

BIG-IP supports LACP and static trunks.

Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy .

VLANs are then assigned to the trunk , not directly to individual interfaces.

Why option B is correct:

Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.

This increases total available bandwidth (for example, two 10Gb interfaces → up to 20Gb aggregate capacity).

This is the documented and supported method for scaling bandwidth on BIG-IP.

Why the other options are incorrect:

A. Increase the MTU MTU changes affect packet size and efficiency, not total bandwidth capacity .

C. Assign two interfaces to the VLAN BIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk .

D. Set the media speed manually Media speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.

Conclusion:

To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.

The appropriate configuration for emulating conventional stateless IP routing is a Forwarding (IP) virtual server using a FastL4 profile .

A Forwarding (IP) virtual server does not select an application-server pool in the normal load-balancing sense. Instead, BIG-IP forwards the packet toward the destination address originally specified by the client and uses the system ' s routing table to determine the serverside path. This makes the Forwarding (IP) virtual server the BIG-IP virtual-server type designed to provide router-like Layer 3 forwarding behavior.

BIG-IP processing is inherently stateful, so to approximate stateless router behavior, F5 uses specific FastL4 profile settings with the IP forwarding virtual server. FastL4 is supported with Forwarding (IP) virtual servers and provides efficient Layer 4 packet processing.

Option C is deceptive. BIG-IP does have a virtual server type called Stateless , but F5 documents that this type applies specifically to UDP traffic , requires a default pool, and has significant configuration restrictions. It is therefore not the general mechanism used to emulate stateless IP routing.

A Standard virtual server performs full-proxy processing, while Performance (Layer 4) is primarily used for high-performance Layer 4 application delivery and can use pools. Neither is the intended router-emulation configuration.

Study Guide References/Topics: Forwarding (IP) Virtual Servers; FastL4 Profile; Routing Table Processing; Stateful versus Stateless Forwarding; Virtual Server Types.

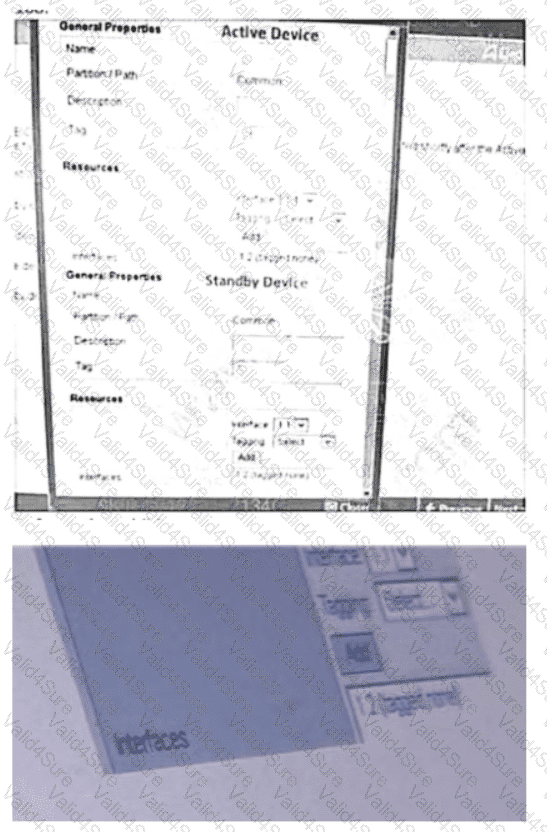

The primary distinction between Activ 41 e and Standby units revolves around which unit is currently processing traffic.

Traffic Objects (C & E): The unit in the 43 Active state is the only one that answers ARP requests for Virtual Server addresses and Floating Self-IPs . The Standby unit remains " quiet " for these addresses to avoid IP conflicts on the network.

Monitors (A - False): Both the Active and Standby units perform health monitors on pool members by default. This ensures that the Standby unit is ready to take over with an up-to-date view of the pool ' s health.

Failover (B - False): A failover trigger (like a VLAN fail-safe) causes the Active unit to go Standby and the Standby unit to go Active; it affects both.

Management (D - False): Configuration changes can technically be made on either unit (though it is best practice to make them on the Active unit) and then synchronized to the peer.

In the Traffic Management Shell (TMSH), there is a distinct difference between list and show commands.

List Command : Used to view the configuration of an object (what is stored in the config file). list net route would show you the static routes you have manually configured.

Show Command : Used to view the status, statistics, and real-time state of an object.

TMM Routes : Because the routing table (RIB/FIB) is a dynamic entity that includes both static routes and learned routes (such as those from a routing protocol or connected subnets), the show net route command is required to see the active routing table as it exists in the Traffic Management Microkernel (TMM).

Key Command Breakdown :

show net route: Displays the active TMM routing table, including destination, gateway, and the status of the route.

Configuring networking objects in BIG-IP requires using the correct TMSH module path and verb .

Module Path: Trunks are networking objects, so they reside under the /net module, not /sys.

Verb: Since the trunk already exists, the modify verb must be used to update its properties rather than create.

Syntax: The correct syntax to append physical interfaces to an existing trunk is tmsh modify /net trunk [name] interfaces add { [port list] }.

Data Plane Impact: Adding interfaces to a trunk (Link Aggregation) increases the total aggregate bandwidth available to the system and provides additional hardware redundancy.
