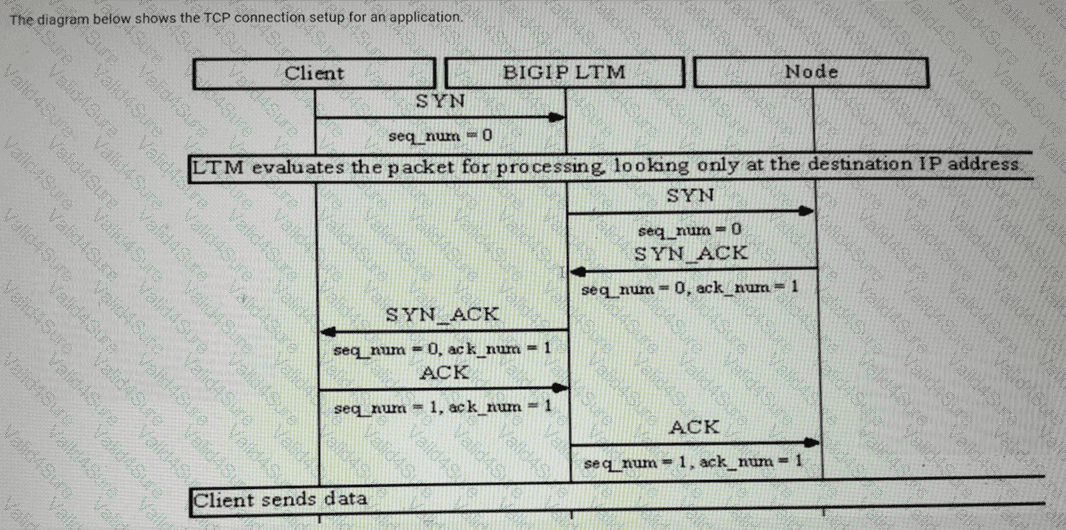

The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as aForwarding (IP) virtual serverare as follows:

Initial Packet Processing: The diagram explicitly states that the LTM evaluates the packet lookingonly at the destination IP address. This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system's routing table to make forwarding decisions instead of load balancing to a pool of members.

Handshake Sequence: Unlike aStandardvirtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK)beforeinitiating a separate connection to the server, the Forwarding IP virtual server passes the client's originalSYNpacket directly to the destination node.

Response Timing: The BIG-IP system waits for theSYN-ACKfrom the destination node before it sends a SYN-ACK back to the client. It essentially "passes through" the handshake signals while still maintaining a state entry in the connection table to track the flow.

Packet-by-Packet Logic: While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.

Why other options are incorrect:

Standard virtual server: A Standard virtual server is a "full proxy." It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.

Stateless virtual server: A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.

The BIG-IP processing flow follows a specific sequence of events as a packet moves through the system.

TCP Handshake:Before any application-layer data (like HTTP) can be processed, a TCP connection must be established.

The First Event:The very first event triggered when a client completes the 3-way handshake with the virtual server isCLIENT_ACCEPTED.

Profile Influence:Even if an HTTP profile is attached, the system must first "accept" the connection at the protocol level. HTTP_REQUEST only triggersafterthe client sends data that the BIG-IP recognizes as a valid HTTP request. If a client connects but never sends a request, CLIENT_ACCEPTED will have fired, but HTTP_REQUEST will not.

6

TheEnd7User Diagnostics (EUD)utility is a software tool designed to test the hardware components of a BIG-IP system. Because the EUD must run when the standard Traffic Management Microkernel (TMM) and Operating System (TMOS) are not fully loaded (especially in "fail to boot" scenarios), it is accessed at the boot level.

Access Requirements:To run the EUD, the administrator must reboot the BIG-IP system and select the EUD option from theGRUB boot menu. Because the network interfaces (Internal, External, and Management) require a running operating system and drivers to function, they are unavailable during this pre-boot phase.

The Console Port:TheConsole Portprovides a direct out-of-band serial connection to the hardware's BIOS and bootloader. This is the only interface that allows an administrator to interact with the system during the early stages of the power-on self-test (POST) and boot sequence to initiate diagnostic tests.

Purpose:The EUD performs a series of tests on the CPU, memory, hard drives, and physical interfaces to identify hardware-level failures before the data plane is even initialized.

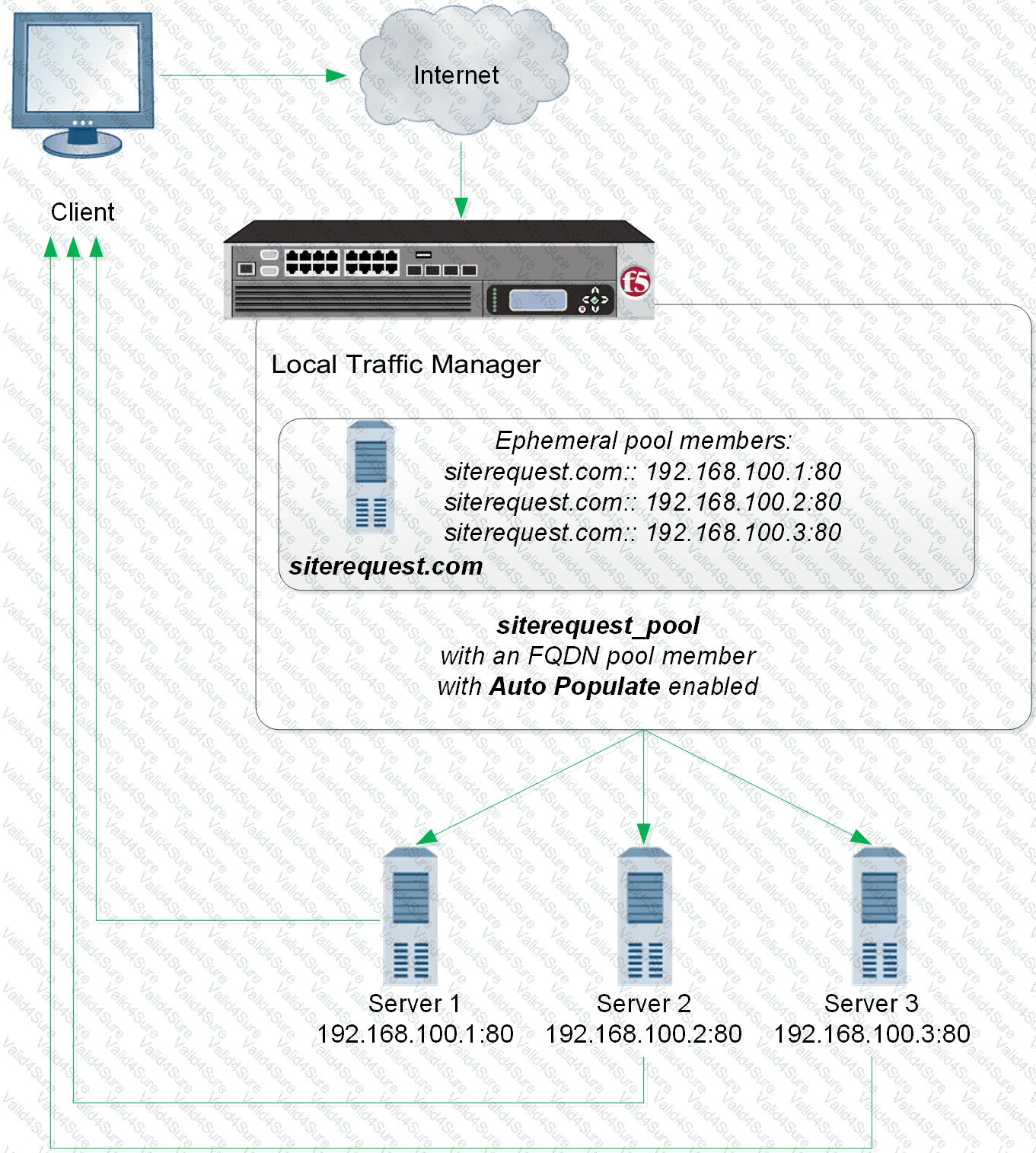

This question focuses onconnection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.

What problem is being solved?

When a pool member:

Recovers from a failure

Is enabled after maintenance

Transitions frominactivetoactive

…it can suddenly receive alarge burst of new connections, especially when using load-balancing methods such asLeast Connections. This sudden surge can overload the server.

Why Slow Ramp Time is the correct solution:

Slow Ramp Timeis a pool-level setting that:

Gradually increases the number of connections sent to a newly available pool member

Prevents sudden spikes in traffic

Allows the server to warm up (application cache, JVM, DB connections, etc.)

From BIG-IP Administration Data Plane Concepts:

Slow Ramp Time controls therate at which BIG-IP increases loadto a pool member that has just become available

During the ramp period, BIG-IP artificially increases the member’s connection count, making it appear “busier” and therefore less attractive for new connections

This directly satisfies the requirement toavoid overloading pool members when they become active.

Why the Other Options Are Incorrect:

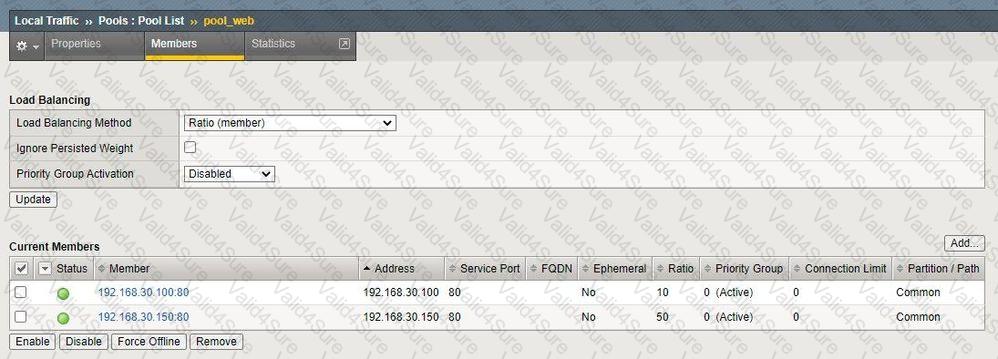

B. Different Ratio for each member

Ratios controlrelative distributionunder normal operation

They do not prevent a sudden surge when a member becomes active

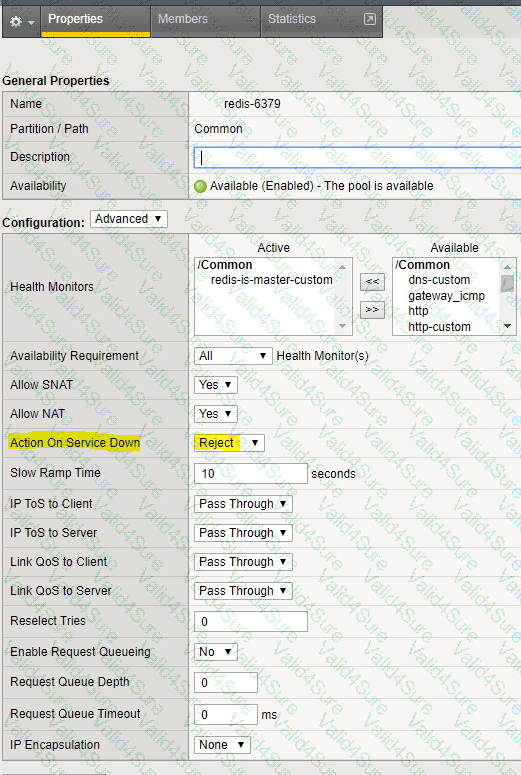

C. Action On Service Down to Reselect

Controls persistence behavior when a member goes down

Has no impact on connection ramp-up when a member comes back online

D. Same Priority Group to each member

Affects failover logic between priority groups

Does not control connection rate or ramp-up behavior

Key Data Plane Concept Reinforced:

To protect backend servers during recovery events, BIG-IP providesSlow Ramp Time, ensuringgraceful reintroduction of trafficand preventing connection storms that can occur during high-load scenarios.

===========

SNAT Automapis a feature that automatically selects a self-IP address to use as the source address for translated packets. The selection logic follows a strict hierarchy to ensure that traffic is routable back to the BIG-IP:

Egress VLAN Priority:The BIG-IP first looks at the VLAN through which the traffic is exiting toward the pool member (the egress VLAN).

Floating Self-IP Preference:If the egress VLAN has afloating self-IP address, the BIG-IP will always prefer it for SNAT Automap. This is critical for High Availability (HA) because, during a failover, the floating IP moves to the new active device, allowing existing connections to be maintained or correctly timed out.

Non-Floating Fallback:If no floating self-IP is available on the egress VLAN, the system will use a floating self-IP from a different VLAN. If no floating IPs exist at all, it will then fall back to the non-floating self-IP.

Key Data Plane Concept:

The management IP is never used for data plane traffic. In this scenario, since the administrator has configured a floating self-IP, that specific address becomes the source for all SNAT Automap traffic leaving that VLAN to ensure symmetric routing during HA events.

In BIG-IP architecture,link aggregation and redundancyat Layer 2 are implemented usingTrunks, not virtual servers or pools.

According to BIG-IP Administration Data Plane Concepts:

Interfacesare the physical network ports on the BIG-IP device

ATrunkis a logical grouping of multiple interfaces

Trunks can be configured to useLACP (Link Aggregation Control Protocol)to:

Provide link redundancy

Increase aggregate bandwidth

Allow automatic detection of link failures

VLANs are thenassigned to the trunk, not directly to individual interfaces, once aggregation is in place

Correct Design for the Scenario:

To connect BIG-IP totwo upstream switcheswith LACP:

One physical interface from BIG-IP connects toSwitch A

Another physical interface from BIG-IP connects toSwitch B

Both interfaces are placed intothe same trunk

LACP is enabled on the trunk and on the switches

This configuration allows:

Traffic to continue flowing if one interface or switch fails

Proper LACP negotiation between BIG-IP and the upstream switches

Clean separation of responsibilities (Layer 2 handled by trunking, Layer 4–7 by virtual servers)

Why Option D Is Correct:

ATrunk containing an interface connected to each switchis exactly how BIG-IP implements LACP-based interface binding

The trunk handles link state, load distribution, and failover at the data plane

Why the Other Options Are Incorrect:

A & B– Virtual servers operate at Layers 4–7 and have nothing to do with physical link aggregation or LACP

C– VLAN IDs and MAC addresses are not configuredinsidea trunk definition; trunks aggregate interfaces, and VLANs are appliedtotrunks

Key Data Plane Concept Reinforced:

On BIG-IP systems,LACP is always configured on a Trunk, which aggregates physical interfaces to provideLayer 2 resiliency and bandwidth aggregation. Virtual servers and pools are not involved in physical interface binding.

===========

Configuring networking objects in BIG-IP requires using the correctTMSH module pathandverb.

Module Path:Trunks are networking objects, so they reside under the /net module, not /sys.

Verb:Since the trunk already exists, the modify verb must be used to update its properties rather than create.

Syntax:The correct syntax to append physical interfaces to an existing trunk is tmsh modify /net trunk [name] interfaces add { [port list] }.

Data Plane Impact:Adding interfaces to a trunk (Link Aggregation) increases the total aggregate bandwidth available to the system and provides additional hardware redundancy.
