AZ-802 Exam Dumps - Administering Windows Server

Disk1: 2. Disk2: 1.

The requirement is that data on SSPace1 must remain available at all times, meaning the storage pool ' s virtual disks must be able to tolerate physical disk failures without becoming unavailable or losing data. A three-way mirror keeps three copies of every block of data spread across different physical disks, so it remains available and readable even if any two of those disks fail simultaneously; the resiliency is fixed at tolerating two failures regardless of how many total disks (8, in Disk1 ' s case) make up the pool, as long as there are enough disks to support three-way mirroring, which eight comfortably provides. Disk2 uses parity resiliency, which stores a single parity block that can reconstruct data after one physical disk failure; unless dual parity is explicitly configured (which requires being set at virtual disk creation time and is not indicated here), a standard parity virtual disk tolerates only one physical disk failure before data becomes unavailable, regardless of the pool having twelve physical disks. Administrators sometimes assume more disks in a parity pool automatically means more fault tolerance, but the number of disks a parity space can lose is determined by the resiliency configuration (single vs. dual parity), not by the total disk count. Therefore Disk1 tolerates two disk failures and Disk2 tolerates one.

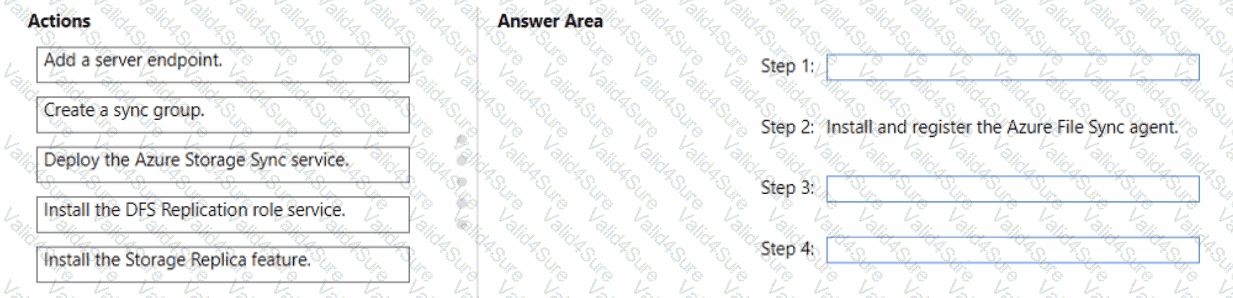

1. Deploy the Azure Storage Sync service. 2. Install and register the Azure File Sync agent. 3. Create a sync group. 4. Add a server endpoint.

Data1 is a file share on VM1 that must be synced to the Azure Files share1 using Azure File Sync. The documented deployment order starts in Azure: you must first deploy a Storage Sync Service resource, because the on-premises agent registration process needs an existing Storage Sync Service to register against. With that resource in place, the next step, already fixed in the sequence, is to install the Azure File Sync agent on VM1 and register the server with the Storage Sync Service, which establishes the server ' s identity and trust relationship with Azure. After registration, you create a sync group, the container that pairs one Azure file share (the cloud endpoint) with one or more on-premises folders (server endpoints); the sync group must exist before endpoints can be attached to it. Finally, you add a server endpoint pointing at the Data1 path on VM1, which starts the actual namespace and content synchronization with share1. Installing the DFS Replication role service and installing the Storage Replica feature are unrelated technologies, DFS-R replicates between on-premises servers and Storage Replica performs block-level volume replication, neither of which is part of an Azure File Sync deployment, so both are correctly excluded from the sequence.

Task1 is an Azure Automation runbook, and Azure Automation supports a specific, limited set of runbook types: PowerShell (and PowerShell Workflow), Python, and Graphical runbooks (which are authored visually rather than in a scripting language). Of the listed options, PowerShell and Python are the two genuine scripting languages Azure Automation lets you author a runbook in directly, making them the two correct answers. Java and JavaScript are not supported runbook languages in Azure Automation; JavaScript is used elsewhere in Azure (for example, in Azure Functions or Logic Apps custom code), but not for Automation runbooks. Bicep is a domain-specific language for declaratively defining Azure infrastructure as code (compiling down to ARM templates) and has no role as an executable runbook language; you would not write a Task1 runbook in Bicep, since runbooks execute imperative logic rather than declare resource deployments. Therefore, Python and PowerShell are the two languages available for Task1.

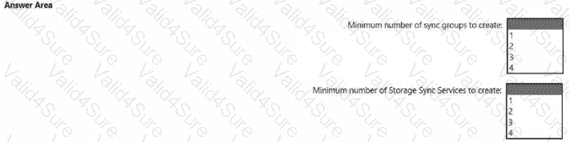

Sync groups: 3. Storage Sync Services: 1.

In Azure File Sync, a sync group defines a single sync topology and can contain exactly one cloud endpoint (one Azure file share) but can contain multiple server endpoints (on-premises server locations) that all sync to that same file share. Fabrikam needs newyorkfiles to sync only to FS1, seattlefiles to sync only to FS2, and companyfiles to sync to both FS1 and FS2. Because each Azure file share can only belong to one sync group, newyorkfiles requires its own sync group with a single server endpoint on FS1, seattlefiles requires its own sync group with a single server endpoint on FS2, and companyfiles requires a third sync group whose one cloud endpoint (companyfiles) has two server endpoints, one on FS1 and one on FS2, which Azure File Sync fully supports within a single sync group. That gives a minimum of three sync groups. A Storage Sync Service is the top-level Azure resource that contains and manages sync groups, and there is no requirement here that forces the shares into separate Storage Sync Service instances (such as differing regions or subscriptions); a single Storage Sync Service can hold all three sync groups. Therefore only one Storage Sync Service is required.

Fabrikam ' s plan is to use Azure Policy to enforce configuration management policies across both its Azure and on-premises servers. Azure Policy ' s guest configuration capability, which evaluates and can remediate in-guest settings, only works against a server that is registered as an Azure resource. For an on-premises or non-Azure server, that registration is achieved by deploying the Azure Connected Machine agent, which onboards the machine as an Azure Arc-enabled server, gives it an Azure resource ID, and makes it a valid target for Azure Policy assignments, including guest configuration policies, in exactly the same way an Azure VM would be. Hybrid joining servers to Microsoft Entra ID affects identity and device management (such as Conditional Access) but does not make a server a valid Azure Policy target. A hybrid runbook worker lets Azure Automation runbooks execute on-premises but is unrelated to Azure Policy enforcement. The Azure Monitor agent collects telemetry into Log Analytics and Azure Monitor but does not register the server as an Arc resource or enable policy assignment on its own; it is typically deployed after Arc onboarding, not instead of it. Deploying the Azure Connected Machine agent is therefore the correct first step.

The requirement states that server administrators must request approval before establishing a Remote Desktop connection to an Azure virtual machine, and that once approved, the connection must be established within a defined two-hour window. This request-approve-then-time-limited-access pattern for a specific management port on an Azure VM is precisely what just-in-time (JIT) VM access, a Microsoft Defender for Cloud capability, provides: it keeps the RDP/SSH management ports closed by default in the network security group, requires an explicit access request, and, once approved, opens the port only for a specified time window and only from the requester ' s source IP. Microsoft Entra Privileged Identity Management provides time-bound, approval-based elevation for Microsoft Entra and Azure RBAC roles, not for opening network ports to a VM, so it does not by itself control Remote Desktop network access. The Remote Desktop extension for Azure Cloud Services is a legacy classic-deployment feature unrelated to this scenario. Azure Bastion provides browser-based RDP/SSH without exposing public IPs but does not implement an approval workflow with a bounded connection window. JIT VM access is therefore the correct, purpose-built solution.

GPO4 is already linked to the VirtualDesktops OU, which contains the Azure Virtual Desktop session host computer accounts, so it is correctly targeted at the right computers. The requirement is that the idle lockout behavior configured in GPO4 must apply to whichever user is signed in to a session host, and that the user must still be able to adjust the lockout time manually from their own client, which means the relevant setting is a per-user configuration item rather than a strict, non-negotiable computer policy. By default, user-configuration settings inside a GPO apply based on the OU containing the user account, not the computer the user signs in to; Fabrikam ' s users are located in the AllUsers OU, which is governed by GPO1, not GPO4. Group Policy Loopback Processing, enabled in GPO4 and set to Merge (to allow the client-side adjustment) or Replace, forces the user-configuration portion of GPO4 to apply to any user who logs on to a computer in the VirtualDesktops OU, regardless of where that user ' s own account resides. Security filtering and the Enforced property both affect who a GPO applies to or its precedence in conflicts, but neither one makes a GPO ' s user-side settings follow the computer instead of the user, so loopback processing in GPO4 is correct.

DC3 is a domain controller for the existing corp.fabrikam.com AD DS forest, deployed into Vnet1 in Azure. Domain controllers rely on AD-integrated DNS for locating other domain controllers, SRV records, and replication, so DC3 needs to host that zone itself, which requires installing the DNS Server role on DC3 and letting it host an AD-integrated copy of the corp.fabrikam.com zone. Azure ' s default virtual-network-provided DNS resolver has no awareness of AD DS records and cannot host or serve an AD-integrated zone, so every resource in Vnet1 that needs to locate the domain (including Azure VMs and DC3 ' s own replication partners) must be pointed at real DNS servers instead. That is accomplished by configuring the custom DNS Servers setting on Vnet1 to reference DC3 (and, once available, DC1 and DC2), which makes all Azure VMs in the virtual network resolve names through the AD-integrated DNS infrastructure rather than the platform resolver. An Azure DNS zone (public) or an Azure private DNS zone are separate, unrelated Azure-native DNS services that cannot host an AD-integrated zone and are not used for this scenario. Installing the DNS Server role on DC3 and pointing Vnet1 at it together satisfy the requirement.
