AZ-802 Exam Dumps - Administering Windows Server

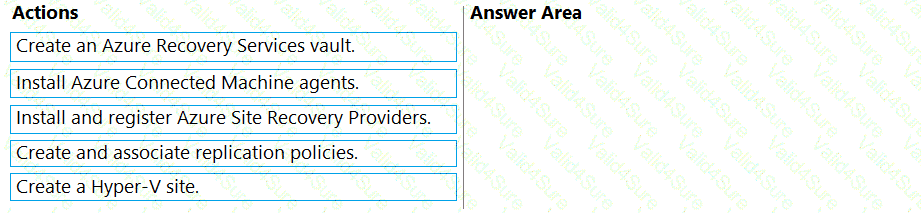

1. Create an Azure Recovery Services vault. 2. Create a Hyper-V site. 3. Install and register Azure Site Recovery Providers. 4. Create and associate replication policies.

Setting up Azure Site Recovery for a Hyper-V cluster that is not managed by Virtual Machine Manager follows a fixed infrastructure-preparation order. An Azure Recovery Services vault must exist first, since it is the container that every later step registers against. A Hyper-V site is then created in that vault to represent the on-premises Hyper-V environment, because a Hyper-V host or cluster must belong to a site before its hosts can be registered against Azure Site Recovery. The Azure Site Recovery Provider is then installed on the Hyper-V hosts (Cluster2 ' s nodes) and registered to that site/vault, which is what actually connects the cluster nodes to Azure Site Recovery. Only once the hosts are registered can a replication policy be created and associated with the Hyper-V site, since a policy has nothing to attach to until the site and its registered hosts already exist. Installing Azure Connected Machine agents is unrelated to Hyper-V VM replication -- that agent is used for onboarding servers to Azure Arc -- and is not part of this workflow. Therefore, the correct order is: create the vault, create the Hyper-V site, install and register the Providers, and create and associate the replication policy.

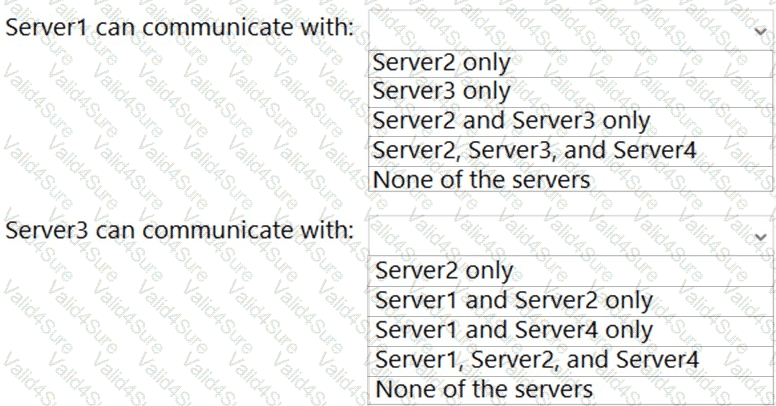

Server1 can communicate with: Server2, Server3, and Server4. Server3 can communicate with: Server1 and Server2 only.

Server4 has no isolation connection security rule configured at all, so it never attempts or performs IPsec authentication with any peer. Server1 ' s rule only requests IPsec in both directions rather than requiring it, meaning that if IPsec negotiation does not occur -- as with Server4, which has no IPsec capability configured -- the connection still falls back to succeed in the clear; Server1 can therefore reach Server2, Server3, and Server4. Server3 ' s rule requires IPsec in both directions, meaning a connection only succeeds if IPsec authentication is actually negotiated. Server3 can successfully negotiate IPsec with Server1 (whose " request " setting means it will still respond to and complete an IPsec negotiation when the peer requires it) and with Server2 (which requires inbound and requests outbound IPsec, and likewise supports negotiation), so both of those connections succeed. Server3 cannot successfully negotiate IPsec with Server4, since Server4 has no IPsec capability configured at all, and Server3 ' s " require " setting blocks any connection that cannot be authenticated via IPsec. Therefore, Server1 can communicate with Server2, Server3, and Server4, while Server3 can communicate with only Server1 and Server2.

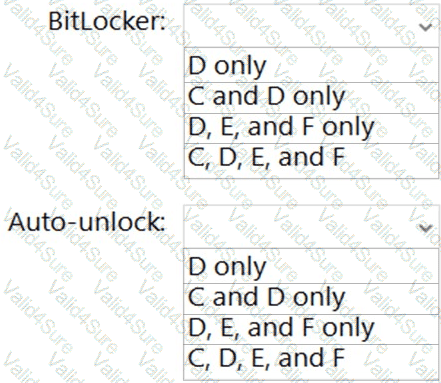

BitLocker: C, D, E, and F. Auto-unlock: D, E, and F only.

BitLocker Drive Encryption can be enabled on every volume shown in Server4 ' s disk configuration -- the NTFS-formatted operating system volume (C:), the NTFS data volume (D:), and the two ReFS-formatted data volumes (E: and F:). BitLocker has no file-system restriction that excludes ReFS: Microsoft ' s ReFS documentation and BitLocker ' s own volume support explicitly confirm that ReFS-formatted volumes, including already-encrypted ones that are later expanded, are fully supported, so E: and F: are just as eligible for BitLocker as the NTFS volumes. BitLocker auto-unlock, however, is a feature limited to fixed data volumes: it lets a data volume unlock automatically at startup using a key protected by the already-unlocked operating system volume, and it is not applicable to the OS volume itself, since the OS volume instead relies on the TPM (or a startup key/PIN) to unlock during boot -- there is no separate outer volume for it to depend on. Because C: is the operating system volume, auto-unlock cannot be configured on it, leaving D:, E:, and F: as the volumes eligible for auto-unlock. Therefore, BitLocker can be turned on for all four volumes (C, D, E, and F), while auto-unlock is available only on the three data volumes (D, E, and F).

Storage Migration Service is designed to migrate a file share such as Share1 to a new server (Server2) while carrying over both the share-level and NTFS folder/file permissions, and it can also perform a cutover of the source server ' s name and IP address if a fully transparent migration is later required. This directly satisfies the requirement to migrate Share1 to Server2 including all the share and folder permissions. File Server Resource Manager (FSRM) only provides quota, file-screening, and storage-reporting capabilities and has no mechanism to migrate data, shares, or permissions between servers. Server Manager is a general-purpose administration console with no dedicated share-migration workflow -- it can be used to create shares manually but cannot transfer existing permissions programmatically. Storage Replica performs block-level volume replication intended for disaster recovery and stretch-cluster scenarios rather than a one-time, permission-preserving share migration to a specific destination server. Therefore, Storage Migration Service is the correct tool to migrate Share1 to Server2 while preserving its share and folder permissions.

Using Hyper-V Replica within a clustered Hyper-V environment such as Cluster3 requires deploying the Hyper-V Replica Broker, which itself runs as a clustered role on the failover cluster; without the Broker, replication cannot follow a protected virtual machine if it live-migrates between Cluster3 ' s nodes, since there would be no single, cluster-aware endpoint tracking which node currently owns each VM ' s replication state. Adding a failover cluster role is exactly how the Hyper-V Replica Broker is deployed onto Cluster3, satisfying the requirement to use Hyper-V Replica to protect Cluster3 ' s virtual machines. Enabling integration services on the virtual machines addresses guest-OS-to-host integration (time synchronization, heartbeat, and similar) rather than providing any replication capability. Adding a generic Windows Server server role does not, by itself, install or configure the Hyper-V Replica Broker -- the Broker must specifically be added as a clustered role through Failover Cluster Manager. Configuring a fault domain for the cluster is not a real Windows Server failover clustering concept and does not provide Hyper-V Replica capability. Therefore, adding a failover cluster role (the Hyper-V Replica Broker) is the correct solution for Cluster3.

The Azure Site Recovery Provider must be installed and registered on every Hyper-V host that is a node of the cluster being protected, because each node is a location the protected virtual machines could reside on after a live migration, and each node must independently be able to track and replicate the VMs it is currently hosting. Cluster2 has four nodes according to the Hyper-V failover clusters table (Cluster1 has six nodes and eighteen virtual machines, Cluster2 has four nodes and twelve virtual machines, and Cluster3 has two nodes and six virtual machines), so a minimum of four Provider installations -- one per node -- is required; installing the Provider on only one, two, or three of the nodes would leave replication unable to follow a protected VM if it live-migrated to whichever node lacks the Provider, breaking continuous replication for that VM the moment it moved. Therefore, four is the minimum number of Azure Site Recovery Provider installations required to fully protect all of Cluster2 ' s virtual machines regardless of which node currently hosts them.

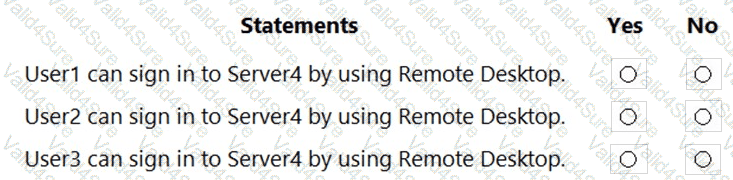

Signing in over Remote Desktop requires a user to hold the " Allow log on through Remote Desktop Services " right and the " Access this computer from the network " right, and to be excluded from any matching Deny counterpart, since an explicit Deny always overrides an Allow granted through any other group membership. User1 is a member of Group2 (granted the Remote Desktop Services logon right) but is also a member of Group4, which is explicitly denied " Access this computer from the network " on Server4 -- that network-access denial blocks the RDP connection outright regardless of the Everyone-based network-access Allow or the RDS logon right, so User1 is denied. User2 belongs only to Group2: Group2 grants the RDS logon right, User2 is covered by the Everyone-based network-access Allow, and User2 is not a member of either Group3 or Group4, so neither Deny applies and User2 can sign in successfully. User3 is a member of Group3, which is explicitly denied " Allow log on through Remote Desktop Services " on Server4 -- that denial blocks the RDP logon right itself, so User3 cannot sign in regardless of network-access rights (and User3 is also in Group4, which independently denies network access as well). Therefore, only User2 can successfully sign in to Server4 using Remote Desktop.

Backing up a standalone Windows Server ' s files, folders, and system state directly to an Azure Recovery Services vault -- exactly what the requirement calls for on Server4 -- is done using the Microsoft Azure Recovery Services (MARS) agent, so installing that agent on Server4 is the necessary first step. Microsoft Azure Backup Server (MABS) is used for application-aware and Hyper-V virtual machine backups rather than direct file/system-state backup of a single standalone server, and while it can also protect servers, it is not the lightweight, direct-to-vault mechanism appropriate for a single standalone server like Server4 and represents unnecessary additional infrastructure. Native Windows Server Backup does not target an Azure Recovery Services vault on its own without additional agent installation, and Storage Replica provides block-level volume replication between servers rather than the point-in-time backup and long-term retention the requirement calls for. Therefore, installing the MARS agent on Server4 is the correct first step to meet this technical requirement.
