The code provides a specific combustible-material exception for qualifying water-resistive barriers , making option D correct. The exterior-protection provisions for Types IV-A, IV-B, and IV-C require the exterior side of mass timber walls to receive noncombustible protection with at least a 40-minute assigned protection time, and components of the exterior wall covering are generally required to be noncombustible.

A water-resistive barrier may be combustible only where it satisfies stringent fire-performance criteria. Among those criteria, the 2021 IBC limits peak heat-release rate and total heat release under ASTM E1354 and establishes flame-spread and smoke-developed limits under ASTM E84 or UL 723. The provision therefore does not create a blanket exemption for arbitrary combustible membranes.

Insulation, exterior cladding, and architectural components forming part of the regulated exterior wall covering must comply with the applicable noncombustibility requirements unless some other express code allowance applies. The WRB is the specifically identified exception tested by this question.

During inspection, product identification and fire-test documentation should be checked rather than assuming that a membrane qualifies merely because it is marketed as a water-resistive barrier.

References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.2.1 and 602.4.3.1; exterior wall protection and qualifying water-resistive barriers.

===============

IBC Table 601, Footnote “a,” permits a one-hour reduction in the required fire-resistance rating of the primary structural frame and bearing walls where those elements support a roof only. Option C is therefore correct.

For Type IV-C construction, the normal Table 601 requirement for bearing walls is two hours. Where a bearing wall qualifies as supporting only roof construction, application of the footnote permits that rating to be reduced from two hours to one hour.

The limitation “supporting a roof only” is critical. The reduction cannot be applied simply because a wall is located at the uppermost occupied level. If the wall carries a floor, mezzanine, transfer load, occupied rooftop structure, or another structural element beyond qualifying roof construction, the condition for the reduction is not satisfied.

Options A and B are not reductions prescribed by Table 601. Option D would effectively eliminate the entire normal two-hour Type IV-C bearing-wall rating, which the footnote does not permit.

For inspection purposes, the approved construction documents and structural load path must substantiate use of the reduction. The fire-protection installation should then be checked against the actual reduced rating specifically authorized by the design.

References/Topics: 2021 IBC Table 601, Footnote “a”; Type IV-C bearing walls supporting roof construction only.

===============

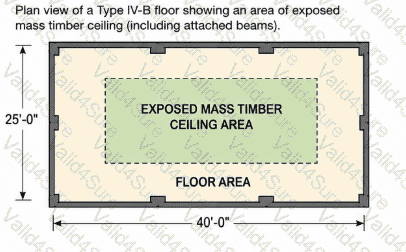

The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section 602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas—including attached mass timber beams—to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.

The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.

The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.

The inspector must additionally determine whether another exposed wall or ceiling region exists nearby. Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.

===============

Option A is the false statement. Under 2021 IBC Table 1705.5.3, bolted connections require periodic special inspection, not continuous special inspection.

The remaining three statements correspond directly to items contained in the table. Concealed connections are subject to periodic inspection. Erection of mass timber construction is also periodically inspected. For threaded fasteners, the inspector must periodically verify the use of pre-drilled holes where the approved design or manufacturer’s installation requirements call for them.

The distinction between periodic and continuous inspection is fundamental. Periodic inspection means the special inspector observes the work at appropriate intervals sufficient to verify compliance. Continuous inspection requires the inspector to be present continuously during the performance of the regulated work. Table 1705.5.3 reserves continuous inspection for the particularly installation-sensitive condition involving adhesive anchors installed horizontally or upwardly inclined to resist sustained tension loads.

For bolted connections, periodic inspection remains technically substantive. The inspector should verify bolt size and type, hole preparation, connection geometry, washers and nuts, required tightening, member condition, edge and end distances, and conformity with the approved structural drawings.

References/Topics: 2021 IBC Section 1705.5.3; Table 1705.5.3, Required Special Inspections of Mass Timber Construction.

===============

Option C is not an IFC requirement. The 2021 IFC requires inspection records to be maintained on-site, but it does not require those records to be secured in a fire- and water-resistant safe.

Section 3303.2 requires the owner to designate a site safety director. Section 3303.3 then makes that director responsible for completing a daily fire safety inspection of the project site. Every day, building and outdoor construction areas must be evaluated against the prescribed fire-safety inspection items.

The results of each inspection must be documented and retained on-site until a certificate of occupancy has been issued . The records must also be immediately available at the site for presentation to the fire code official upon request. Options A, B, and D therefore accurately reflect the code requirements.

The daily inspection program covers practical hazards such as hot work, temporary heating, combustible debris, temporary electrical wiring, hazardous-material storage, fire apparatus access, hydrants, fire department connections, standpipe availability, and portable extinguishers.

For tall mass timber projects, this documentation is particularly important because substantial combustible construction may be present before permanent fire protection systems are complete.

References/Topics: 2021 IFC Sections 3303.2 and 3303.3; site safety director; daily fire-safety inspection and documentation.

===============

The applicable standard is ASTM E119 , making option B correct. IBC Section 703.6 establishes a performance method for determining the number of minutes contributed by noncombustible protection applied to mass timber.

The methodology requires two otherwise identical assemblies to be evaluated using the procedures of ASTM E119 or UL 263 . Test Assembly 1 is tested without the protective covering. Test Assembly 2 incorporates the representative noncombustible protection, including its actual configuration, attachment details, joint treatment, accessories, and other relevant installation conditions. The protection contribution is then calculated by subtracting the fire-resistance time of the unprotected assembly from that of the protected assembly.

ASTM E119 is specifically designed to evaluate fire endurance of building construction and structural assemblies under standardized fire exposure. ASTM D3498, by contrast, is an adhesive specification referenced by the IBC for sealing certain mass timber interfaces. The other standards listed are not the prescribed comparative fire-resistance test for this determination.

References/Topics: 2021 IBC Sections 703.6 and 722.7.1; ASTM E119; UL 263; determination of noncombustible protection time contribution.

===============

ASTM E84 cannot be used to establish the hourly fire-resistance rating of a structural member or assembly. Therefore, option B is correct.

ASTM E84 evaluates surface-burning characteristics , principally flame-spread and smoke-developed indices. Those measurements characterize how a material ' s exposed surface behaves when subjected to the standard tunnel test. They do not demonstrate that a wall, floor, roof, beam, column, or structural assembly will maintain integrity and structural performance for one, two, or three hours.

Fire-resistance ratings are instead established through the methods recognized by the IBC, including standard fire testing—principally ASTM E119 or UL 263—prescriptive rated construction provided by Section 721, and calculated fire-resistance procedures under Section 722. The code also recognizes appropriately documented approved designs and other approved methods within the Section 703 framework.

This distinction is particularly important in mass timber work because ASTM E84 may appear elsewhere in the code for flame-spread limitations on materials, but an acceptable E84 result does not establish structural fire endurance.

The special inspector must determine which approved fire-resistance methodology applies and verify that the installed assembly precisely reflects that design.

References/Topics: 2021 IBC Sections 703, 721 and 722; ASTM E119; UL 263; distinction between fire resistance and ASTM E84 surface-burning testing.

===============

Option B is correct because the required protection time placed over a mass timber structural connection may be established through a code-recognized fire-resistance evaluation of that protective construction under standard fire exposure.

IBC Section 2304.10.1 regulates connections in Types IV-A, IV-B, and IV-C. The code allows connection fire performance to be demonstrated through testing where the connection is incorporated into the fire-resistance test or through an approved engineering analysis. AWC further clarifies that the protection applied over the connection must provide the necessary protection time and that its performance may be established using the methods recognized by IBC Section 703.3, including testing and engineering analysis based on ASTM E119 or UL 263 performance.

Option A is too narrow: testing an isolated fastener does not establish the fire protection of the entire connection. Options C and D also use the wrong temperature location. Where an engineering-analysis route is used, the temperature criterion applies to the connection itself , including connectors, fasteners, and portions of wood incorporated into the structural connection—not simply to the protected structural element or supported member.

References/Topics: 2021 IBC Section 2304.10.1; Section 703.3; AWC guidance on fire resistance of mass timber connections.

===============
