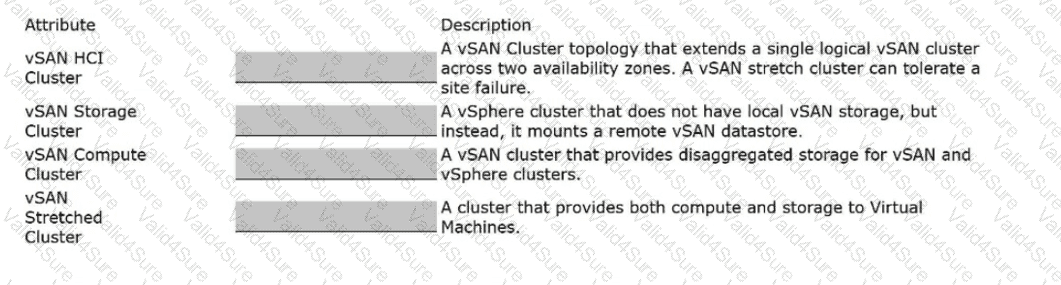

vSAN HCI Cluster = A cluster that provides both compute and storage to Virtual Machines;

vSAN Storage Cluster = A vSAN cluster that provides disaggregated storage for vSAN and vSphere clusters;

vSAN Compute Cluster = A vSphere cluster that does not have local vSAN storage, but instead, it mounts a remote vSAN datastore;

vSAN Stretched Cluster = A vSAN Cluster topology that extends a single logical vSAN cluster across two availability zones. A vSAN stretched cluster can tolerate a site failure.

These mappings describe the primary vSAN storage models used in VMware Cloud Foundation 9.0. A vSAN HCI Cluster is the traditional hyperconverged model where the same cluster provides compute resources and contributes local storage devices to the vSAN datastore for running virtual machines. A vSAN Storage Cluster is a disaggregated storage model based on vSAN ESA; it provides storage capacity and performance to other vSAN or vSphere clusters instead of primarily running workloads itself. A vSAN Compute Cluster is a vSphere cluster that does not contribute local vSAN capacity. Instead, it consumes a remote datastore exported by a vSAN Storage Cluster, enabling compute and storage to scale separately. A vSAN Stretched Cluster extends a single logical vSAN cluster across two availability zones or sites and uses a witness to maintain quorum, allowing workloads to tolerate a full site failure. These distinctions are essential for choosing between HCI, disaggregated storage, remote storage consumption, and availability-zone resilience. Reference topics: vSAN HCI Cluster, vSAN Storage Cluster, vSAN Compute Cluster, vSAN Stretched Cluster, VCF Storage Models.

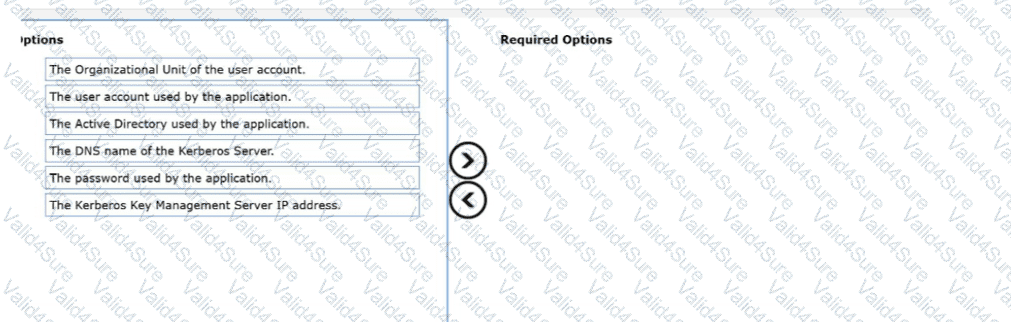

The user account used by the application.

The Active Directory used by the application.

The password used by the application.

NFSv4.1 with Kerberos requires identity integration through Active Directory and a valid Kerberos-capable user credential. In vSphere, Kerberos authentication for NFS 4.1 uses Active Directory credentials so ESX can authenticate securely when mounting Kerberos-protected NFS datastores. The required inputs are the Active Directory domain, the user account, and the password associated with that account. The storage guide also states that when several ESX hosts access the same NFS 4.1 datastore, all hosts must use the same Active Directory credentials to ensure consistent access. The Organizational Unit is not the required credential element for datastore mounting. The DNS name of a Kerberos server may be resolved through Active Directory and DNS infrastructure, but it is not one of the required configuration values selected here. A “Kerberos Key Management Server” is not part of the vSphere NFSv4.1 Kerberos datastore configuration model. Therefore, the required options are the application’s user account, its Active Directory, and the account password. Reference topics: NFSv4.1 Datastores, Kerberos Authentication, Active Directory Credentials, Kerberos Security for NFS.

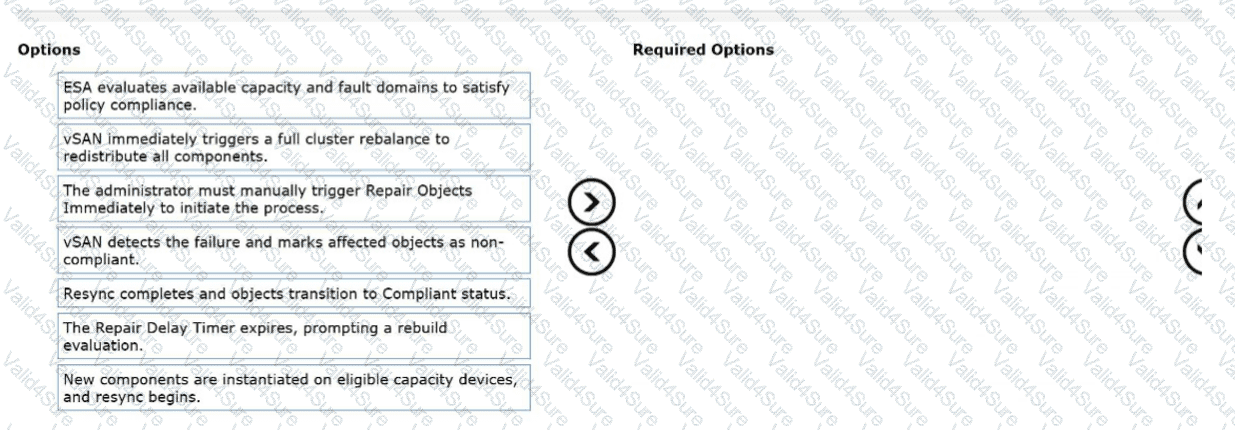

ESA evaluates available capacity and fault domains to satisfy policy compliance.

vSAN detects the failure and marks affected objects as non-compliant.

Resync completes and objects transition to Compliant status.

New components are instantiated on eligible capacity devices, and resync begins.

A failed NVMe device in a vSAN ESA cluster is handled as a storage pool device failure. vSAN first detects the failure and marks affected objects as non-compliant when their assigned storage policy requirements are no longer satisfied. ESA then evaluates available capacity and fault domains to determine whether replacement components can be placed in a way that restores compliance. If sufficient placement resources exist, vSAN creates new components on eligible capacity devices and begins resynchronization. After the resync completes, the affected objects transition back to Compliant status. The Repair Delay Timer is primarily associated with absent components, such as a host or device that may return, and is not the required step for a permanent NVMe failure. The administrator does not have to manually trigger Repair Objects Immediately for the normal automatic repair process. A full cluster rebalance is separate from repair and is not performed before rebuilding missing or degraded components. Reference topics: vSAN ESA Storage Pool Device Failure, Object Compliance, Automatic Reprotection, Resynchronization.

The device has already been claimed by vSAN, so it is now part of the vSAN ESA storage pool. It must be removed from vSAN through a controlled device-removal workflow before it can be repurposed for memory tiering. The correct method is to remove the device from vSAN using Full Data Migration. This evacuation mode migrates data from the device to other eligible devices or hosts so that objects remain protected and compliant where possible. After the device is safely removed from the vSAN storage pool, it can be configured for memory tiering. Physically removing or hot-removing the device is unsafe because vSAN may still have components on it. Booting without the device is also not a supported configuration workflow. Changing disk claiming behavior and rebooting does not safely remove existing components from the already claimed device. vSAN ESA uses a storage pool model, so claimed NVMe devices contribute capacity and performance; a device intended for another purpose must be explicitly evacuated and removed before reuse. Reference topics: vSAN ESA Storage Pools, Device Claiming, Remove Storage Pool Device, Full Data Migration, Memory Tiering.

The direct action is to convert the latency-sensitive OLTP workload policy from RAID-5/6 erasure coding to RAID-1 mirroring while keeping FTT=1. RAID-5/6 provides space efficiency, but it introduces parity operations and additional backend I/O, which can increase write latency during peak transactional activity and resynchronization. VMware states that RAID-1 mirroring requires fewer I/O operations to the storage devices and can provide better performance; cluster resynchronization also completes faster with RAID-1. This directly addresses the observed symptom: resync I/O and backend congestion increasing latency despite adequate network bandwidth. Increasing Object Space Reservation to 100% changes capacity preallocation but does not remove parity overhead or reduce write amplification from erasure coding. Increasing FTT to 2 with RAID-5/6 would increase protection overhead and backend work, making latency worse. Disabling checksums is not valid for ESA because object checksum is always enabled and cannot be deactivated. For ESA, compression can be controlled by policy, but the most direct protection-compliant performance action is RAID-1 FTT=1 for OLTP objects. Reference topics: vSAN Storage Policies, RAID-1 Mirroring, RAID-5/6 Erasure Coding, vSAN ESA Checksum, Resync and Congestion Metrics.

In vSAN ESA, the observed three disk stripes are expected behavior for objects using RAID-1, even when the storage policy shows “Number of disk stripes per object = 1.” The vSAN policy rule defines the minimum number of capacity devices across which each replica of an object is striped, and the default value is 1. However, VMware documentation explicitly notes that objects in a vSAN ESA cluster with RAID-0 or RAID-1 configuration have 3 disk stripes, even if the default storage policy defines only 1 disk stripe. Therefore, the three stripes are not caused by site mirroring itself, nor by the VM having three objects. Site mirroring controls placement across the preferred and secondary sites in a stretched cluster, while Failures to tolerate with RAID-1 controls local host/device protection. The behavior is also not evidence that a VM-level policy override exists. The datastore-level policy can still be applied correctly; ESA’s internal RAID-1 object layout uses three stripes as part of its optimized storage architecture. Reference topics: vSAN ESA Default Storage Policy Characteristics, Number of Disk Stripes per Object, RAID-1 Mirroring, vSAN Stretched Cluster Storage Policies.

Linked clone is the correct feature because the administrator needs to test a potentially destructive change without directly modifying the production VM. vSAN Data Protection uses native vSAN ESA snapshot technology to protect virtual machines through protection groups and scheduled snapshots. Beyond simple restore operations, vSAN Data Protection supports clone workflows that allow a VM to be created from a protected snapshot for development, validation, testing, or recovery use cases. A linked clone is especially appropriate because it can be created quickly from an existing snapshot while maintaining dependency on the base snapshot, avoiding the time and capacity impact of a full independent copy. Immutable snapshots protect recovery points from deletion or modification, but they do not themselves provide an isolated test VM. Multiple schedules only control snapshot timing. A protection group defines which VMs are protected. Replication is used for site-level protection and disaster recovery, not for rapidly testing a destructive change against a local production snapshot. Reference topics: vSAN Data Protection, Snapshot Service, Protection Groups, Linked Clone from Snapshot, VM Test and Recovery Workflows.

The Live! vSphere Heavy Hitter VM dashboard is the correct place to identify which virtual machines are driving storage IOPS and disk throughput problems. In VCF Operations, heavy hitter dashboards are designed to isolate the consumers creating the highest demand on shared infrastructure resources. For storage troubleshooting, this dashboard identifies VMs producing significant I/O load, including IOPS and throughput. This is especially useful when a Fibre Channel datastore is reporting performance alerts because the datastore itself may show contention, but the root cause is often one or more high-demand VMs consuming disproportionate backend storage resources. The vSAN Health dashboard is not correct because the affected datastore is Fibre Channel, not vSAN. The vSphere Storage Inventory dashboard is useful for topology and inventory visibility, but it is not the best view for identifying the VM-level consumers causing IOPS and throughput pressure. The Storage Operations page is broader and less targeted than the Live heavy hitter view. Reference topics: VCF Operations Performance Dashboards, Storage Heavy Hitters, VM IOPS and Throughput Troubleshooting.
