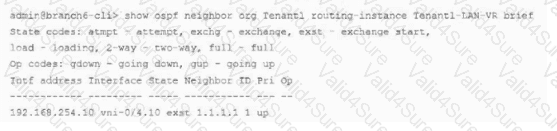

The correct answer is B . The exhibit shows the OSPF neighbor in the exst state, which means Exchange Start . Versa documentation lists the OSPF neighbor state codes and identifies exst as “exchange start,” followed by exchange, loading, and full. In normal OSPF adjacency formation, neighbors progress through initialization and two-way communication before they negotiate database exchange. If the neighbor becomes stuck in ExStart or Exchange, a common and highly probable cause is an MTU mismatch between the two OSPF peers. During database description packet negotiation, the peers must agree on parameters that allow LSDB exchange; an MTU mismatch can prevent the adjacency from advancing to Full.

Option A is less likely because an area mismatch usually prevents the neighbor relationship from forming correctly rather than leaving it stuck in ExStart. Option C is also incorrect because the neighbor has already progressed beyond early states, which indicates that bidirectional communication has occurred. Option D is not the best answer because dropping OSPF multicast 224.0.0.5 would typically prevent discovery or keep the adjacency in an earlier state, not specifically in ExStart. Therefore, the probable cause is an interface MTU mismatch.

The correct answers are A and C . If the onboarding VPN tunnel from the branch device to the Controller is up, the branch has reached at least the initial staging/control connectivity stage. Versa troubleshooting documentation explains that after a branch establishes IPsec connectivity to the Controller, the Controller sends a branch-connect notification to Versa Director. In response, Director pushes staging configuration and continues the onboarding lifecycle. If the expected later notification is not seen, the branch has not completed staging and further onboarding/debug steps are required.

The Tasks list in Versa Director is useful because device deployment and onboarding actions are executed as Director tasks. If template commit, workflow deployment, device claiming, or configuration push fails, the task output can show the error. The Unknown Devices dashboard is also relevant because a device that reaches the Controller but cannot be matched or fully associated with an expected workflow/appliance record may appear as an unknown device awaiting administrative review. The Monitor dashboard is not the best choice because the device is missing from the Appliances list and has not completed onboarding. Resource Pool is related to connector resources, not branch onboarding completion.

The correct answer is A . Versa CGNAT troubleshooting documentation provides a clear workflow for CGNAT issues. It first describes how to view CGNAT summary information using show orgs org-services < org > cgnat summary. It then shows how to view per-pool statistics using show orgs org-services < org > cgnat pools < pool-name > statistics. The sample output includes counters such as bindings-allocated , bindings-freed , alloc-failures , free-failures , out-of-address-errors , and out-of-ports-errors .

If these counters indicate failures, the next step is to inspect CGNAT state inside the vsmd daemon, including tenant state, ACL matching, pools, bindings, and source-port resources. This helps determine whether the issue is pool exhaustion, rule mismatch, resource allocation failure, or stale runtime state.

OSPF may affect routing but does not explain CGNAT allocation counters. Analytics may store logs but is not the dataplane authority for NAT allocation. Rebooting Analytics would not resolve CGNAT resource programming on the VOS device.

The correct answer is A . Versa documentation for internet speed tests states that before running an internet speed test, administrators must verify WAN internet connectivity and verify that CGNAT is configured on the provider organization. It also states that administrators should verify that they can retrieve the list of predeployed internet speed-test servers. If an error occurs while fetching the server list, the documentation instructs administrators to check the CGNAT and DNS configurations and then click Fetch Server List again.

This aligns with the scenario because DNS resolution and internet breakout depend on correct DNS reachability, NAT translation, and routing through the internet-facing transport. Even if DNS appears partially functional, CGNAT misconfiguration can still prevent application or HTTP test traffic from completing properly.

OSPF, BGP MED, SNMP, syslog, VRRP, and DHCP may be important in other designs, but they are not the first items Versa identifies for a failed internet speed-test server-list fetch in a DIA context.

The correct answers are B and C . During a migration from a legacy WAN, such as MPLS Layer 3 VPN, to Versa Secure SD-WAN, an SD-WAN gateway is used to allow communication between SD-WAN-enabled branches and legacy WAN sites. Versa SD-WAN design guidance states that an SD-WAN gateway allows sites connected to the SD-WAN VPN network to communicate with sites connected to a legacy MPLS VPN network. It also explains that this gateway facilitates route exchange between the MPLS underlay network and the SD-WAN VPN network, typically using a dynamic routing protocol such as BGP.

For this design, the hub or gateway must be configured with the Gateway option for the underlay transport so it can act as the interconnect point between the legacy and SD-WAN domains. Versa documentation further describes configuring a BGP peering session on the MPLS transport VR of the gateway to exchange routes from the MPLS provider to the SD-WAN network, and notes that Director Workflows can automate this configuration. Spoke-to-Spoke-Direct is not sufficient for legacy interconnect, and SD-WAN traffic steering policies do not advertise routes.

The correct answer is A . Versa CGNAT troubleshooting documentation shows the command show cgnat acl info <</b> tenant-id > for viewing CGNAT access lists used for traffic matching. The example output includes columns such as ACL handle , RuleId , Category , Precedence , VRF , Source IP , and Destination IP . It also shows tenant ID and total filters.

This command is useful when a CGNAT rule exists in configuration but sessions are not being translated. By checking the ACL output, the administrator can confirm whether the correct source prefix, destination prefix, VRF, and rule precedence are actually programmed in the dataplane. If the wrong VRF or subnet is shown, the rule may never match the intended traffic.

System uptime and CPU usage are operational health indicators. SLA metrics are SD-WAN path-quality values. BGP AS path and local preference are routing attributes. None of these directly show CGNAT access-list match programming.
