Comprehensive and Detailed Explanation

When deploying Prisma Access for Remote Networks (connecting branch offices), the licensing and throughput model is based on aggregate bandwidth allocated to specific compute locations (regions).

Bandwidth Allocation (Option D): Administrators must purchase and allocate a specific amount of bandwidth (e.g., 500 Mbps, 1 Gbps) to a Prisma Access "Compute Location" (e.g., US West, Europe Central). This allocated bandwidth is then shared as a pool among all the branch sites (Remote Networks) that onboard and terminate their IPSec tunnels at that specific location. The system does not allocate bandwidth on a strict per-site basis but rather enforces the limit on the aggregate throughput of the compute node itself.

Policy Enforcement (Option A): Security policies for Prisma Access are enforced in the cloud (at the Prisma Access Service Processing Node), not pushed down to the branch ION devices for local enforcement. The ION device handles local segmentation (ZBFW) and traffic steering, but the "Remote Network" security stack resides in the cloud.

Path Usage (Option C): Prisma SD-WAN is designed to utilize Active/Active paths. When a branch has multiple internet circuits connected to Prisma Access, the CloudBlade and ION automatically build tunnels on all compatible paths and can load-balance traffic across them based on application performance (SLA), rather than defaulting to a strict Active/Standby model for internet traffic.

Comprehensive and Detailed Explanation

In Prisma SD-WAN routing configuration, the Scope setting on a BGP Peer (or a Static Route) controls the redistribution logic for the prefixes learned from that source.

Local Scope: If a BGP peer is configured with "Local" scope, the ION device will install the learned routes into its local routing table for its own reachability, but it will not advertise (redistribute) these routes to other ION devices via the Secure Fabric. They remain local to the site.

Global Scope: To advertise reachability to the rest of the network, the BGP peer must be configured with "Global" scope. This tells the ION that any prefixes learned from this specific neighbor (e.g., the DC Core Switch) should be propagated across the SD-WAN overlay to remote branches. This is the critical setting for enabling branch-to-DC communication for applications hosted behind that BGP peer. Without "Global" scope, the branches would never learn the routes to the data center subnets.

Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) defines three distinct Operational Modes for a branch site, which determine how the ION device processes traffic and interacts with the network.

Analytics Mode (Monitor): In this mode, the ION device is typically deployed inline or in a "promiscuous" monitor state to gain visibility into network traffic without actively enforcing path selection policies.1 It "learns" applications, bandwidth usage, and network characteristics (auditing) but does not steer traffic or block flows.2 This is often used during Proof of Concepts (POVs) or the initial "burn-in" phase of a deployment to generate reports without risking network disruption.

Control Mode: This is the full production state. In Control Mode, the ION device actively enforces Path Policies, QoS Policies, and Security Policies. It builds Secure Fabric VPN tunnels, steers traffic based on application SLAs (e.g., sending voice over MPLS and bulk data over Broadband), and handles failover events.3 This is the required mode for a fully functional SD-WAN site.

Disabled Mode: This mode effectively shuts down the site's SD-WAN functionality from the controller's perspective. It is an administrative state used when a site is being decommissioned, provisioned but not yet live, or isolated for troubleshooting. In this state, the device does not participate in the fabric.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN Flow Browser, the Flow State provides a real-time snapshot of the TCP/UDP session lifecycle.

INIT (Initialization): This state indicates that the ION device has seen the initial packet of a new session (typically a TCP SYN) originating from the client (Source), but it has not yet seen a return packet (such as a TCP SYN-ACK) from the destination server.

Diagnosis: A flow stuck in INIT is a classic indicator of a "Blackhole" or reachability issue downstream. It implies that the ION successfully routed the packet out toward the destination, but the destination did not reply. Common causes include:

The server is offline.

A firewall in the path (or on the server itself) is dropping the traffic.

Routing is broken on the return path (asymmetric routing where the return traffic bypasses the ION).

If the flow had been denied by the ION's own firewall (Option C), the state would typically show as DENY or REJECT. If the handshake completed (Option A), the state would be ESTABLISHED. Therefore, INIT points to a lack of response from the remote end.

Comprehensive and Detailed Explanation

The Flow Browser and App Response Time metrics in Prisma SD-WAN are critical tools for isolating the fault domain—determining whether a problem lies in the "Network" or the "Application."

Network Transfer Time (NTT) / Round Trip Time (RTT): These metrics measure the time it takes for packets to traverse the network (WAN/LAN) and for acknowledgments to return. A low NTT (e.g., <50ms) confirms that the network pipes (SD-WAN overlay, Underlay circuits) are healthy and transporting packets quickly.

Server Response Time (SRT): This metric specifically measures the time between the server receiving a request and the server sending the first byte of the response. It essentially measures the "processing time" of the backend server.

In the scenario described, the network metrics (NTT/RTT) are excellent, effectively ruling out WAN congestion, packet loss, or latency (Option A and C). However, the Server Response Time (SRT) is very high (500ms). This signature is a definitive indicator that the network delivered the request instantly, but the application server took a long time to process it. This points the troubleshooting effort toward the server infrastructure (e.g., a slow SQL query, an overloaded web server, or lack of compute resources) rather than the SD-WAN environment.

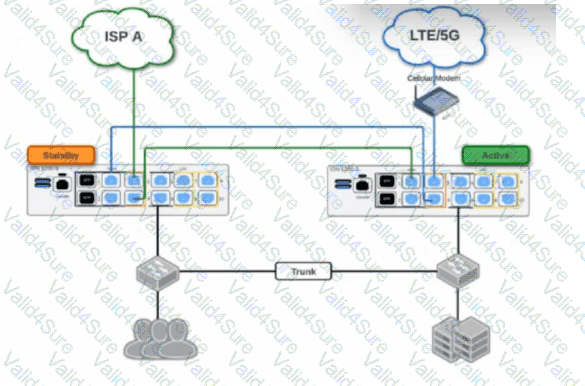

Prisma SD-WAN High Availability (HA) for branch ION devices, particularly the Gen-2 ION 1200-S, is designed to provide "100% WAN Capacity" preservation during a hardware or power failure. This is achieved through the use of Bypass Pairs (Fail-to-Wire). In the provided topology, the ISP A and LTE/5G circuits are cross-connected using the bypass ports (typically ports 3 and 4 on the ION 1200-S).

When the "Active" ION device loses power, the internal physical relays in its bypass ports transition to a closed state, effectively creating a physical bridge between the ports. In this scenario, the LTE/5G signal—which enters the Active ION's port 4—is mechanically bridged to port 3, allowing it to pass through to port 4 of the Standby ION. Simultaneously, ISP A is already connected to the Standby ION. Consequently, once the Standby device completes its transition to the "Active" state, it has physical access to both WAN circuits, validating Statement A.

Regarding the LAN transition, Prisma SD-WAN does not use standard VRRP for ION-to-ION HA; instead, it uses a proprietary Control Plane HA mechanism. When the failover occurs, the newly active ION takes over the IP addresses of all configured Switch Virtual Interfaces (SVIs) and LAN interfaces. To ensure the downstream Layer 2 infrastructure (like the LAN switches shown in the diagram) updates its MAC address tables to point to the new physical hardware for those IPs, the newly active ION immediately broadcasts a Gratuitous ARP (GARP). This ensures that LAN traffic is correctly steered to the new device without a significant timeout, validating Statement C.

Comprehensive and Detailed Explanation

The stability of VPN tunnels in the Prisma SD-WAN + Prisma Access integration relies on standard IPSec mechanisms.

Dead Peer Detection (DPD): The CloudBlade configuration automatically enables DPD on the IPSec tunnels it provisions.

Mechanism: DPD is a standard keepalive mechanism where the ION device sends periodic "R-U-THERE" messages to the Prisma Access gateway (and vice versa). If no acknowledgment is received after a specific count/timer, the ION marks the tunnel as down and attempts to re-key or switch to a backup path.

Synthetic Probes (B): While Synthetic Probes (part of ADEM or Path Quality monitoring) can be configured to measure latency/loss, the fundamental mechanism that keeps the IPSec security association (SA) active and detects link failure is DPD, not an application-layer probe.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN Data Center (DC) model, the terminology for BGP peers defines their role in the topology and how the system generates route maps.

Core Peer: This peer type is designated for the LAN-side connection (facing the DC Core Switch or internal Routers). Its primary purpose is to learn the subnets/prefixes hosted in the data center so the ION can advertise them to the remote branches. The system automatically creates route maps to facilitate this redistribution into the fabric.

Edge Peer: This peer type is designated for the WAN-side connection (facing the Edge Router or MPLS PE). Its primary purpose is to provide reachability to the underlay network.

Distinction: Selecting the correct type affects the default Route Maps and Prefix Lists generated by the controller. Configuring a Core Peer correctly ensures that the DC's internal subnets are properly learned and propagated to the overlay, whereas an Edge Peer configuration focuses on WAN next-hop reachability.
