PCNSE Exam Dumps - Palo Alto Networks Certified Security Engineer (PCNSE) PAN-OS 11.0

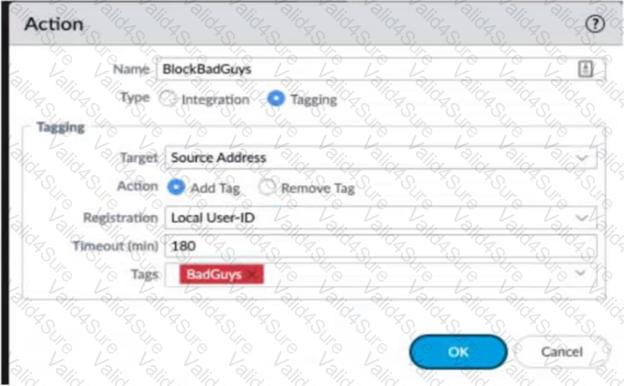

The Log Forwarding feature in Palo Alto Networks firewalls allows administrators to perform automated actions based on logs. One of the actions that can be configured is to tag an IP address, which can then be used in conjunction with Dynamic Address Groups (DAG) to enforce security policies. By tagging the destination IP addresses of unwanted traffic, an administrator can dynamically update policies to block traffic to those destinations.

This method is particularly useful for responding quickly to detected threats by creating and enforcing a policy that blocks traffic to tagged destinations without the need for manual intervention or policy changes.

For a detailed explanation, the Palo Alto Networks' "PAN-OS® Administrator’s Guide" provides information on log forwarding and automated actions.

https://docs.paloaltonetworks.com/pan-os/11-0/pan-os-new-features/networking-features/ipsec-transport-mode

The linked documentation outlines new features for IPSec transport mode in PAN-OS 11.0 and clarifies the requirements for configuring IPSec in transport mode. Based on this:

Auto-Generated Key:

The documentation specifies that IPSec in transport mode requires an auto-generated key during the IKE negotiation process. This ensures the integrity and encryption of the communication channel.

Verdict: Correct.

NAT Traversal:

NAT Traversal is only relevant when NAT is present between the IPSec peers. It is not an inherent requirement for IPSec transport mode.

Verdict: Not correct.

IKEv1:

While IKE (v1 or v2) is required for IPSec, the question specifically asks for transport mode requirements, and IKEv1 is not listed as a strict transport mode requirement in the documentation.

Verdict: Not correct.

DH-group 20 (ECP-384 bits):

The documentation mentions that DH-group 20 (Elliptic Curve Protocol, 384-bit) is one of the required Diffie-Hellman groups for transport mode. This ensures secure key exchange.

Verdict: Correct.

Correct Answer

Based on the documentation: A. Auto Generated Key

D. DH-group 20 (ECP-384 bits)

Why This Answer is Correct

Auto-generated key is fundamental to secure communication in transport mode, as stated in the PAN-OS 11.0 documentation.

DH-group 20 ensures a high level of cryptographic strength for key exchange, making it a specific requirement for transport mode in this context.

Reference

For more details, refer to the PAN-OS 11.0 IPSec Transport Mode documentation: IPSec Transport Mode

In Panorama, zones defined in a template must be linked to a device group for visibility in policy creation. Adding the template as a reference template in the device group (Option B) ensures its zones are available in the policy editor’s drop-down list.

Option A (master device) affects User-ID, not zones. Option C (add firewall) is a prerequisite, not a fix. Option D (share objects) is unrelated to zones. Documentation specifies reference templates for this issue.

If an administrator wants to apply QoS to traffic based on source, they must specify the post-NAT source address in a QoS policy rule. This is because QoS is enforced on traffic as it egresses the firewall, and the firewall applies NAT rules before QoS rules. Therefore, the firewall will match the QoS policy rule based on the translated source address, not the original source address. If the administrator uses the pre-NAT source address in the QoS policy rule, the firewall will not be able to identify the traffic correctly and apply the desired QoS treatment. References:

QoS Policy

Configure QoS

To protect against DNS misconfigurations, Advanced DNS Security and Advanced URL Filtering licenses (Option C) enable DNS sinkholing and domain monitoring. In an Anti-Spyware profile (Option D), the DNS Policies section allows adding specific domains to detect and block misconfigured records pointing to third-party sources.

Option A (Threat Prevention) lacks DNS-specific features for this use case. Option B (Vulnerability Protection) doesn’t include DNS misconfiguration settings. Documentation confirms Anti-Spyware with DNS Security for this purpose.

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/user-id/map-ip-addresses-to-users/configure-user-id-to-monitor-syslog-senders-for-user-mapping#iddb1a7744-17c6-4900-a2cb-5f3511fef60f

To facilitate the integration with external log parsing systems, the firewall allows you to customize the log format; it also allows you to add custom Key: Value attribute pairs. Custom message formats can be configured under DeviceServer ProfilesSyslogSyslog Server ProfileCustom Log Format. https://docs.paloaltonetworks.com/pan-os/11-1/pan-os-admin/monitoring/use-syslog-for-monitoring/syslog-field-descriptions/custom-logevent-format

Step-by-Step Explanation:

Understanding Log Forwarding in PAN-OS:

Palo Alto Networks firewalls allow forwarding logs to external systems like syslog servers, SNMP servers, or email systems for external analysis or compliance.

Traffic logs can be customized to include additional information that meets the audit or operational requirements.

Syslog Server Profiles:

Syslog Server Profiles specify the format and destination of the log data sent to the syslog server.

These profiles allow customization through the Custom Log Format option, where the firewall engineer can add or modify log fields (e.g., source address, destination address, URL category).

Custom Log Format:

Navigate to Device > Server Profiles > Syslog.

Within the Syslog Server Profile, define a Custom Log Format for traffic logs.

Using this feature, the engineer can include additional fields requested by the internal audit team, such as threat severity, application details, or user ID.

Field Specification:

In the Custom Log Format, fields are defined using variables corresponding to the log fields in PAN-OS.

Example:

$receive_time,$src,$dst,$app,$action,$rule

The engineer can include specific details as requested by the audit team.

Comparison of Other Options:

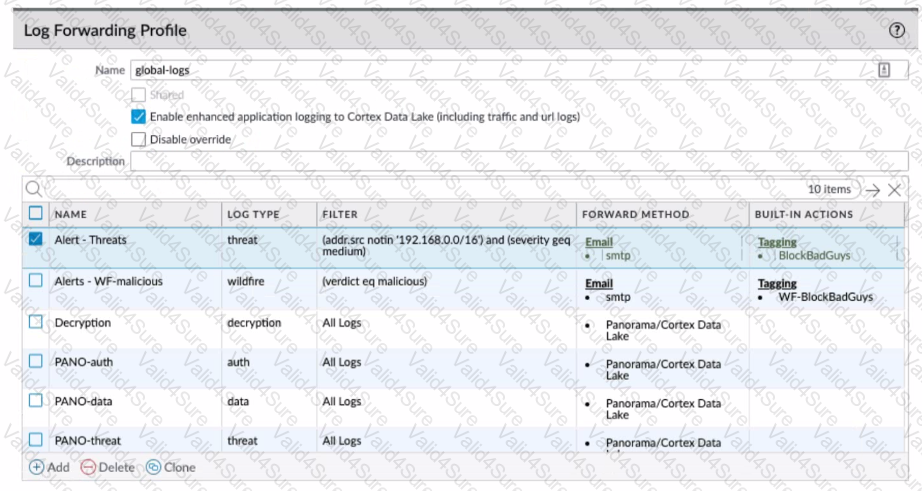

Option B: Built-in Actions within Objects > Log Forwarding Profile

Log Forwarding Profiles are used to specify what logs are forwarded based on security policy matches. However, they do not control the format of logs.

Log Forwarding Profiles define actions (e.g., forwarding to syslog, SNMP), but customization of log data happens within Syslog Server Profiles.

Option C: Logging and Reporting Settings within Device > Setup > Management

These settings control general logging behavior and settings but do not allow customization of log data for syslog forwarding.

Option D: Data Patterns within Objects > Custom Objects

Data Patterns are used for identifying sensitive data or patterns in data filtering. They are unrelated to log customization.

Why A is Correct?

The Custom Log Format under Device > Server Profiles > Syslog is the only place where additional information can be defined and added to forwarded traffic logs.

This flexibility allows the firewall engineer to meet specific compliance or audit requirements.

Documentation Reference:

PCNSA Study Guide: Logging and Monitoring section discusses Syslog Server Profiles and log forwarding configurations​.

PAN-OS Admin Guide: Covers Custom Log Format configuration under the Syslog Server Profile.
