Comprehensive and Detailed in Depth Explanation:TheCourse of Actionelement representswhat an enterprise has decided to doin order to achieve a strategic objective. Itdefines high-level actions and strategiesthat guidebusiness capabilities and activities.

TheArchiMate 3.2 Specificationstates thatCourses of Action define the high-level choices and strategic actions taken by an organization.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

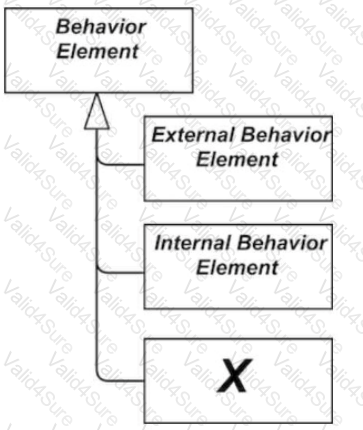

The diagram represents ametamodel fragmentbased onArchiMate 3.2, specifically focusing onBehavior Elements.

Behavior Elementis ageneral categorythat consists ofexternal and internal behavior elements.

External Behavior Elementrepresents behavior that is externally observable by other components (such as aserviceor aninterface).

Internal Behavior Elementrepresents behavior that is performed within an entity (such as afunction, process, or interaction).

The elementXisa specialized form of an Internal Behavior Element.

According toArchiMate 3.2 Specification, Section 5.2,internal behavior elements include processes, functions, interactions, and events.

Function (A)❌→Incorrect

AFunctionis an internal behavior element, but it isnot the correct specialization in this hierarchy.

Functions are usuallystructured ways of performinginternal operations rather than discrete occurrences.

Service (B)❌→Incorrect

AServiceis anexternal behavior element, meaning it isnot classified under internal behavior elements.

SinceX is placed under Internal Behavior Elements, this cannot be the correct answer.

Interface (C)❌→Incorrect

AnInterfaceis not a behavior element; instead, it is part of the structure that exposes services.

The hierarchy in the question doesnot deal with structural elements, making Interface an incorrect choice.

Event (D)✅→Correct Answer

Events represent discrete occurrences that can trigger other behaviorswithin the architecture.

Events belong to Internal Behavior Elementsbecause they drive processes and functions.

According toArchiMate 3.2 Specification, Section 5.2.1,an Event is classified as an Internal Behavior Elementalongside functions and processes.

Final Answer:✅D. Event

References:

ArchiMate 3.2 Specification: Sections 5.2 (Behavior Elements) and 5.2.1 (Event as an Internal Behavior Element).

Archi User Guide: Understanding Behavior Elements and their hierarchy.

Comprehensive and Detailed In-Depth Explanation:

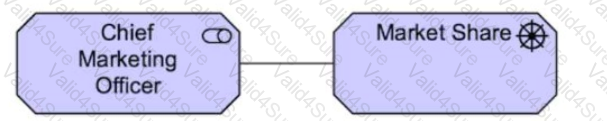

TheChief Marketing Officer (CMO)in this diagram is depicted as astakeholder, as it representsan individual or a group with concerns about market share.

InArchiMate 3.2, astakeholderis an entity thathas an interest in the outcomes of enterprise architecture, business processes, or strategic goals. TheMarket Shareconcept represents abusiness driver or key metric, which directly aligns withstakeholder concernsin an organization.

Analysis of Answer Choices:

✅A. Business Actor→❌Incorrect.

ABusiness Actorrepresents anorganizational entity that performs behavior(e.g., a company, department, or system).

TheCMO is an individual with a concern (Market Share), not a system or department performing business processes.

ArchiMate 3.2 Specification, Section 6.2.1, states that aBusiness Actor is an operational entity rather than a strategic role or stakeholder.

✅B. Role→❌Incorrect.

ARolerepresents aresponsibility or job function assigned to actors, but thediagram does not depict responsibilities or assigned functions.

Arole is usually linked to a business actor, while theCMO in this context is linked to a business concern (Market Share).

ArchiMate 3.2 Specification, Section 6.3.1, states thatroles are used to define responsibilities, whereas stakeholders are used to define concerns.

✅C. Stakeholder→✅Correct Answer

TheCMO represents a strategic position with concerns about business performance, making it aStakeholderin ArchiMate.

ArchiMate 3.2 Specification, Section 6.2.1, definesStakeholder as an entity concerned with outcomes and business goals, exactly fitting the context of this diagram.

✅D. Actor→❌Incorrect.

AnActorin ArchiMate is used to defineentities performing business behaviors(such as a department or a system).

TheCMO is not performing an explicit business function but rather has concerns about market performance.

Final Answer:✅C. Stakeholder

References:

ArchiMate 3.2 Specification: Sections 6.2.1 (Stakeholder), 6.3.1 (Role), and 6.2.1 (Business Actor).

Archi User Guide: Defining stakeholders and their concerns in Enterprise Architecture.

Based on the ArchiMate 3 documents or objectives, the generic metamodel defines two main types of elements: structure and behavior. Structure elements represent the structural concepts that model the static construction or composition of concepts of the same or different types. Behavior elements represent units of activity performed by one or more active structure elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements 1; ArchiMate® 3.0.1 Specification - The Open Group 2.

According to the ArchiMate 3.2 Specification1, a business event is a behavior element that denotes an organizational state change. It may originate from and be resolved inside or outside the organization. A business event accesses a passive structure element that represents an entity relevant from a business perspective, such as a business object, a contract, or a product. A business passive structure element is denoted by a rectangular shape with square corners. The access relationship is denoted by a line with an open arrowhead.

The diagram below shows a business event named Order Received that accesses a business passive structure element named Order. The access relationship indicates that the event reads or writes the order.

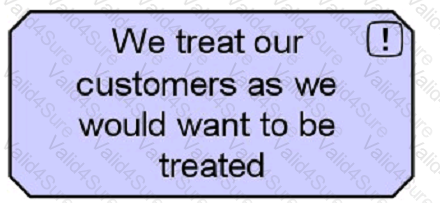

According to the ArchiMate® 3.2 Specification1, a principle defines a general property that applies to any system in a certain context. A principle is a normative property of all systems in a given context that expresses a fundamental value or property1. Therefore, the correct answer is A. A principle.

Comprehensive and Detailed in Depth Explanation:TheMaterialelement in thePhysical Layerof ArchiMate representstangible physical matter or energythat is used or produced within an enterprise. Examples include raw materials, energy sources, or physical substances used in manufacturing.

TheArchiMate 3.2 Specificationexplicitly states thatMaterialis apassive structureelement that representsphysical matter or energy.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

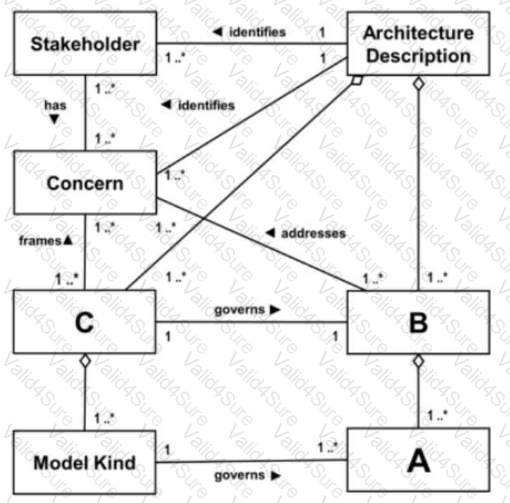

TheISO/IEC 42010 standarddefinesconcepts and relationshipsfor modelingArchitecture Descriptions. This standard structuresarchitecture views, models, and viewpoints.

Understanding the Diagram:

StakeholderidentifiesConcernsabout the architecture.

Concernsare addressed byB, which in turn governsA.

Model KindgovernsA, implying thatA is an Architecture Model.

Architecture Viewpointsframe concerns but are not depicted as governingA, indicating thatB represents an Architecture Viewrather than a Viewpoint.

This aligns withISO/IEC 42010, which states:

AnArchitecture View(B) addresses stakeholder concerns.

AnArchitecture Model(A) represents an abstraction of the architecture and is governed byModel Kinds.

Analysis of Answer Choices:

✅A. A = Architecture, B = Architecture Viewpoint→❌Incorrect

Architectureis too broad; the diagram specifically deals withmodels and views, not the entire architecture.

Viewpointsgovern concerns but do not directly govern models as shown in the diagram.

✅B. A = Viewpoint Library, B = Architecture Rationale→❌Incorrect

A is governed by Model Kind, which means it representsan actual model, not a library of viewpoints.

B is linked to concerns and architecture descriptions, which matches anArchitecture View, not a rationale.

✅C. A = Architecture Model, B = Architecture View→✅Correct Answer

ISO/IEC 42010 states that an Architecture View consists of one or more Architecture Models, fitting this diagram.

Thegoverning relationship from Model Kind to AconfirmsA is an Architecture Model.

B is addressed by concerns, aligning with how Views address stakeholder concerns in the standard.

✅D. A = Capability, B = Value Stream→❌Incorrect

Capabilities and Value Streams belong to Business Architecture, not Architecture Descriptionsin ISO/IEC 42010.

The diagram followsISO/IEC 42010terminology, making this answer irrelevant.

Final Answer:✅C. A = Architecture Model, B = Architecture View.

References:

ISO/IEC 42010 Standard: Concepts of Architecture Description, Architecture Views, and Models.

ArchiMate 3.2 Specification: Sections on Architectural Viewpoints and Models.
