NSEI_OTS_AR-7.6 Exam Dumps - Fortinet NSE I - OT Security 7.6 Architect

The correct answers are B and D .

Option B is correct because the profile has Medium , High , and Critical selected, while Low severity is not selected. That means low-severity virtual patching signatures are not enforced by this profile. So for the device with MAC address 12:12:12:12:12 , low-severity signatures are not blocked. The study guide explains virtual patching as device-specific protection where “FortiGate caches the signatures and mitigation rules that apply to each device” and applies them when the related traffic matches the firewall policy.

Option D is correct because the Virtual Patching Exemptions table shows a row with the MAC address 11:11:11:11:11 and no specific signature listed. The study guide states that in the Virtual Patching profile you can “Exempt a specific device with the MAC address or a specific signature.” A MAC-only exemption means that specific device is excluded from virtual patching enforcement, so in practical terms it is treated as having no applicable vulnerabilities in this profile.

Option C is incorrect because the profile does not block critical signatures for all devices. The exemptions list proves that at least one device can be excluded by MAC address, and a specific signature can also be exempted. Therefore, enforcement is not universal across all devices.

Option A is incorrect because the entry Schneider.Electric.ClearSCADA.HTTP.Interface.XSS appears as a specific signature exemption , not as the only remaining vulnerability. The profile display is showing exemptions, not a statement that only one vulnerability is still present.

The correct answers are B. IPS on FortiGate_Level5 and C. Virtual patching on FortiGate_Level2 .

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected . This makes FortiGate_Level5 , at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.

The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.

Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats. Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices .

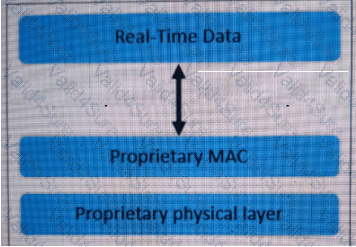

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .

The correct answers are C and D .

Option D is correct because the Playbook Monitor clearly shows the starter as On_Demand and the trigger as user(admin) . The study guide states that “ON_DEMAND: The playbook runs when an administrator manually starts it” and also notes that to run it manually, you select the playbook and click Run . This exactly matches the exhibit, so the playbook was manually triggered.

Option C is also correct. The study guide explains that “tasks run one after another” and that “if needed, the output of one task can be used by the tasks that follow it.” It also gives an example where workflow logic matters, such as creating an incident and then attaching details to it. In the exhibit, the sequence shown is Attach_report , then Run_report , then Create_Incident , while the incident analysis shows no report attached . Since the report must exist and the incident must already be available before it can be attached properly, the task order is wrong and must be reordered.

Option B is incorrect because the monitor shows multiple tasks completed successfully, not only Create_Incident . Option A is not the best answer because the main problem demonstrated by the exhibits is not simply waiting time, but the incorrect workflow order. The playbook completed successfully, yet the report is still not attached, which indicates a design issue in the task sequence rather than just a delay.

The correct answers are B. Real-time control and D. Determinism . The study guide defines industrial Ethernet as the “use of Ethernet and TCP/IP as transport mechanisms for industrial protocols” and states that it provides “real-time control,” “low latency,” and “determinism (meaning reliable and predictable data delivery)” in harsh environments. It further explains that industrial Ethernet “provides deterministic communication between machine controllers, actuators, sensors, and other units.” These statements directly confirm that the two key advantages are real-time control and determinism.

The other options are not supported by the study guide as core advantages of industrial Ethernet. Encryption is not listed as one of the benefits in this section, and remote access is discussed elsewhere in the OT architecture but not as a defining advantage of industrial Ethernet itself. The guide is explicit that the main benefits here are predictable delivery and real-time communication, which are essential in industrial control environments where timing and reliability matter.
