The correct answer is A. Device Detection is enabled on the other identified device .

The study guide explains that device identification is a “useful feature for the Security Fabric topology view” and that “FortiGate detects most third-party devices in your network and adds them to the topology view of the Security Fabric.” It also states that in the interfaces section, you can enable device detection , and this detection is what allows FortiGate to identify devices based on observed traffic.

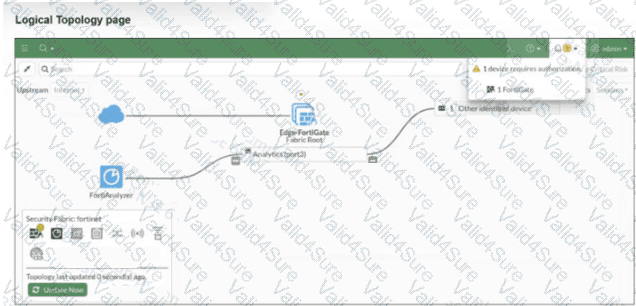

In the exhibit, the tooltip distinguishes between “1 device requires authorization” and “1 other identified device.” That means the unauthorized device is a separate FortiGate/Fabric member issue, while the other identified device is simply a detected third-party device shown in the topology because device detection is working. Therefore, the correct interpretation is that device detection is enabled for that identified device. Option B is incorrect because the exhibit does not say the other identified device requires authorization. Option C is not supported by the study guide, and option D is too specific because no evidence in the exhibit confirms that the detection was enabled specifically on port3 .

The correct answer is C. Industrial Control System (ICS) . The study guide states that “ICS is a main component of OT” and “consists of systems used for monitoring and controlling industrial processes.” It also explains that ICS includes various devices, systems, controls, and networks that manage industrial processes, and that the most common types are SCADA and distributed control systems (DCS) . This makes ICS the primary OT component for monitoring and controlling industrial processes.

The other options are related OT components, but they are not the best answer to this wording. SCADA collects real-time data and helps visualize and control the OT environment, but it is described as a system within the broader ICS structure. PLC devices collect and transmit real-time data and connect sensors and RTUs to SCADA, while IIoT refers to sensors, actuators, and other connected field devices. Therefore, the overarching main OT component for monitoring and controlling industrial processes is ICS .

Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

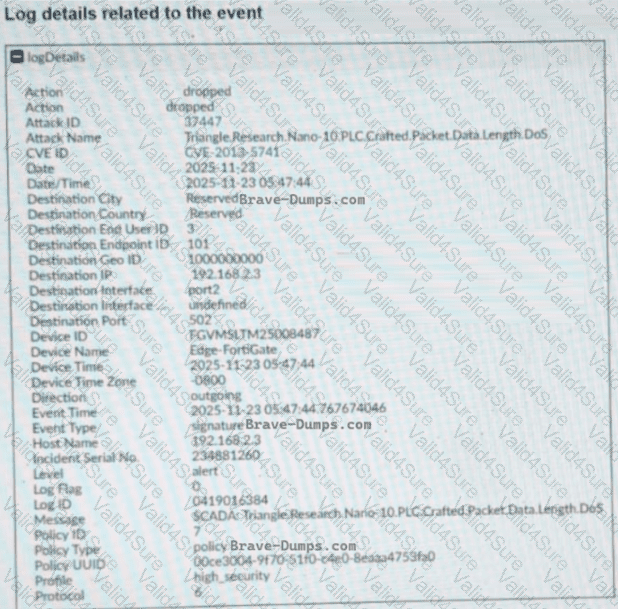

Industrial Protocol Identification (Statement A) : The log details exhibit clearly shows that the Destination Port used in the attack is 502 . According to the study guide's section on Industrial Protocol Protection , the standard port used by the Modbus TCP protocol is 502 . Furthermore, the attack name identifies a "Triangle.Research.Nano-10.PLC," which are industrial controllers commonly utilizing Modbus for communications.

Attack Mitigation (Statement B) : The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped . In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

Target IP Address (Statement E) : The log detail explicitly lists the Destination IP as 192.168.2.3 . The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the "Affected Endpoint" is shown as 10.1.5.20 , in an "outgoing" attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.

Protocol Conflict (Statement C) : The IEC 104 protocol typically utilizes port 2404 . Since the log specifies port 502, Statement C is incorrect.

Severity Distinction (Statement D) : While the Incident severity is marked as High , the question specifically asks about event severity. The "Events" table at the bottom of the Incident Analysis page shows a "User login/logout failed" event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

Based on the provided exhibits from the FortiAnalyzer playbook engine:

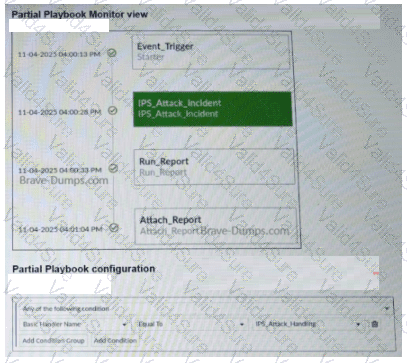

Playbook Trigger Condition : The Partial Playbook configuration exhibit shows that the playbook is set to trigger based on a condition where the Basic Handler Name is Equal To IPS_Attack_Handling.

Event vs. Log : In FortiAnalyzer, the field Basic Handler Name is a property of an Event record, indicating the specific Event Handler that generated it. A playbook configured with this condition is triggered by an Event , not directly by a raw log.

Playbook Execution Flow : The Partial Playbook Monitor view shows the execution sequence:

Event_Trigger (Starter) : This is the entry point of the playbook, which matches the condition defined in the configuration.

IPS_Attack_Incident : The first task executed after the trigger.

Run_Report : The task in question, which is executed as part of the automated workflow initiated by the starter.

Conclusion : Since the playbook's "Starter" is defined by the IPS_Attack_Handling handler name, an event produced by that handler is the root trigger for the entire playbook execution, including the Run_Report task.

Therefore, the Run_Report task was triggered (as part of the playbook) by an IPS_Attack_Handling event .

The correct answer is A . The study guide states that “The OT view is not available by default. You must enable it in the Feature Visibility section of the GUI or using the CLI command shown on this slide” and shows config system settings → set gui-ot enable . It also says that “After you enable the feature, the Asset Identity Center contains an Asset Identity List tab and an OT View tab.” This directly explains why the OT View tab is missing: the feature that enables the Purdue-style OT display has not been enabled yet.

The OT View is the view that displays devices in a Purdue diagram , and the Asset Identity List also shows the current Purdue level for each device. Because the answer options do not explicitly say enable OT View in Feature Visibility , option A is the intended match, since it refers to enabling the Purdue-related OT display feature. Option B is incorrect because device detection affects visibility of devices, not whether the OT View tab exists. Option C is not supported by the study guide, and option D is also not given as the requirement for showing the OT View tab.
