NSE6_FSM_AN-7.4 Exam Dumps - Fortinet NSE 6 - FortiSIEM 7.4 Analyst

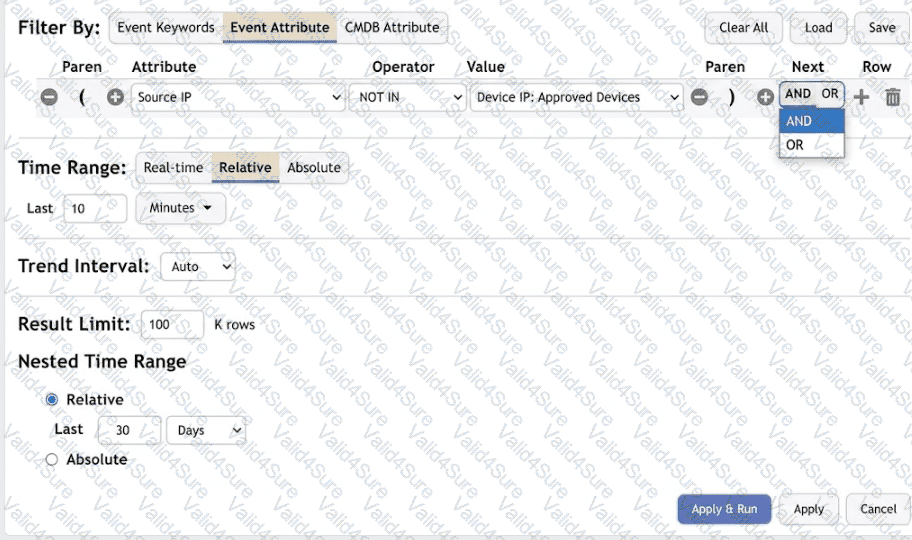

The correct answer is D. The exhibit shows an outer event query using the Event Attribute filter Source IP NOT IN Device IP: Approved Devices. The outer query time range is set to Relative — Last 10 Minutes, so FortiSIEM searches only the event data from the last 10 minutes. The exhibit also shows a separate Nested Time Range set to Relative — Last 30 Days. In FortiSIEM nested searches, the nested time range applies to the inner report/subquery, not to the outer event search. The FortiSIEM 7.4 User Guide states that nested query functionality lets one query refer to results from another query, and for outer event / inner event nested searches, it instructs the user to “choose the time range for outer query” and separately “choose Nested Time Range for the inner query.” It also states that when an existing query is used as an inner query, “time range would be set separately” in the outer query configuration. Therefore, FortiSIEM searches the last 10 minutes of outer events and compares their Source IP values against the Device IP values returned by the Approved Devices report using the last 30 days nested time range.

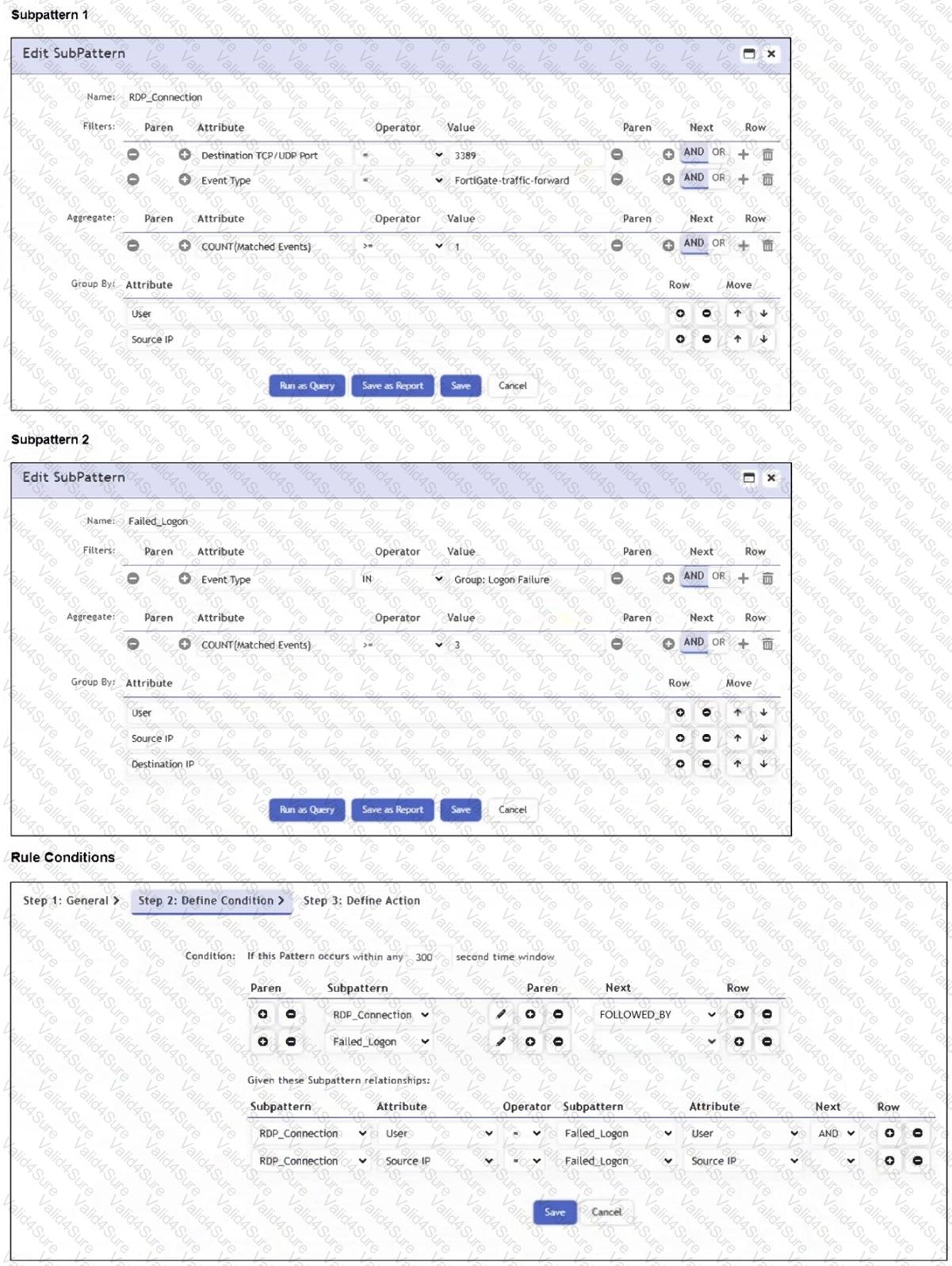

The user initiates an RDP session (Subpattern 1) and then fails to log in multiple times (Subpattern 2 with COUNT(Matched Events) > = 3) - both from the same Source IP and User within 300 seconds.

The brute force attempts typically involve a successful RDP connection followed by multiple failed logins, satisfying the sequence and grouping conditions in the rule.

The correct answers are A and B because the rule uses multiple subpatterns and requires them to occur in a defined relationship within the configured time window. The FortiSIEM Study Guide states that rule conditions specify the event attributes and thresholds that trigger the rule and create an incident. It also explains that the time window is the period “within which the subpattern(s) must match for the rule condition to be satisfied,” and that when there is more than one subpattern, FortiSIEM requires logic between the subpatterns plus subpattern relationship constraints. In the exhibit, the first subpattern detects an RDP connection and the second detects failed logons. The rule condition uses a sequence relationship, so the failed logon activity must follow the RDP connection and match the relationship constraints, such as same user and source IP. A user using RDP over SSL VPN who fails repeatedly satisfies this logic. A brute-force attack against an RDP server also satisfies the repeated failed-logon requirement after an RDP connection. Failing only twice does not meet the aggregate threshold, and connecting to the wrong IP is not the failed-logon sequence being detected.

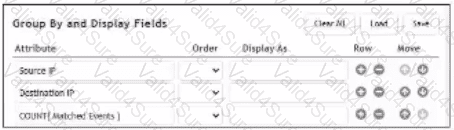

The correct answer is B because the configuration groups results by Source IP and Destination IP , while using COUNT(Matched Events) as a display/aggregate value. FortiSIEM’s grouping logic combines events only when the selected Group By attributes match. The Study Guide explains that Group By attributes determine how matching events are placed into rows, and that when multiple events share the same grouped values, “they are grouped together in one row.” The count column then tracks the number of events represented by that row. In the exhibit, Source IP and Destination IP are the grouping fields, so FortiSIEM displays each unique connection pair once. The count shows how many matching allowed firewall connection events were seen for each pair. Option A is not correct because the exhibit does not show sorting by destination IP hit count. Option C ignores the source and destination grouping. Option D would require grouping by source IP alone or by distinct destination counts per source, which is not the shown configuration.

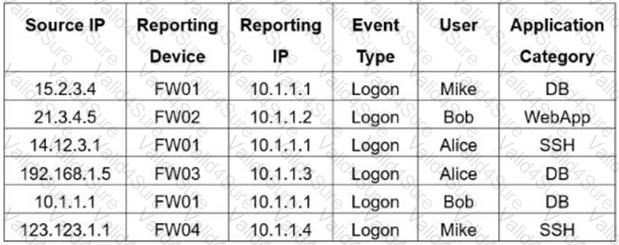

FortiSIEM grouping works by combining events that have the same values for all selected Group By attributes. The Study Guide’s rule and subpattern example states that when multiple events have the same Group By values, “they are grouped together in one row, and the count column tracks the number of events for each of those rows.” In the exhibit, the selected grouping fields are Reporting Device, Reporting IP, and Application Category. The table contains six raw rows, but two rows share the same grouped combination: FW01 / 10.1.1.1 / DB . Those two rows are collapsed into one grouped result. The other combinations are unique: FW02 / 10.1.1.2 / WebApp, FW01 / 10.1.1.1 / SSH, FW03 / 10.1.1.3 / DB, and FW04 / 10.1.1.4 / SSH. That creates five grouped rows in total. FortiSIEM does not display six because grouping removes duplicate combinations, and it does not display four because only one duplicate combination exists.

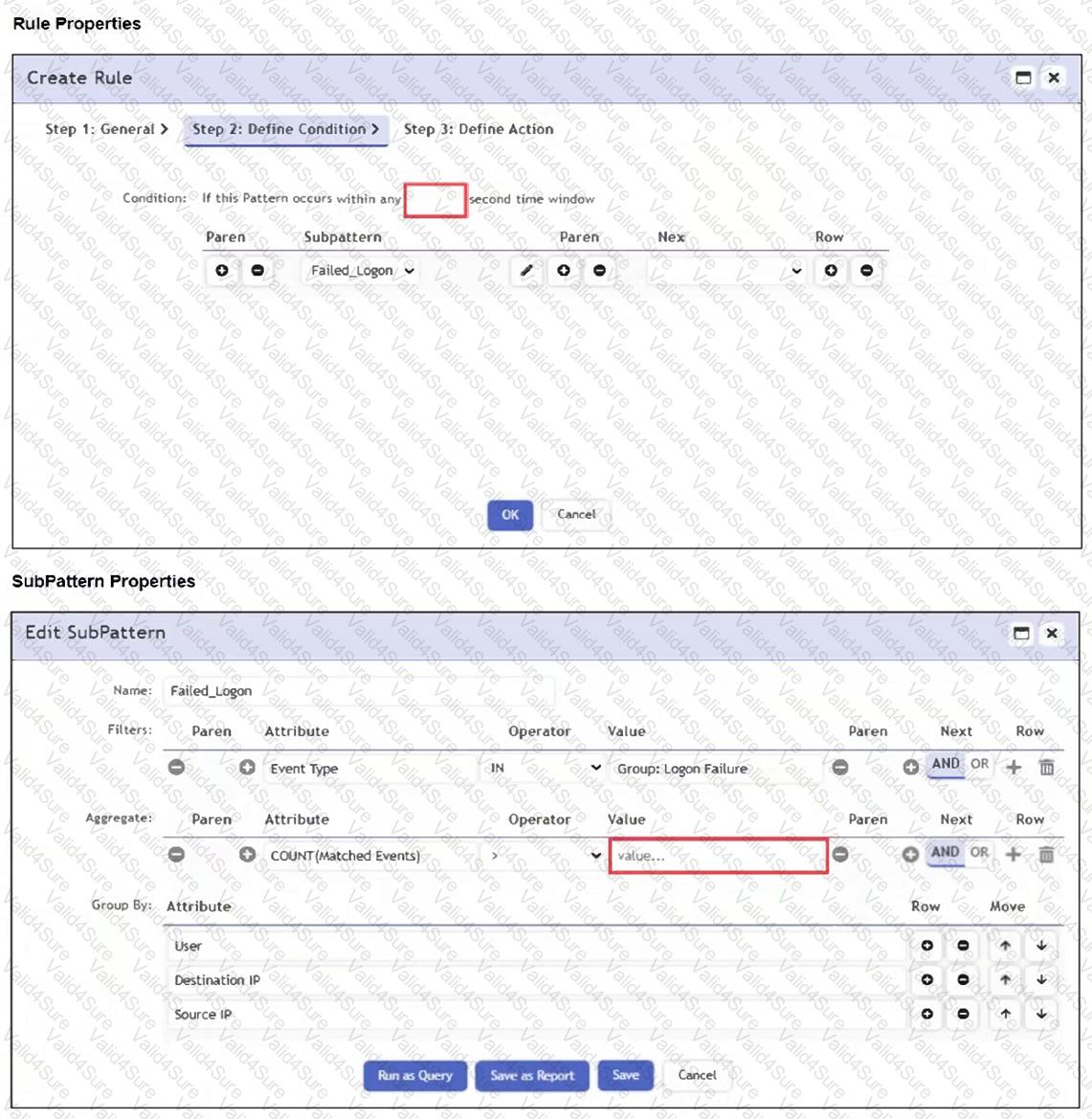

To detect three failed login attempts within three minutes, you must set the aggregate count to 3 in the subpattern and the time window to 180 seconds in the rule condition. This ensures the rule triggers only if three or more failed logins occur in that timeframe.

The correct answer is A because three minutes equals 180 seconds, and the aggregate threshold must be set to three matching events. The FortiSIEM Study Guide explains that rule conditions specify event attributes and thresholds that trigger the rule and create an incident. It further states that the time window defines the period within which the subpattern must match for the rule condition to be satisfied. The Study Guide’s single-subpattern rule example shows the same principle: the condition has a configured time window, and the Aggregate section uses a function such as COUNT(Matched Events) to require a minimum number of matching events. In this question, the analyst wants the rule to trigger when three failed login attempts happen within three minutes . Therefore, the rule condition time window must be 180 seconds , and the aggregate count must be 3 . A 90-second window would detect only events inside one and a half minutes, not the required three minutes. An aggregate count of 2 would trigger too early because the requirement is three failed attempts.
