To concurrently serve a namespace over NVMe/FC, a LUN over FCP, a LUN over iSCSI, and an NFS export, only one data SVM (Storage Virtual Machine) is required. NetApp ONTAP allows a single SVM to support multiple SAN and NAS protocols simultaneously, enabling efficient and consolidated management of storage resources.

For more information, refer to:

NetApp Documentation on SVM Configuration

NetApp SVM Best Practices

A QFULL response indicates that the storage controller’s FC target-port command queue has reached its supported capacity and cannot accept additional SCSI commands. With 90 hosts generating I/O, excessive fan-in to the existing target ports can exhaust available queue resources. Configuring additional FC target ports allows host connections and queued commands to be distributed across more storage-side target resources, reducing pressure on each individual target port. Increasing initiator queue depth would worsen the condition because hosts could submit more outstanding commands. Similarly, increasing target-port queue depth is not the appropriate administrator-controlled remedy presented here because the physical target adapter has defined queue limits. NetApp recommends planning host fan-in carefully to avoid QFULL conditions. Relevant topics include FC queue depth, target-port fan-in, QFULL responses, SAN scalability, and FC target-port design

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either " Active/Optimized " or " Active/Nonoptimized " . A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the path states. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

To migrate data from a LUN on an existing third-party SAN storage system to a new NetApp AFF A400 all-flash MetroCluster system, the supported methods include:

Foreign LUN Import in online mode: This method allows for data migration without significant downtime, enabling the system to continue serving data while the migration process is ongoing.

Foreign LUN Import in offline mode: This method involves taking the LUN offline during the migration process, which may be necessary in certain scenarios to ensure data integrity.

For more details, refer to:

NetApp Documentation on Foreign LUN Import

NetApp Community on LUN Import Methods

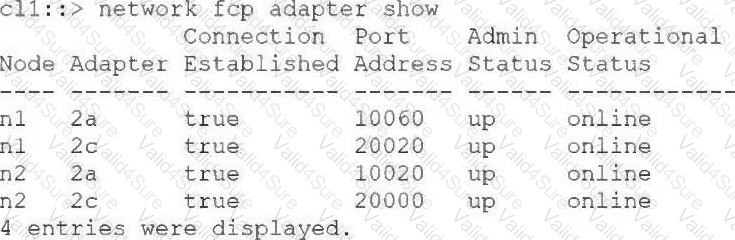

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.

Active IQ OneCollect is a NetApp tool designed to collect configuration and performance data from your storage environment, including SAN solutions. It can automate the creation of difference reports by capturing the current state of the system and comparing it against a baseline, thereby showing any changes or deviations from the intended design.

For further details, refer to:

NetApp Active IQ OneCollect Documentation

The likely cause for the disappearance of all snapshots after a ransomware attack that encrypted all files on the LUN is the Snapshot autodelete feature. When the volume becomes full due to the encryption, the autodelete feature removes older snapshots to free up space, preventing the volume from running out of space and ensuring write operations can continue.

For more information, see:

NetApp Documentation on Snapshot Autodelete

NetApp Community Discussion on Snapshot Deletion
