NS0-194 Exam Dumps - NetApp Certified Support Engineer (NCSE)

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

The ISL between siteA and siteB is the component causing the problem. The EMS messages show both nodes reporting HA interconnect connection failures and then bridges being removed from opposite sites at essentially the same timestamp. If a single ATTO bridge were the root cause, the failure would localize to that bridge or path. If one SAN switch at siteA_2 or siteB_2 failed, the messages would more narrowly implicate paths through that switch. Instead, both sides simultaneously lose visibility across the fabric to remote bridges, which indicates an intersite link failure between the sites. In a fabric MetroCluster, ISLs carry the cross-site connectivity required for mirrored storage and FC fabric communication. A support engineer should interpret symmetry: simultaneous bridge removals from both perspectives generally point to the shared intersite path, not independent bridge failures at both locations. References/topics: MetroCluster fabric ISLs, FC-to-SAS bridge visibility, DISK REDUNDANCY FAILED messages, cross-site pathing, and MetroCluster fabric troubleshooting.

The NetApp Deployment Engine for NetApp HCI requires a minimum of two compute nodes. NetApp HCI is built around independent compute and storage resources, and the deployment engine validates the minimum configuration before allowing an installation workflow to proceed. One compute node is not sufficient because the platform is designed to provide a resilient hypervisor environment and to separate compute lifecycle operations from storage resource provisioning. Three or four compute nodes may be common in larger deployments, but they are not the minimum requirement for the deployment engine. The exam wording asks for compute nodes, not total nodes in the HCI environment, so the answer must focus only on the compute-node requirement. The support engineer should distinguish this from the storage-node minimum and from general vSphere cluster sizing. References/topics: NetApp HCI deployment prerequisites, NetApp Deployment Engine validation, minimum compute-node requirements, and HCI installation planning.

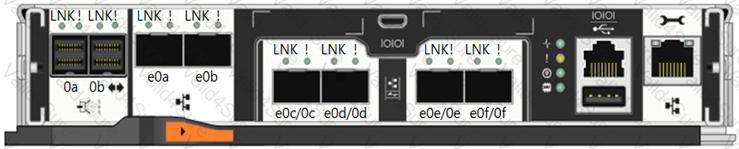

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

CRC errors on a network port usually indicate a physical-layer problem, so the first components to reseat or replace are the SFP and the cable. CRC errors are frame-check failures caused by corrupted frames reaching the interface. The most common support causes are dirty or failing optics, marginal fiber/copper cabling, bad seating, bend radius problems, or a faulty physical link component. Before replacing the controller port, the engineer should eliminate the replaceable path components that are cheaper, more common, and easier to validate. Cluster interconnect switches or upstream switches may eventually be involved if errors persist on multiple links or follow a switch port, but the question asks what to consider before taking action on the physical port where errors are reported from the node. Therefore, reseating or replacing the SFP and cable is the correct initial response. References/topics: ONTAP network port CRC errors, physical-layer troubleshooting, SFP optics, cabling validation, and network link diagnostics.

VLANs are used in ONTAP environments to create logical network segmentation, normally by function, tenant, or protocol. Isolating management traffic from data traffic is a valid design reason because management interfaces should remain on a protected administrative network, separate from NAS or SAN client paths. Isolating iSCSI traffic from NAS traffic is also valid because iSCSI carries block storage traffic and is commonly placed on dedicated networks or VLANs for predictable latency, security, and failure-domain control. VLANs do not isolate UDP from TCP; those are transport protocols and are handled by IP stack behavior, firewalling, or application design rather than VLAN design. FC is not ordinary IP traffic, so isolating FC from other IP traffic is not a correct VLAN use case for ONTAP Ethernet networking. The support decision is to select segmentation examples that match ONTAP IP networking. References/topics: ONTAP VLANs, broadcast domains, management network isolation, iSCSI network separation, and NAS/SAN traffic design.

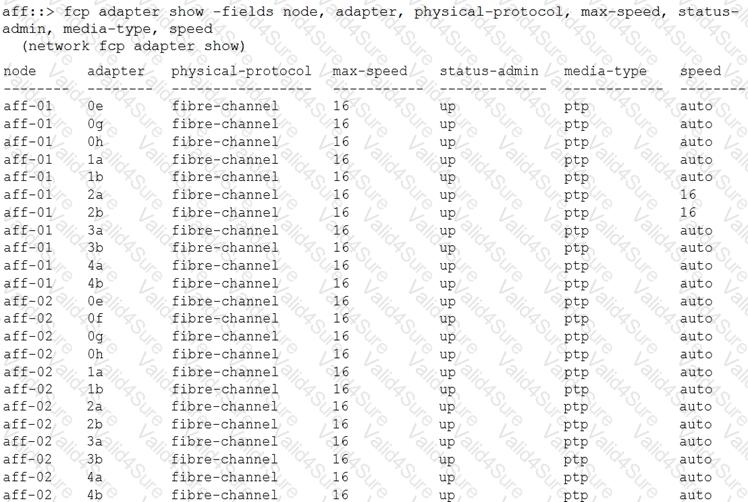

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.
