Apstra 5.1 Security Policies are intended to enforce permit/deny controls for traffic between defined endpoints such as routing zones, virtual networks, and IP endpoints. Apstra expresses this security intent in an implementation-independent way, then renders and deploys the equivalent enforcement configuration onto the appropriate devices and interfaces. In Apstra terminology, the outcome is an ACL applied at enforcement points, such as virtual network interfaces (SVIs/IRBs) for east-west controls and border leaf interfaces for external-to-internal controls.

Therefore, the two correct policy types in this context are access control lists (ACLs) and firewall filters. “ACL” is the abstract policy object Apstra compiles and applies, while on Junos v24.4 the concrete enforcement mechanism for stateless packet filtering on interfaces is typically implemented as a firewall filter. Apstra automatically places these rendered ACLs/filters where needed: when you add VXLAN endpoints (such as expanding a rack/leaf in a VN), the ACL is placed on the corresponding VN interface; when you add external connectivity points, relevant ACLs are placed on the border leaf enforcement points. This automation ensures that security intent remains consistent as the fabric scales or changes, reducing the risk of manual rule drift. In contrast, filter-based forwarding / policy-based routing changes forwarding decisions rather than expressing permit/deny security intent, and is not the primary mechanism used by Apstra Security Policies for reachability control.

In Apstra 5.1, the correct operational method to gracefully remove a switch from service for maintenance is to set its Deploy Mode to Drain. Drain is a day-2 operational control that tells Apstra to adjust intent so the fabric can continue operating while the targeted device is logically taken out of service as much as the design allows. This is especially relevant in EVPN-VXLAN leaf-spine fabrics where taking down a spine or a leaf can disrupt underlay BGP adjacencies and overlay reachability if traffic is not shifted first.

This action is performed from the blueprint’s Active view because Drain affects the currently deployed, running fabric state (not a staged design change). Selecting the device under Active and changing Deploy Mode to Drain initiates the workflow that prepares the device for maintenance by reducing its role in forwarding and/or withdrawing dependent services according to the blueprint’s modeled redundancy (for example, shifting server-facing traffic to an MLAG/ESI peer where applicable, or reducing reliance on the device for transit). After the device is drained, an OS upgrade can be performed with less impact, and the device can later be returned to service by switching Deploy Mode back to Deploy and committing the change.

The “Upgrade” action is not the deploy-mode mechanism described for graceful removal; the key is Deploy Mode → Drain from Active, which is explicitly intended for maintenance and decommissioning scenarios.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/device-drain.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-drain-mode/apstra-drain-mode-guide/topics/concept/apstra-drain-mode-activate-or-disable-drain.html

In Apstra 5.1, off-box agents and analytics services are delivered as containerized workloads that consume CPU and memory within the Apstra cluster. When these workloads are concentrated on the controller node, the controller can become resource-constrained, impacting overall responsiveness and scaling limits. The supported architectural solution is to add a worker node (worker VM) and allow Apstra to place offbox (and, if applicable, iba) containers on that worker. This increases cluster capacity and shifts runtime load away from the controller, which should remain focused on core control-plane and management functions.

Juniper’s sizing guidance also treats worker nodes as the scalable unit for off-box agent growth: each VM node (controller or worker) supports a bounded number of off-box agents, and when one VM is insufficient, the prescribed approach is to increase capacity by adding worker nodes to the Apstra VM cluster. This method scales horizontally and avoids overloading the controller with operational containers.

While increasing CPU/memory on the controller might help temporarily, the documented design pattern for sustained growth is to distribute the off-box workloads across worker nodes. Switching to on-box agents is a different operational model and not the direct remediation for controller resource pressure in an off-box deployment.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-install-upgrade/topics/ref/apstra-server-resources.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/apstra-cluster-nodes.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/topic-map/apstra-cluster-nodes.html

In Apstra 5.1 multitenancy, tenants are modeled as routing zones, and each routing zone maps to a distinct VRF to provide strict Layer 3 isolation. Because each tenant’s VRF is separate, “routing between tenants” is effectively inter-VRF routing. Apstra’s routing-zone behavior emphasizes that inter-tenant routing is achieved via external systems: you connect each tenant/routing zone to an external router or firewall (often attached to border leafs), and that external device performs the policy-controlled inter-VRF routing between tenants. This approach is the most common because it centralizes security and compliance controls (stateful inspection, zone policies, NAT, logging) on the firewall/router while keeping the fabric clean and consistent.

A second method is to perform inter-VRF routing on a VTEP-capable border leaf that terminates the tenant VRFs. In EVPN-VXLAN designs, border leafs are frequently the demarcation where tenant VRFs connect to outside domains; when the same border leaf hosts multiple tenant VRFs and is designed to provide L3 services for them, it can act as the routing point between VRFs (subject to your design and security requirements). Junos v24.4 supports VRFs and policy constructs required for controlled route exchange and forwarding behavior, but Apstra’s intent model still expects routing-zone isolation by default—so any inter-tenant connectivity should be explicitly designed and governed, typically at the border.

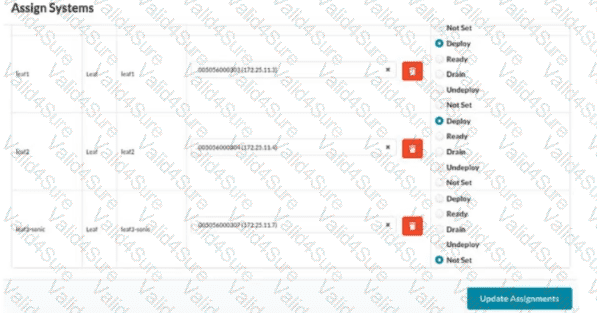

Apstra deploy modes control how far a device progresses in the configuration lifecycle and whether it becomes active in the fabric. If you must keep leaf3-sonic present in the blueprint (modeled, cabled, and available for future use) but you do not want it to participate in IP-fabric routing, you use modes that keep the device not active.

Ready mode assigns the device to the blueprint and applies only “Ready (Discovery 2)” level configuration—hostnames, interface descriptions, and port speed/breakout settings—while explicitly keeping the device out of fabric routing. In this mode, Apstra does not configure routing/BGP or L3 interface addressing for the IP fabric, so the switch is staged and visible for validation (for example, LLDP wiring checks) but does not forward as part of the Clos underlay.

Undeploy mode removes the complete Apstra service configuration from the device. Operationally, this also ensures the device is not active in the fabric. It is commonly used when a device must be retained in the blueprint inventory/topology but should not be participating (for example, temporarily withdrawn, decommission preparation, or held as a spare).

By contrast, Deploy makes the device active (full rendered fabric configuration, including BGP), and Drain is a maintenance state used to gracefully remove traffic from an already-active device rather than a state for keeping it non-participatory from the outset.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/topic-map/device-config-lifecycle.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/topic-map/device-config-lifecycle.html

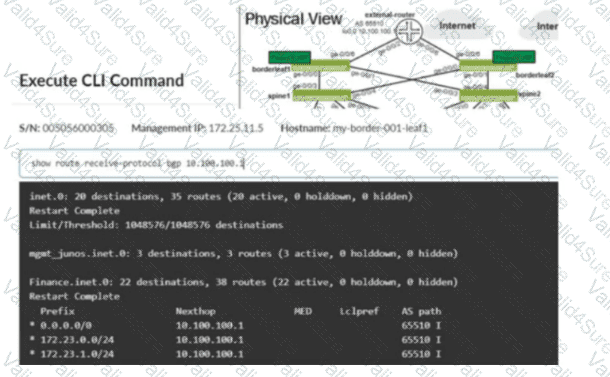

The exhibit shows the border leaf receiving multiple routes via BGP from the external router, including 172.23.x/24 prefixes, and those routes appearing in the Finance VRF routing table. To stop these routes from being installed in the Finance table, you must change what the border leaf imports from that eBGP session. In Apstra, this control is implemented through a Routing Policy attached to the protocol session described by the connectivity template. By setting the Import Policy to accept default route only, Apstra renders Junos policy so that only 0.0.0.0/0 is imported into the VRF, while the 172.23.x/24 prefixes are rejected and therefore never installed in Finance.inet.0.

Option C is a common trap: the “Expect Default IPv4 Route” setting is an assurance expectation—it generates an expectation/anomaly if the default route is missing, but it does not change device configuration or filtering behavior. Export-policy changes (option D) would only affect what the border leaf advertises outbound to the external router, not what it learns inbound. Aggregation (option A) does not prevent installation of the specific learned /24s; it changes advertisement behavior rather than import filtering. The correct fix is to tighten the import policy on that external eBGP session.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/routing-policies.html

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/concept/routing-policies.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/connectivity-templates.html

In Juniper Apstra 5.1, tags are a lightweight metadata mechanism used to classify objects and enable conditional automation (for example, driving dynamic configlets or simplifying filtering/searching in the UI). Apstra supports tagging several blueprint-operational objects that commonly participate in day-1/day-2 workflows.

Virtual networks can be tagged so operators can group, search, and apply automation consistently across sets of segments. This is useful in EVPN-VXLAN fabrics where virtual networks represent VLAN- or VXLAN-backed broadcast domains and you may want policies or configlet logic to apply to all “finance” or “pci” segments as a group.

Interfaces can be tagged directly within a blueprint (for example, leaf access ports, uplinks, or specific border-facing ports). Interface tags are often used to drive template-based configuration behavior and to simplify operational actions across many ports without relying on fragile naming conventions.

Generic systems (internal or external) can also be tagged. Apstra documentation explicitly describes using tags to specify roles for internal generic systems, enabling you to differentiate server types or attachment roles and then apply the correct intent (connectivity templates, VN attachments, or policies) in a repeatable way.

By contrast, property sets are structured data objects used for parameterization (YAML/JSON values for templates/probes), and device profiles describe hardware/NOS capabilities; they are not the standard blueprint objects for tag assignment in this scenario.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/tag-virtual-network-update.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/tag-interface-add-remove-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html

In Apstra 5.1, a logical device defines the abstract port layout and capabilities (including supported speeds), while an interface map binds that abstract port layout to the real, vendor-specific front-panel ports. Rack types then consume logical devices and interface maps to model the rack’s leaf/superspine roles. Once a logical device is referenced by interface maps and used inside rack types (and potentially templates that instantiate those rack types), Apstra treats the combination as a consistent contract: port counts, roles, and speeds must remain semantically valid for every object that depends on it.

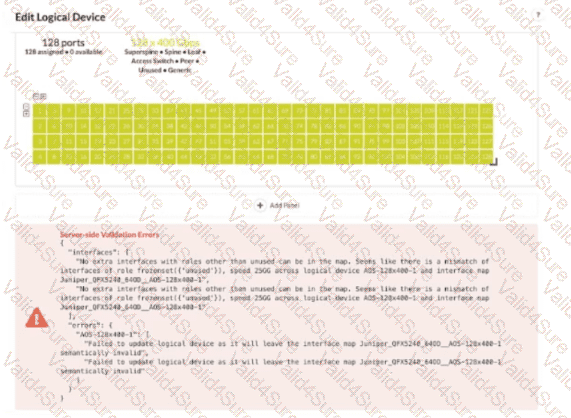

The exhibit’s validation error indicates that after changing interface speeds on the logical device, the existing interface map(s) and their usage in rack types no longer match the logical device definition (for example, the map expects certain ports/speeds/roles, but the updated logical device would leave the map invalid). Because the logical device is being consumed in multiple places, the safest and required way to remove the error is to remove all dependencies—templates (if they reference the rack types), rack types, and interface maps—so Apstra can accept the new logical device definition without violating existing mappings. After updating the logical device, you then recreate or update the interface maps and re-associate them with the rack types/templates so the entire chain remains consistent under the new speed requirements.
