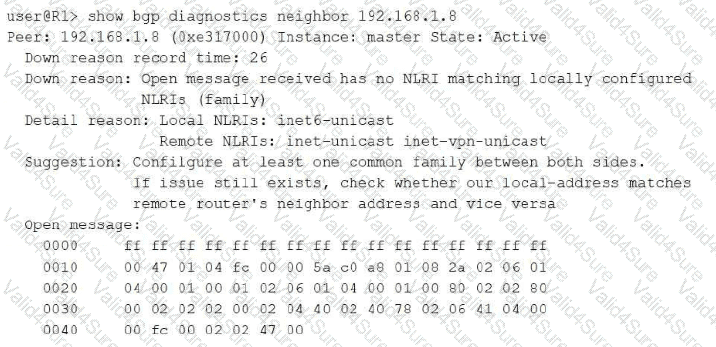

The diagnostic output explicitly states the root cause: the local router has only the inet6-unicast address family configured for this peer, while the remote router advertised inet-unicast and inet-vpn-unicast in its OPEN message, and BGP requires at least one common negotiated address family (NLRI type) between two peers for a session to remain established; with zero overlap between the two sides' configured families, the session is torn down immediately after the OPEN exchange, which is precisely why the peer state shows Active rather than Established. This confirms the mismatched-address-family statement directly and unambiguously from the exhibit's own Down reason and Detail reason fields. The diagnostic tool's own embedded Suggestion text goes further, explicitly advising the administrator to additionally verify that the local-address configured for the peer matches the remote router's configured neighbor address and vice versa — a secondary, commonly encountered condition in which mismatched or effectively duplicated/incorrect address bindings between the two sides' neighbor statements can independently prevent a session from completing correctly, even once the family mismatch is resolved. This is why address-configuration consistency between the peers is flagged as a second concern worth checking in this scenario. Nothing in the exhibit references NTP or time synchronization at all, nor does anything in the output reference authentication, an MD5 mismatch, or any related failure signature; both of those conditions would present through entirely different diagnostic messages than the one shown here. Reference topics: Junos Enterprise Routing – BGP, Address Family Negotiation and the show bgp diagnostics neighbor Command.

The show ethernet-switching table command displays the Layer 2 forwarding database (the bridge or MAC table) that an EX Series switch builds dynamically by inspecting the source MAC address of every frame it receives. Each entry records the learned MAC address, the VLAN it was learned on, the type of entry (dynamic, static, or persistent), and the specific interface through which that address was seen, which is precisely the information needed to confirm whether the switch has learned the host connected to ge-0/0/3. If the host's MAC address is absent from the table, that immediately points to a Layer 1/2 issue — no frames have been received from the host, a cabling or port problem exists, or the interface is administratively down or blocked by spanning tree — rather than a Layer 3 routing or VLAN membership problem. show interfaces terse only reports administrative and link state along with any assigned protocol family addresses, offering no MAC-learning visibility. show vlans lists VLAN definitions and their member interfaces but does not display learned host addresses. show interfaces extensive provides detailed physical-layer counters and error statistics, useful for diagnosing frame loss or interface errors, but it does not expose the switching table. For intra-VLAN reachability troubleshooting, verifying MAC learning is always the first and most direct Layer 2 checkpoint. Reference topics: Junos Enterprise Switching – Layer 2 Switching Fundamentals, Monitoring the Ethernet Switching Table.

Layer 2 MAC learning on an EX Series switch, as on any standard Ethernet bridge, is a passive, frame-driven process rather than an active polling or query-based mechanism. Every time a frame arrives on any interface, the switch inspects the frame's source MAC address field and, if that address is not already present in the Ethernet switching (bridge) table for the associated VLAN, creates a new dynamic entry recording the source MAC address, the VLAN it was learned on, and the specific ingress interface through which the frame arrived. Junos also stamps each learned entry with an aging timestamp, which is refreshed every time a subsequent frame from that same source MAC is received; entries that receive no refreshing traffic within the configured MAC aging interval (300 seconds by default) are eventually purged from the table to keep it current and to reclaim table space from hosts that have moved or gone offline. This source-address-driven, per-frame learning process happens continuously and automatically with no dependency on spanning-tree state changes — although a topology change notification can trigger accelerated aging of the table to flush potentially stale entries faster, learning itself is not gated by or contingent upon such an event occurring. The switch never learns addresses from the destination field of a frame, since the destination address, if already known, is used purely for the forwarding lookup decision, not for populating new table entries. Reference topics: Junos Enterprise Switching – Layer 2 Switching Fundamentals, Source MAC Learning and Table Aging.

A BGP NOTIFICATION message is one of the four core message types defined in RFC 4271, alongside OPEN, UPDATE, and KEEPALIVE, and it serves a very specific and narrow purpose within the protocol: whenever a BGP speaker detects an unrecoverable, fatal condition in the session — such as a malformed OPEN message, an unsupported capability, a hold-timer expiration, a finite-state-machine error, or an administratively initiated reset — it transmits a NOTIFICATION message to its peer immediately before closing the underlying TCP connection and tearing down the session entirely. This confirms that a NOTIFICATION always signals the termination of the session upon a fatal error, never a routine, in-session update. Structurally, every NOTIFICATION message carries a defined error code and error subcode field, which together precisely classify the category and specific nature of the fault that triggered the termination (for example, 'Cease' with a subcode indicating administrative shutdown, or 'Update Message Error' with a subcode indicating a malformed attribute), giving the receiving peer's administrator concrete diagnostic information about exactly why the session was torn down. Updating route attributes while keeping a session alive is the role of the UPDATE message, not NOTIFICATION, and refreshing a neighbor's table without resetting the session describes the optional Route Refresh capability (a separate, distinct BGP mechanism), neither of which describes NOTIFICATION's function. Reference topics: Junos Enterprise Routing – BGP, BGP Message Types and the NOTIFICATION Message.

RSTP, as defined in IEEE 802.1w, introduces explicit, well-defined port roles that go beyond legacy 802.1D STP's simpler root/designated/blocking model, and the alternate port role is one of RSTP's key refinements. An alternate port is a port that receives BPDUs from a bridge other than the one through which the local switch's actual root port reaches the root bridge — in other words, it represents a second, redundant path toward the root bridge learned from a different upstream bridge than the one currently providing the best (root port) path. Because the existing root port already provides the lowest-cost, actively used path to the root, the alternate port is deliberately held in the discarding (non-forwarding) state during normal, stable operation, functioning purely as a pre-computed, ready-to-use backup; critically, RSTP's major performance advantage over legacy STP is that if the current root port fails, the switch can transition its alternate port directly and almost instantly into the forwarding root port role without needing to pass through the lengthy listening and learning timer-based states that classic STP required, since the alternate port's suitability as a backup was already continuously verified through ongoing BPDU reception. It is not simply 'not receiving BPDUs' (an alternate port receives BPDUs continuously, just inferior ones relative to the current root port), it is not itself the least-cost path (that describes the root port), and it does not forward based on designated-port overload, which is not a concept that exists in RSTP's port-role logic at all. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, RSTP Port Roles: Alternate and Backup Ports.
