• B is correct because duplex and speed settings are required to match on both participating devices. According to the Juniper Networks documentation1, all the interfaces in a LAG must have the same speed and be in full-duplex mode. This ensures that the LAG can operate as a single logical link without any performance or compatibility issues.
• C is correct because member links are not required to be contiguous ports. According to the Juniper Networks documentation2, you can group any Ethernet interfaces on a switch into a LAG, regardless of their physical location or slot number. This provides flexibility and scalability for configuring LAGs on switches.

• A is correct because dynamic ARP inspection (DAI) is a Layer 2 security feature that prevents ARP spoofing attacks. ARP spoofing is a technique that allows an attacker to send fake ARP messages to associate a spoofed MAC address with a legitimate IP address. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DAI validates ARP packets by checking the source MAC address and IP address against a trusted database, which is usually built by DHCP snooping1. DAI discards any ARP packets that do not match the database or have invalid formats1.
• C is correct because DHCP snooping is a Layer 2 security feature that prevents DHCP spoofing attacks. DHCP spoofing is a technique that allows an attacker to act as a rogue DHCP server and offer fake IP addresses and other network parameters to unsuspecting clients. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DHCP snooping filters DHCP messages by classifying switch ports as trusted or untrusted. Trusted ports are allowed to send and receive any DHCP messages, while untrusted ports are allowed to send only DHCP requests and receive only valid DHCP replies from trusted ports2. DHCP snooping also builds a database of MAC addresses, IP addresses, lease times, and binding types for each client2.

In BGP, routing policies are used to control the flow of routing information between BGP peers1.

Option C suggests that import policies are applied after the RIB-In table. This is correct because import policies in BGP are applied to routes that are received from a BGP peer, before they are installed in the local BGP Routing Information Base (RIB-In)1. The RIB-In is a database that stores all the routes that are received from all peers1.

Option D suggests that export policies are applied after the RIB-Local table. This is correct because export policies in BGP are applied to routes that are being advertised to a BGP peer, after they have been selected from the local BGP Routing Information Base (RIB-Local)1. The RIB-Local is a database that stores all the routes that the local router is using1.

Therefore, options C and D are correct.

• A is correct because RSTP alternate ports block traffic while receiving superior BPDUs from a neighboring switch. An alternate port is a backup port for a root port, which means it receives better BPDUs from another bridge than the current root port1. However, an alternate port does not forward any traffic, as it is in a discarding state2. It only listens to BPDUs and waits for the root port to fail. If the root port fails, the alternate port can immediately transition to a forwarding state and become the new root port1.
• C is correct because RSTP alternate ports provide an alternate higher cost path to the root bridge. An alternate port is selected based on the same criteria as the root port, which are the lowest bridge ID, the lowest path cost, the lowest sender port ID, and the lowest receiver port ID3. However, an alternate port receives a higher cost BPDU than the root port, otherwise it would be the root port itself1. Therefore, an alternate port provides an alternate higher cost path to the root bridge than the root port.

OSPF DR/BDR election is a process that occurs on multi-access data links. It is intended to select two OSPF nodes: one to be acting as the Designated Router (DR), and another to be acting as the Backup Designated Router (BDR).The DR and BDR are responsible for generating network LSAs for the multi-access network and synchronizing the LSDB with other routers on the same network1.

The DR/BDR election is based on two criteria: the OSPF priority and the router ID. The OSPF priority is a value between 0 and 255 that can be configured on each interface participating in OSPF. The default priority is 1. A priority of 0 means that the router will not participate in the election and will never become a DR or BDR. The router with the highest priority will become the DR, and the router with the second highest priority will become the BDR. If there is a tie in priority, then the router ID is used as a tie-breaker. The router ID is a 32-bit number that uniquely identifies each router in an OSPF domain.It can be manually configured or automatically derived from the highest IP address on a loopback interface or any active interface2.

In this scenario, all routers have the same priority of 1, so the router ID will determine the outcome of the election. The router IDs are shown in the exhibit as RID values. The highest RID belongs to R4 (10.10.10.4), so R4 will become the DR. The second highest RID belongs to R3 (10.10.10.3), so R3 will become the BDR.

References:

1:OSPF DR/BDR Election: Process, Configuration, and Tuning2:OSPF Designated Router (DR) and Backup Designated Router (BDR)

• A is correct because generated routes require a contributing route. A contributing route is a route that matches the destination prefix of the generated route and has a valid next hop1. A generated route is only installed in the routing table if there is at least one contributing route available2. This ensures that the generated route is reachable and useful. If there is no contributing route, the generated route is not added to the routing table2.
• B is correct because generated routes show a next hop in the routing table. A generated route inherits the next hop of its primary contributing route, which is the most preferred route among all the contributing routes2. The next hop of the generated route can be either an IP address or an interface name, depending on the type of the contributing route2. The next hop of the generated route can also be modified by a routing policy3.

To isolate management traffic in a non-default routing-instance on Junos-based devices, you can use the set system management-instance and set routing-instances mgmt_junos commands12.

• set system management-instance: This command associates the management interface (usually named fxp0 or em0 for Junos OS, or re0:mgmt-* or re1:mgmt-* for Junos OS Evolved) with the non-default virtual routing and forwarding (VRF) instance1. After you configure the non-default management VRF instance, management traffic no longer has to share a routing table with other control traffic or protocol traffic1.
• set routing-instances mgmt_junos: This command creates a new routing instance named mgmt_junos. The name of the dedicated management VRF instance is reserved and hardcoded as mgmt_junos; you cannot configure any other routing instance by the name mgmt_junos1.

Therefore, options C and D are correct. Options A and B are not correct because they attempt to assign an interface to the mgmt_junos routing instance, which is not necessary for isolating management traffic1.

• The output shown in the exhibit is a brief display of the Ethernet switching table, which shows the learned Layer 2 MAC addresses for each VLAN and interface1.
• The command show ethernet-switching table displays the Ethernet switching table with brief information, such as the destination MAC address, the VLAN name, the forwarding state, and the interface name1.
• The command show route forwarding-table displays the routing table information for each protocol family, such as inet, inet6, mpls, iso, and so on2. It does not show the Ethernet switching table or the MAC addresses.
• The command show ethernet-switching table extensive displays the Ethernet switching table with extensive information, such as the destination MAC address, the VLAN name, the forwarding state, the interface name, the VLAN index, and the tag type1. It shows more details than the brief output shown in the exhibit.
• The command show route forwarding-table family ethernet-switching displays the routing table information for the ethernet-switching protocol family, whichshows the destination MAC address, the next-hop MAC address, and the interface name3. It does not show the VLAN name or the forwarding state.

A firewall filter is a configuration that defines the rules that determine whether to forward or discard packets at specific processing points in the packet flow. A firewall filter can also modify the attributes of the packets, such as priority, marking, or logging. A firewall filter can be applied to various interfaces, protocols, or routing instances on a Juniper device1.

A firewall filter has a family attribute, which specifies the type of traffic that the filter can evaluate. The family attribute can be one of the following: inet, inet6, mpls, vpls, iso, or ethernet-switching2. The family inet firewall filter is used to evaluate IPv4 traffic, which is the most common type of Layer 3 traffic on a network.

To create a family inet firewall filter, you need to specify the appropriate match criteria and actions for each term in the filter. The match criteria can include various fields in the IPv4 header, such as source address, destination address, protocol, port number, or DSCP value. The actions can include accept, discard, reject, count, log, policer, or next term3.

To apply a firewall filter to Layer 3 traffic that is being sent between VLANs, you need to apply the filter to the appropriate IRB interface. An IRB interface is an integrated routing and bridging interface that provides Layer 3 functionality for a VLAN on a Juniper device. An IRB interface has an IP address that acts as the default gateway for the hosts in the VLAN. An IRB interface can also participate in routing protocols and forward packets to other VLANs or networks4.

Therefore, option C is correct, because you should create a family inet firewall filter with the appropriate match criteria and actions. Option D is correct, because you should apply the firewall filter to the appropriate IRB interface.

Option A is incorrect, because you should not create a family ethernet-switching firewall filter with the appropriate match criteria and actions. A family ethernet-switching firewall filter is used to evaluate Layer 2 traffic on a Juniper device. A family ethernet-switching firewall filter can only match on MAC addresses or VLAN IDs, not on IP addresses or protocols5.

Option B is incorrect, because you should not apply the firewall filter to the appropriate VLAN. A VLAN is a logical grouping of hosts that share the same broadcast domain on a Layer 2 network. A VLAN does not have an IP address or routing capability. A firewall filter cannot be applied directly to a VLAN; it must be applied to an interface that belongs to or connects to the VLAN6.

References:

1: Firewall Filters Overview 2: Configuring Firewall Filters 3: Configuring Firewall Filter Match Conditions and Actions 4: Understanding Integrated Routing and Bridging Interfaces 5: Configuring Ethernet-Switching Firewall Filters 6: Understanding VLANs

In BGP, the path selection process is based on a set of attributes1. The process starts by preferring the path with the highest weight, then the highest local preference, then the locally originated routes, and so on1. If all these attributes are the same, then it prefers the path with the shortest AS path1.

Referring to the exhibit, all four ISPs have the same weight, local preference, and origin1. However, ISP 4 has the shortest AS path1. Therefore, ISP 4 will be selected as the active path. So, option C is correct.

• A is correct because IBGP updates the next-hop attribute to ensure reachability within an AS. This is because the next-hop attribute is the IP address of the router that advertises the route to a BGP peer. If the next-hop attribute is not changed by IBGP, it would be the IP address of an external router, which may not be reachable by all routers within the AS. Therefore, IBGP updates the next-hop attribute to the IP address of the router that received the route from an EBGP peer1.
• B is correct because IBGP peers advertise routes received from EBGP peers to other IBGP peers. This is because BGP follows the rule of advertising only the best route to a destination, and EBGP routes have a higher preference than IBGP routes. Therefore, IBGP peers advertise routes learned from an EBGP peer to all BGP peers, including both EBGP and IBGP peers1.

• Option A is correct. The storm control feature is enabled in the factory-default configuration on EX Series switches12. On EX2200, EX3200, EX3300, EX4200, and EX6200 switches, the factory default configuration enables storm control for broadcast and unknown unicast traffic on all switch interfaces2. On EX4300 switches, the factory default configuration enables storm control on all Layer 2 switch interfaces1.
• Option B is incorrect. The storm control feature does not require a special license on EX Series switches34.
• Option C is incorrect. There’s no information available that suggests the storm control feature is not supported on aggregate Ethernet interfaces.
• Option D is incorrect. The storm control configuration applies to traffic at the ingress of an interface5, not just between the forwarding and control plane.

Aggregate routes are used for advertising summarized network prefixes12. They help minimize the number of routing tables in an IP network by consolidating selected multiple routes into a single route advertisement1. This approach is in contrast to non-aggregation routing, in which every routing table contains a unique entry for each route1.

Therefore, option D is correct. Options A, B, and C are not correct because:

• Aggregate routes can be used with both static routing and dynamic routing protocols1.
• Aggregate routes are not automatically generated for all of the subnets in a routing table. They need to be manually configured1.
• Aggregate routes are not always preferred over more specific routes. The route selection process in Junos OS considers several factors, including route preference and metric, before determining the active route1.

Option A is correct. Creating multiple areas in OSPF can help to reduce the convergence time . This is because changes in one area do not affect other areas, so fewer routers need to run the SPF algorithm in response to a change.

Option D is correct. Creating multiple areas in OSPF can help to reduce Link State Advertisement (LSA) flooding across the network. This is because LSAs are not flooded out of their area of origin.

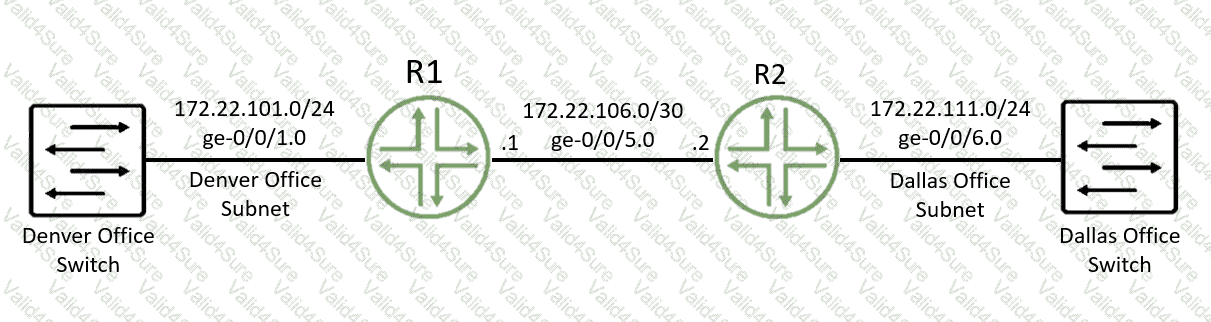

In OSPF, the Designated Router (DR) and Backup Designated Router (BDR) are elected based on the priority of the routers1. The router with the highest priority becomes the DR, and the router with the second highest priority becomes the BDR1. If there is a tie in priority, then the router with the highest Router ID is chosen1.

In this scenario, R2 has a higher priority (64) than R1 (32), so R2 will become the DR1. Since R1 has the second highest priority, it will become the BDR1. Therefore, option D is correct.

 In a Rapid Spanning Tree Protocol (RSTP) topology, the root bridge is determined by the switch with the lowest bridge priority value12. If all switches have the same priority, then the root bridge is assigned to the switch whose MAC address’s hex value is the lowest2. The default bridge priority value is 3276832. However, without the actual exhibit, it’s difficult to definitively determine which device is the root bridge. But based on the options provided, if we assume that the local device has a lower bridge priority or a lower MAC address than other devices in the network, then it could be considered as the root bridge for this RSTP topology45.
