By default, local-out traffic does not use SD-WAN → FortiGate normally sends local-out traffic (e.g., DNS, NTP, FortiGuard updates) directly through its interfaces without applying SD-WAN rules.

You must configure each local-out feature individually to use SD-WAN → To steer local-out traffic via SD-WAN, you must explicitly configure the desired local-out features (e.g., DNS, FortiGuard, CAPWAP) to use SD-WAN rules.

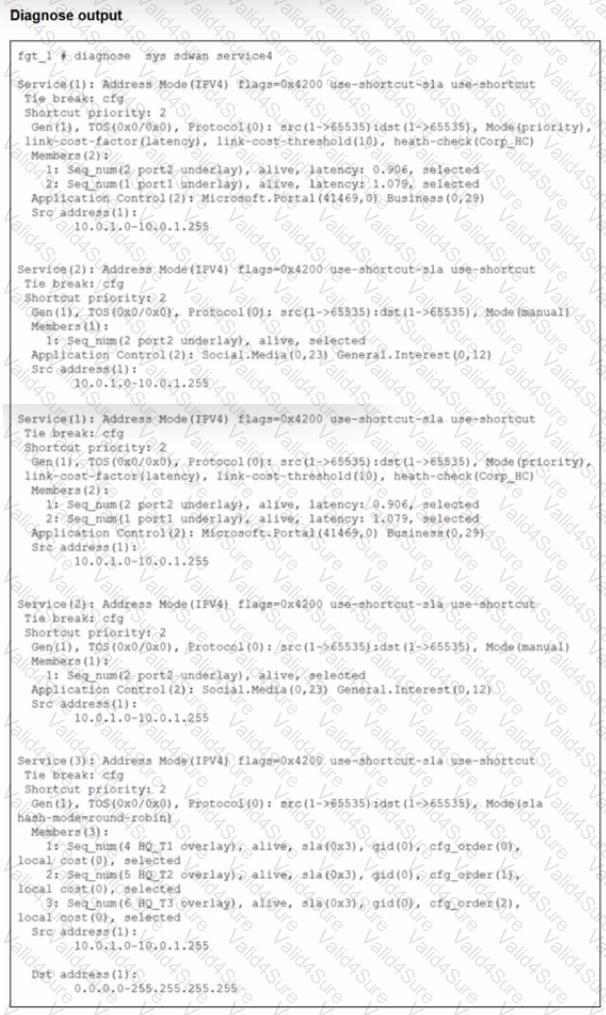

Application-based SD-WAN rules enable intelligent traffic steering. The guide specifies:

"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification."

This guarantees both performance and resilience.

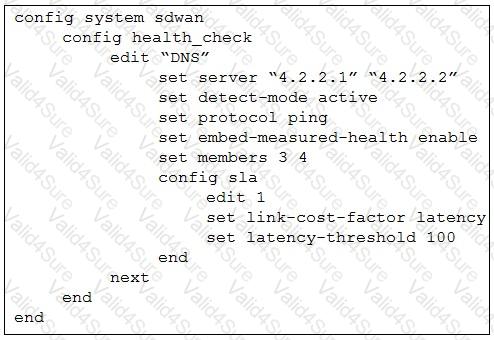

The hub must use a performance SLA with the same criteria as the spoke's health check. The spoke's health check is using ping (protocol ping) and measuring latency (link-cost-factor latency). For the hub to use the data sent by the spoke, its performance SLA must be configured to measure the same metrics. If the hub is looking for jitter or packet loss, it will not use the latency data sent by the spoke.

When a spoke sends embedded health data, the hub FortiGate must be configured to receive and use it. This is done by setting set embedded-measure accept within the performance SLA configuration on the hub. This setting explicitly tells the hub to trust and use the performance metrics received from the remote FortiGate (the spoke). Without this setting, the hub will likely ignore the embedded health data and rely on its own health checks, which could lead to incorrect traffic prioritization.

When you enable ADVPN (auto-discovery VPN) in the overlay template, FortiManager automatically updates both the IPsec and BGP templates on the hub so that shortcut tunnels can be established dynamically.

ADVPN can be activated in the SD-WAN overlay template for any supported topology, including dual-hub primary–primary, not just single hub.

In FortiOS 7.6, static routes can reference either:

an SD-WAN zone (for example, virtual-wan-link or a user-defined SD-WAN zone), or

a specific SD-WAN member interface that belongs to that zone.

However, FortiOS enforces a routing constraint to avoid ambiguity during route resolution. Two static routes cannot have the same destination prefix if one points to an SD-WAN zone and the other points to an SD-WAN member within that zone. This would create an overlapping and conflicting forwarding decision.

Therefore, if you configure:

one static route that references an SD-WAN zone, and

another static route that references an SD-WAN member belonging to that same zone,

the destination subnets of the two static routes must be different.

Why the other options are incorrect:

Option A is incorrect because FortiOS does allow static routes that reference individual SD-WAN members.

Option B is incorrect because static routes can reference SD-WAN zones.

Option D is incorrect because static routing decisions in FortiOS are based on destination prefixes, not source prefixes.

Thus, the correct answer is C.

For a large-scale SD-WAN deployment (such as 1000 spokes) where ADVPN shortcut routing is required and some remote sites connect via FortiSASE, the recommended overlay routing configuration is BGP running on loopback interfaces, combined with dynamic BGP for ADVPN shortcut routing. This design leverages the scalability and resilience of BGP, allowing dynamic discovery and route exchange necessary for shortcut tunnels between spokes in ADVPN environments. Using loopback interfaces for BGP peering is considered best practice because it decouples routing protocol stability from physical link status, ensuring that if a physical underlay interface fails, the BGP session remains up as long as there’s an alternate path. With dynamic BGP, each spoke can efficiently learn the routes to other spokes and dynamically establish shortcuts, which is critical at this scale. This method also integrates smoothly with FortiSASE for remote connectivity to the SD-WAN hub, providing flexibility and centralized management.
