Question # 4

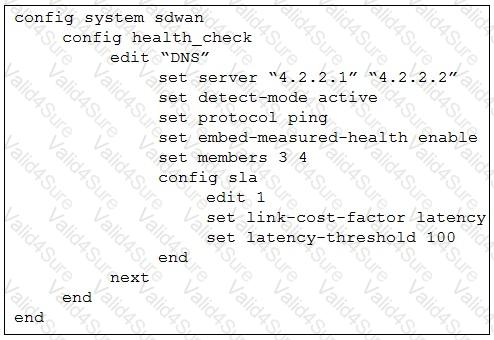

Refer to the exhibit.

The exhibit shows the health-check configuration on a FortiGate device used as a spoke. You notice that the hub FortiGate doesnâ€™t prioritize the traffic as expected.

Which two configuration elements should you check on the hub? (Choose two.)

The performance SLA has the parameter priority-out-sla configured.

This performance SLA uses the same members.

The performance SLA uses the same criteria.

The performance SLA is configured with set embedded-measure accept.

Full Access

Question # 5

You used the HUB IPsec_Recommended and the BRANCH IPsec_Recommended templates to define the overlay topology. Then, you used the SD-WAN template to define the SD- WAN members, rules, and performance SLAs.

You applied the changes to the devices and want to use the FortiManager monitors menu to get a graphical view that shows the status of each SD-WAN member.

Which statement best explains how to obtain this graphical view?

Use the SD-WAN monitor template view to get a map view of the branches, hub, and tunnel status, including the SLA pass or missed status.

Use the SD-WAN monitor table view to get a donut view and a table view that shows the status of each SD-WAN member, including the SLA pass or missed status.

Use the VPN monitor map view to get a map view of the branches, hub, and tunnel status, including the SLA pass or missed status.

Use the SD-WAN monitor asset view to get a donut view and a table view that shows the status of each device and the SLA status of each SD-WAN member.

Full Access

Question # 6

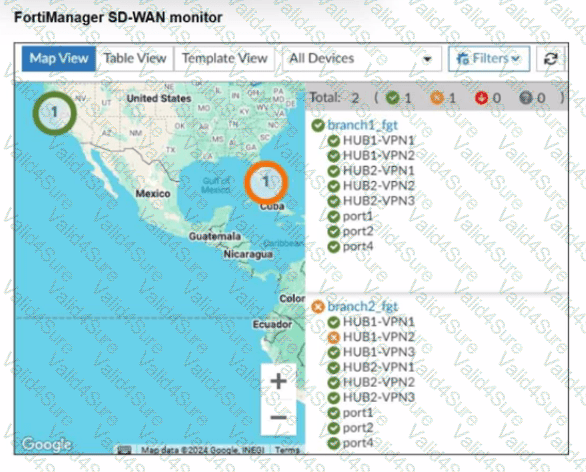

Refer to the exhibit.

An administrator checks the status of an SD-WAN topology using the FortiManager SD-WAN monitor menus. All members are configured with one or two SLAs.

Which two conclusions can you draw from the output shown? (Choose two.)

The template view should be used to see the hub devices.

One member of branch2_fgt is missing the SLAs.

branch2_fgt establishes six tunnels to the hubs and they are all up.

This SD-WAN topology contains only two branch devices.

Full Access

Question # 7

The SD-WAN overlay template helps to prepare SD-WAN deployments. To complete the tasks performed by the SD-WAN overlay template, the administrator must perform some post-run tasks. What are two mandatory post-run tasks that must be performed? (Choose two.)

Configure routing through the overlay tunnels created by the SD-WAN overlay template.

Create policy packages and assign them to the branch devices.

Assign a hub id metadata variable to each hub device.

Configure SD-WAN rules

Assign an sdwan_id metadata variable to each device (branch and hub)
