D-VXR-DY-01 Exam Dumps - Dell VxRail Deploy v2 Exam

Within a VxRail cluster operating on the Original Storage Architecture (OSA), optimizing storage capacity is driven by software-defined data efficiency policies. Starting with vSphere 7.0 Update 1, vSAN introduced the option to enable "Compression Only" as a distinct toggle from the combined "Deduplication and Compression" feature set. A fundamental architectural distinction between these two mechanisms lies in their operational scope and data reduction boundaries.

When the compression-only feature is active, data reduction algorithms execute strictly on a per-disk basis. This means blocks are evaluated and compressed locally before being written directly to that specific capacity drive, avoiding structural dependencies on adjacent drives or affecting the broader disk group cache-to-capacity relationship. In contrast, deduplication inherently requires a cross-device scope because it eliminates redundant data blocks across a larger logical boundary; hence, deduplication is applied to the entire disk group. For deduplication to occur, the hashing algorithms must track data signatures across all capacity drives tied to a specific caching drive within that given disk group. Consequently, deduplication carries a wider failure domain and distinct architectural requirements compared to localized per-disk compression profiles.

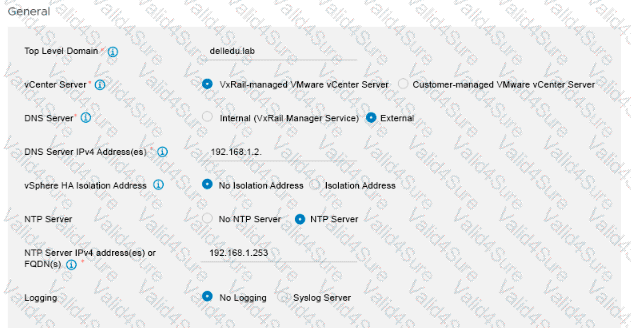

The exhibit illustrates the "General" settings section within the VxRail Deployment Wizard, where foundational infrastructure parameters are defined. Crucially, the radio button for "VxRail-managed VMware vCenter Server" is explicitly selected. In a VxRail deployment topology, choosing an internal, VxRail-managed vCenter server fundamentally changes how lifecycle management (LCM) operations are orchestrated for the cluster.

When a cluster is deployed with a VxRail-managed vCenter, the vCenter Server virtual appliance is tightly coupled with the VxRail Manager platform. This deep architectural integration guarantees that all future patch cycles, security definitions, and major platform upgrades for the vCenter Server are natively included within the unified VxRail composite update bundles. When an administrator applies an update package through the VxRail Manager dashboard, the orchestration engine automatically conducts pre-checks and applies the software versions to both the VxRail Manager and the vCenter Server in a fully automated, validated sequence. Conversely, infrastructure services configured as "External," such as the designated DNS or NTP servers, reside outside the VxRail ecosystem and are not targeted by VxRail lifecycle payloads. Therefore, the vCenter Server is the specific component captured in future update packages.

When designing and deploying a Dell VxRail cluster utilizing VMware vSAN 8 Express Storage Architecture (ESA), network throughput requirements are significantly higher than traditional Original Storage Architecture (OSA) deployments. The minimum required network speed for all traffic-bearing network interfaces assigned to the vSAN ESA data path is strictly defined as 25 Gbps. This mandatory speed profile is dictated by the architectural modifications inherent to ESA, which replaces the traditional two-tier disk group model with a unified, high-performance single-tier storage pool built exclusively on NVMe-based flash media.

Because data paths are optimized for parallel disk accesses, activities such as inter-node replication, active write mirroring, and data erasure coding over the network domain can easily overwhelm lower-bandwidth infrastructure. Running vSAN ESA over 1 Gbps or 10 Gbps uplinks is structurally prohibited because network-induced latency would bottleneck the NVMe performance capabilities and trigger cluster instability during host failovers or data rebuild cycles. Therefore, 25 Gbps represents the absolute minimum speed requirement to pass pre-deployment hardware validation gates.

Within a VMware vSAN-backed VxRail environment, cryptographic features are distinctly divided into Data-at-Rest Encryption and Data-in-Transit Encryption, each leveraging entirely different key exchange architectures. vSAN Data-at-Rest Encryption is implemented to safeguard data blocks residing within cache and capacity drives against physical media theft or unauthorized offline modifications. Because of its persistent state, Data-at-Rest Encryption strictly requires an integrated Key Provider solution—either an external, KMIP-compliant Key Management Server (KMS) or a VMware Native Key Provider—to generate, distribute, and protect the root Key Encryption Keys (KEKs).

In contrast, vSAN Data-in-Transit Encryption secures the active data packets migrating across the dedicated local vSAN transport network between cluster hosts. Data-in-Transit Encryption does not require a Key Management Server or any external Key Provider infrastructure. Instead, the participating ESXi hosts within the cluster leverage internal secure tokens to dynamically generate, rotate, and pass ephemeral session keys directly between one another as peer connections form. Other answers incorrectly define the cryptographic boundaries of data traffic or specify arbitrary rules for KMS placement that contradict core vSAN storage security profiles.

The Dell VxRail HCI System Software is a proprietary suite of integrated management, automation, and orchestration capabilities designed to simplify the operational lifecycle of hyperconverged infrastructure. Within this architectural ecosystem, VxRail Manager serves as the core software virtual appliance that contains and delivers these software capabilities.

VxRail Manager integrates directly with VMware vCenter Server to extend standard virtual environment oversight, offering an embedded control plane that manages automated hardware discovery, node additions, drive replacements, and non-disruptive software upgrades. While solutions like VMware Cloud Foundation or VMware Tanzu can be layered onto or integrated with the VxRail platform to provide cloud operating models and container orchestration, they are standalone VMware product portfolios rather than native software components of the core VxRail HCI system software suite itself. The automation and orchestration capabilities represent functional attributes delivered directly by the primary software component, which is the VxRail Manager appliance. Therefore, VxRail Manager represents the explicit internal engine driving the system software layer.
