A dedicated coordination group defines the exact collection of models that will participate in the specified coordination review. Assigning only the Architectural and Structural published models to that group limits clash processing to the required discipline pair and produces a clean, controlled result set aligned with the approved clash matrix.

Running clash detection across every model and filtering the results afterward is inefficient and may generate a large volume of irrelevant issues. It also makes reporting less precise because the underlying coordination space still includes trades that were explicitly intended to be excluded. Requesting other disciplines to remove views or models disrupts established publication workflows and may affect other coordination activities. Similarly, merging all models into one file and manually hiding elements eliminates clear model ownership and is not an appropriate cloud-coordination method.

Coordination groups allow the BIM manager to establish discipline-specific or package-specific clash tests without modifying the source models. Separate groups may be maintained for Architectural–Structural, Mechanical–Structural, Architectural–MEP, or other approved combinations.

Reference topics: Model Coordination; coordination groups; clash matrices; published design models; discipline-specific clash testing; federated-model governance.

===============

Copy/Monitor is designed to support both the initial creation and continuing coordination of critical datum elements between linked Revit models. Participating disciplines can copy the approved Levels and Grids from the authoritative architectural or structural model into their own models and establish monitored relationships to the source elements.

If the structural framing decision later changes floor-to-floor elevations or grid positions, Revit generates coordination-review notifications when the linked source model is reloaded. The receiving teams can then assess each change, postpone it where necessary, reject it, or update their corresponding datum elements through a controlled coordination process.

Shared Coordinates ensure that models occupy the correct common spatial position, but they do not monitor changes to individual Levels or Grids. Establishing a primary model in a collaboration platform supports information exchange but does not create element-level coordination relationships. Exporting reports and property information provides only a static record and would require manual comparison after every design revision.

The project must also establish which discipline owns the master datum elements and define how proposed changes are reviewed and approved before dependent teams modify their models.

Reference topics: Copy/Monitor; coordination review; Levels and Grids; datum ownership; linked-model change management; multidisciplinary Revit coordination.

The DWG should be cleaned in AutoCAD before it is accepted as a Revit link. Setting PROXYGRAPHICS=1 preserves graphical representations of custom or proxy objects so that applications without the originating object enabler can display the relevant geometry. PURGE ALL removes unused layers, blocks, linetypes, text styles, registered applications, and other unreferenced definitions that unnecessarily increase file complexity.

AUDIT identifies and repairs database errors, while OVERKILL removes duplicate or overlapping lines and can consolidate redundant geometry. Together, these operations reduce the amount of irrelevant data Revit must interpret when loading and regenerating the linked file.

Deleting every XREF may remove required design information, while changing fonts does not resolve database corruption or excessive geometry. Deleting all text and exploding all geometry is destructive and commonly increases the number of individual entities, making performance worse. Setting PROXYGRAPHICS=0 can prevent required custom-object representations from being retained for downstream display.

The cleaned DWG should also be limited to the required layers and extents, checked for correct units and coordinates, and linked rather than imported wherever feasible.

Reference topics: DWG preparation; linked versus imported CAD; PURGE; AUDIT; OVERKILL; proxy graphics; Revit model-performance management.

===============

The lighting team should correct the source CAD file so that it conforms to the project’s approved coordinate framework and then reissue it. External discipline files must be delivered with a predictable origin, orientation, and elevation that correspond to the architectural or designated site-control model. Correcting the source ensures that every recipient can link the file consistently and that subsequent updates retain the same placement.

Manually moving the linked CAD file in Revit creates an unmanaged instance offset. Although the file may appear aligned temporarily, reloading, replacing, or distributing it can reproduce the original problem or create inconsistent positioning among team members. Adding gridlines may help visually diagnose the offset but does not establish a reliable coordinate relationship.

Acquiring coordinates from the misaligned lighting file is particularly inappropriate because it would redefine the host model’s shared-coordinate relationship based on a non-authoritative and incorrectly positioned reference. The architectural or site model should remain the approved source of project positioning.

The BIM manager should provide the lighting team with the agreed coordinate protocol, reference model, control points, units, and required vertical datum, then validate the corrected file before accepting it for coordination.

Reference topics: Consultant file requirements; shared-coordinate governance; CAD-link positioning; authoritative coordinate sources; model exchange; coordination quality control.

===============

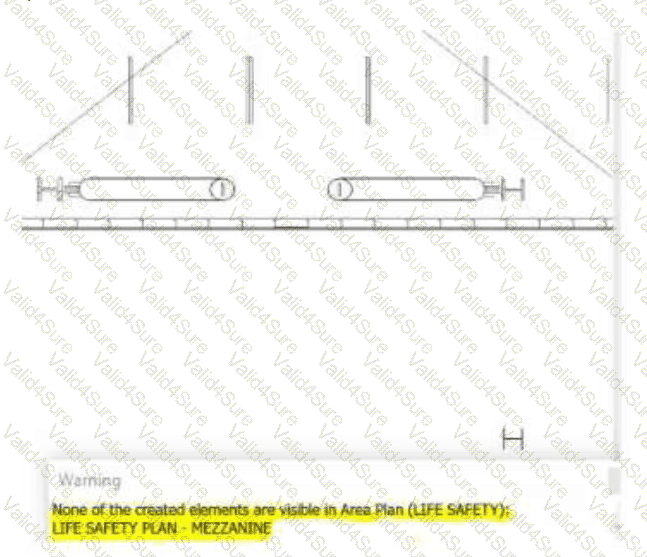

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============
