Server1 - Set-Item

Server4 - Enable-PSRemoting

To run a container on SRV1 using the mcr.microsoft.com/windows/servercore/iis image, publish port 60 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:60 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 60 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// :5001 in a web browser, where is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background.

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and press Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

In Azure File Sync architecture (covered in Administering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file share) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

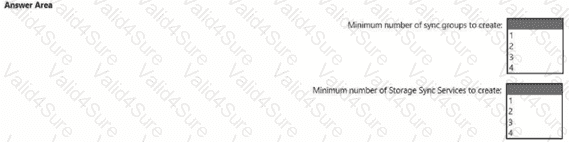

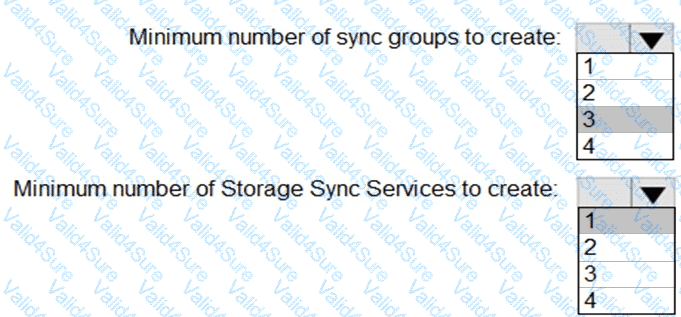

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

The exam materials explain that to add a new domain controller to an existing AD DS forest in Azure, you deploy a Windows Server IaaS VM and then promote it: “To extend on-premises AD DS into Azure, provision a Windows Server VM in Azure and run AD DS to create an additional domain controller for the existing domain.” Conversely, Azure Active Directory Domain Services (Azure AD DS) provides a managed domain that is separate from and not writable by your on-premises administrators—you “do not get domain admin rights or access to DCs”—so it cannot be used to add a DC (dc3.corp.fabrikam.com) to the existing corp.fabrikam.com forest. Azure AD Application Proxy and Azure AD administrative units are unrelated to deploying DCs. Therefore, the correct implementation is to deploy an Azure virtual machine in Vnet1, install AD DS/DNS, and promote it to become DC3 in the existing domain.

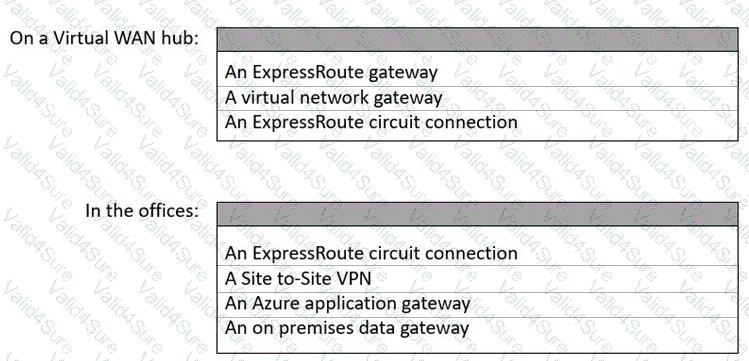

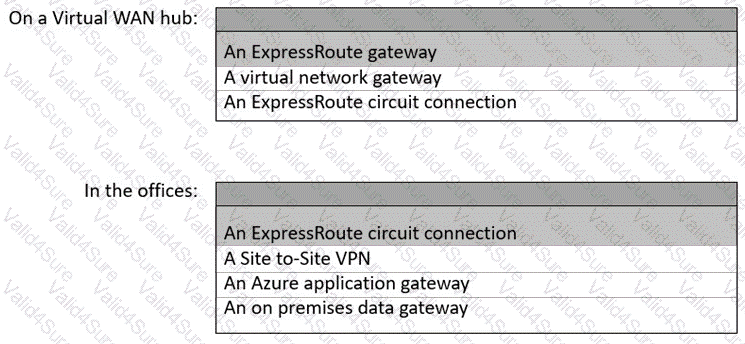

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1). The guides emphasize: “In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes across the hub to your virtual networks.”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.

One possible solution to ensure that all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server is to use the DHCP scope options. DHCP scope options are settings that apply to all DHCP clients that obtain an IP address from a specific scope. You can use the DHCP scope options to specify the DNS server IP address, as well as other parameters such as the default gateway, the domain name, and the DNS suffix. Here are the steps to configure the DHCP scope options on SRV1:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and click on IPv4.

In the right pane, right-click on the scope that you want to configure and select Properties.

In the Scope Properties dialog box, click on the DNS tab.

Check the box Enable DNS dynamic updates according to the settings below. This option allows the DHCP server to register and update the DNS records for the DHCP clients.

Select the option Always dynamically update DNS records. This option ensures that the DHCP server updates both the A and PTR records for the DHCP clients, regardless of whether they request or support dynamic updates.

Check the box Discard A and PTR records when lease is deleted. This option allows the DHCP server to delete the DNS records for the DHCP clients when their leases expire or are released.

Check the box Dynamically update DNS records for DHCP clients that do not request updates. This option allows the DHCP server to update the DNS records for the DHCP clients that do not support dynamic updates, such as legacy or non-Windows clients.

In the DNS servers section, click on the Add button to add a new DNS server IP address.

In the Add Server dialog box, enter the IP address of DC1, which is the DNS server that you want to use for the DHCP clients, and click Add.

Click OK to close the Add Server dialog box and return to the Scope Properties dialog box.

Click OK to apply the changes and close the Scope Properties dialog box.

Now, all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server. You can verify the DNS configuration by using the ipconfig /all command on a DHCP client computer and checking the DNS Servers entry. You can also check the DNS records for the DHCP clients by using the DNS Manager console on DC1.
