To prepare a Network Security Group (NSG) namedaz400-38443478-nsg1for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go toNetwork Security Groupsand click on+ Create.

Fill in the details, including the nameaz400-38443478-nsg1, and create the NSG.

ConfigureOutbound Security Rules:

Once the NSG is created, go to its settings.

Navigate toOutbound security rules.

Click on+ Addto create a new rule.

Set theDestination port rangesto443, which is the required port for Azure DevOps12.

Set theProtocoltoTCP.

Set theActiontoAllow.

Assign aPrioritynumber (e.g.,100) that does not conflict with existing rules.

Provide a meaningfulNamefor the rule (e.g.,AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the sameOutbound security rulessection, edit the default rule to deny alltraffic.

Change theActiontoDenyfor the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSGwith the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

To create an instance of Azure Application Insights namedaz400-38443478-mainand configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to theAzure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then selectCreate1.

Create an Azure Application Insights Instance:

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name isaz400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web Appaz400-38443478-main.

Under Monitoring, selectApplication Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

1. Open Microsoft Azure Portal

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

To enable streaming of diagnostic telemetry for asingle or a pooled database, follow these steps:

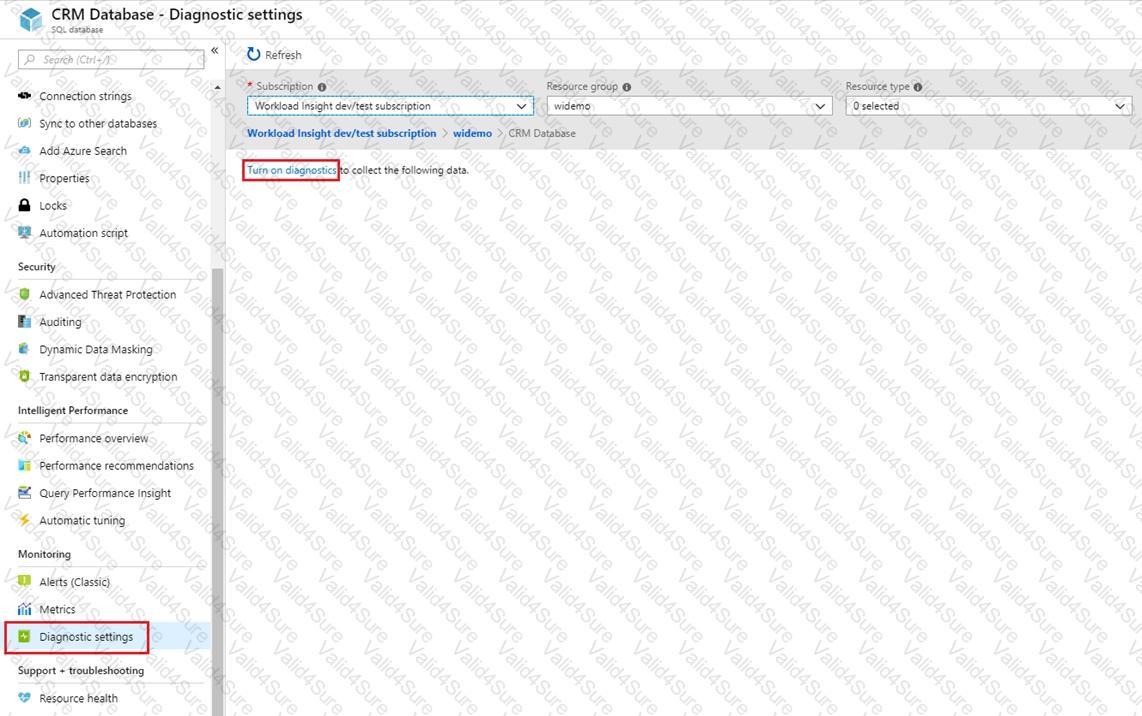

1. Go to Azure SQL database resource.

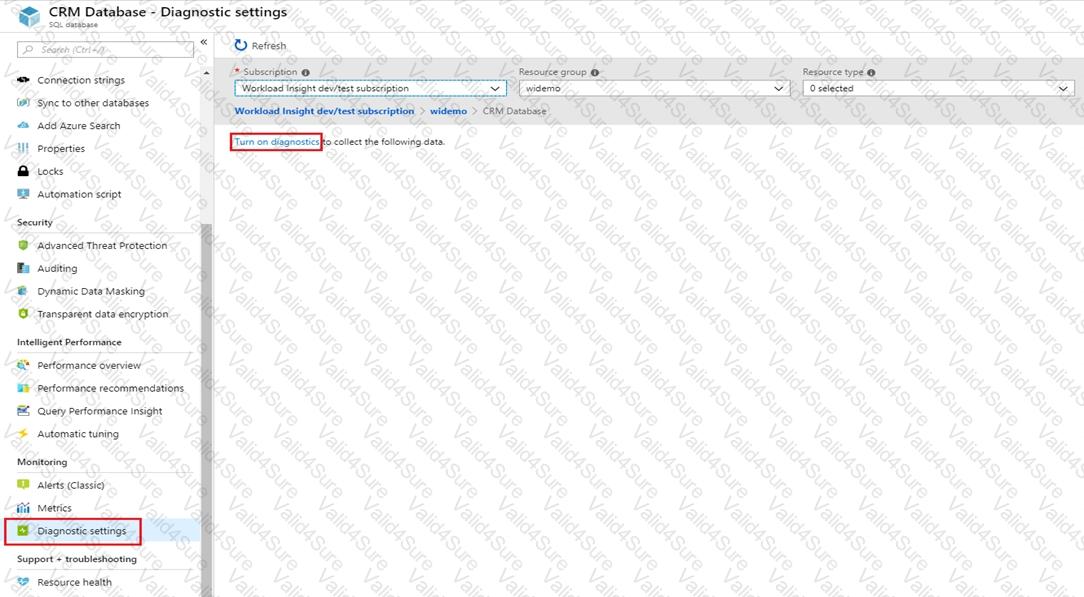

2. Select Diagnostics settings.

3. Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

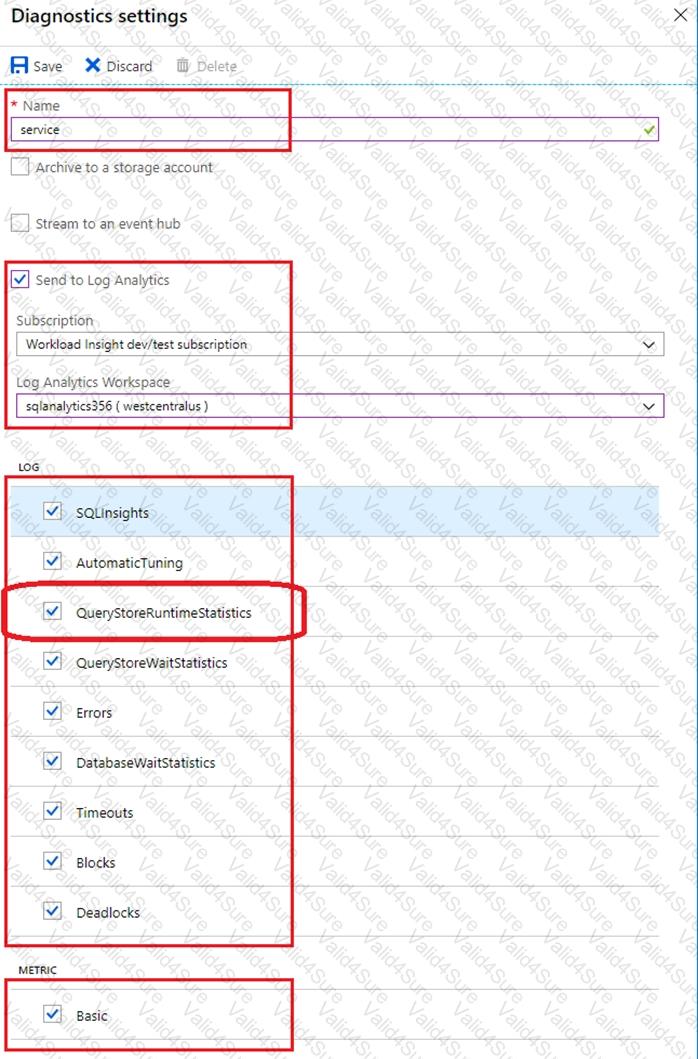

4. Select Add diagnostic setting to configure parallel streaming of diagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: Query Store Runtime Statistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. Select Save.
