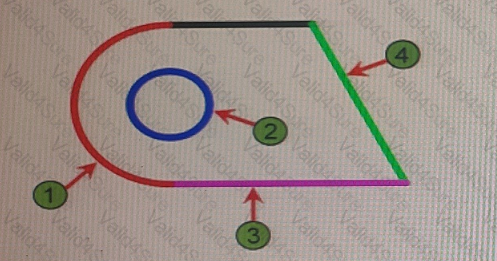

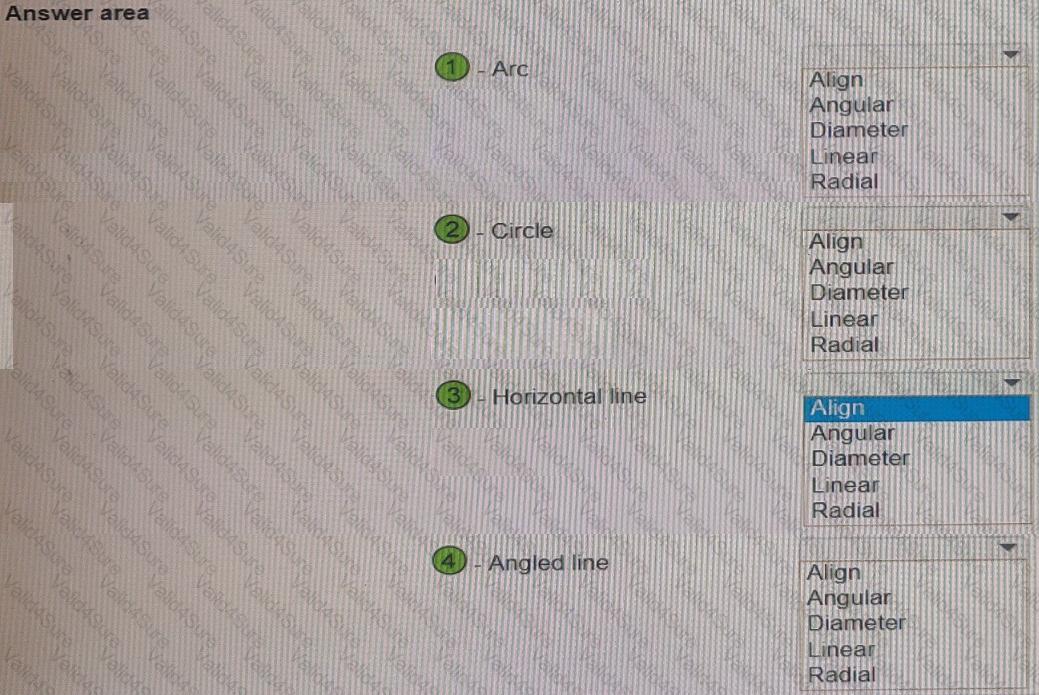

When you hover over the arc (1), you will see a radius dimension type preview.

When you hover over the circle (2), you will see a diameter dimension type preview.

When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.

When you hover over the angled line (4), you will see an angular dimension type preview.

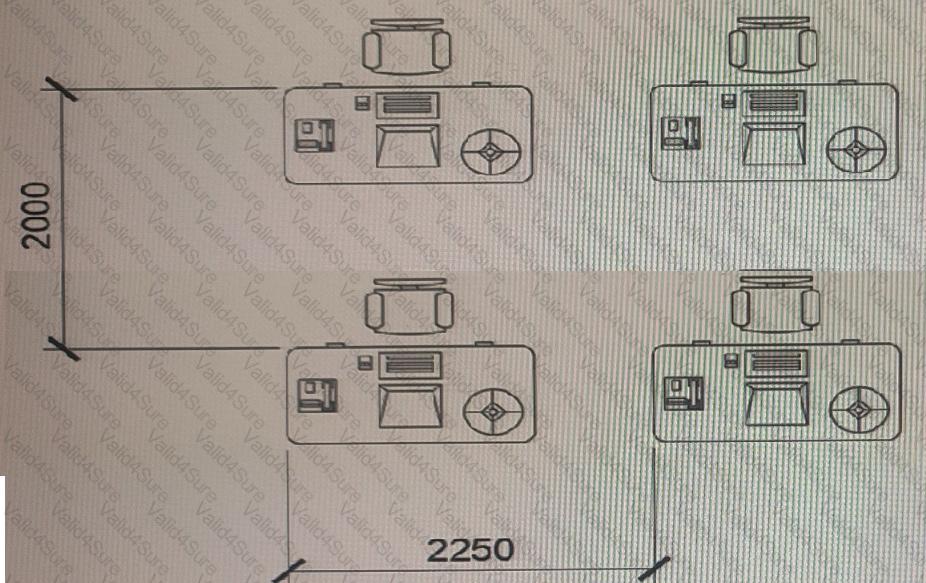

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

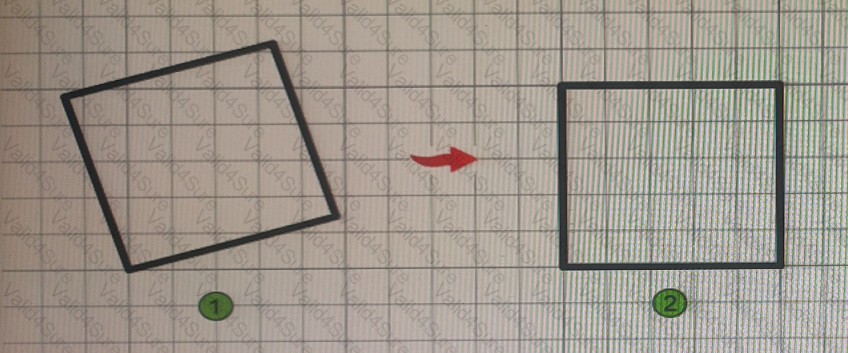

rotate is a command that rotates selected objects around a base point to an absolute angle. You can specify the base point and the rotation angle by entering values or selecting points. You can also use the reference option to align objects with other objects.

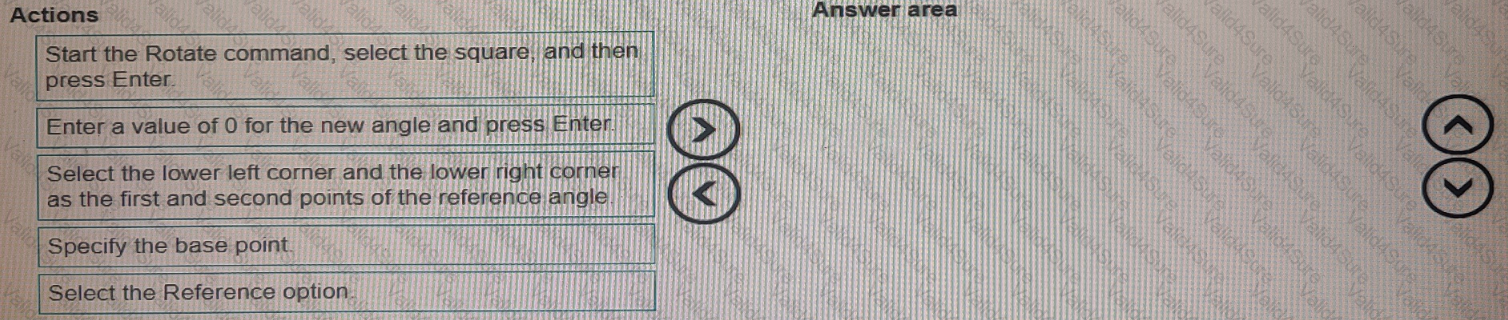

1- Start the Rotate command, select the square, and press Enter

4- Specify the base point

5- Select the Reference option

3- Select the lower left corner and the lower right corner as the first and second points of the reference angle

2- Enter a value of 0 for the new angle and press Enter

Understanding External References:

External references (Xrefs) allow you to attach drawing files within your current drawing, enabling collaborative work and data sharing.

Xrefs can be attached as Overlay or Attachment. Overlays do not include nested Xrefs, while Attachments do.

Identifying the Problem:

The exhibit shows that the Buildings drawing is nested within the Contours Xref.

To remove the Buildings drawing from the C-3 drawing, it must be detached from the Xref hierarchy.

Steps to Detach Xref:

Right-click (Control-click) the Buildings reference in the Xref Manager.

Select the Detach option. This will remove the Buildings reference from the drawing.

Conclusion:

To remove the Buildings drawing from the C-3 drawing, detach the Buildings reference directly from the Xref Manager.

References:

AutoCAD User Guide on Managing Xrefs.

AutoCAD Help Documentation on Detaching Xrefs.
