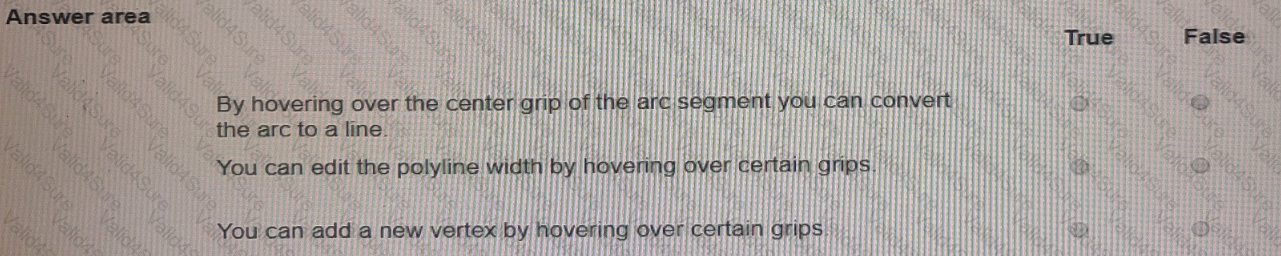

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

When creating a path array in AutoCAD, the objects being arrayed typically align with the direction of the path by default. To maintain the original orientation of the objects while following the curved path, you should turn off the "Align items" option.

Select the Object: Choose the object you want to array along the path.

Path Array Command: Use the ARRAYPATH command or go to the Array command and choose Path Array.

Select Path: Select the path (curved line or arc) along which the objects will be arrayed.

Turn Off Align Items: In the Array options, turn off the "Align items" checkbox to ensure that the objects maintain their original orientation.

This will keep the orientation of each object the same as the original, regardless of the curvature of the path.

True

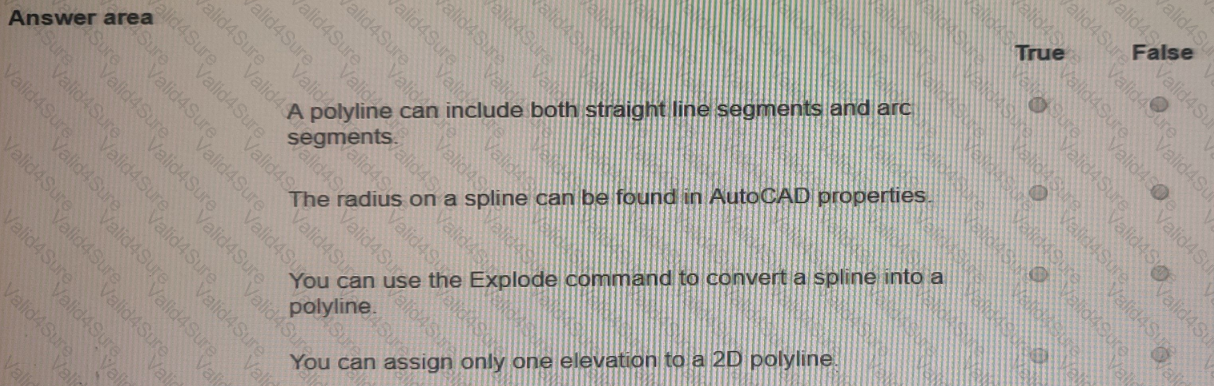

1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.

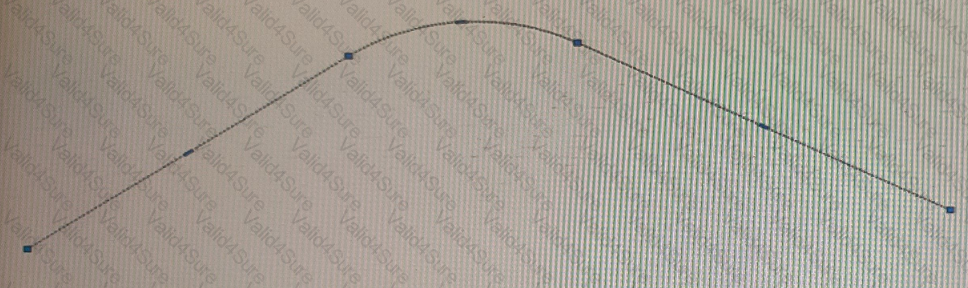

2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.

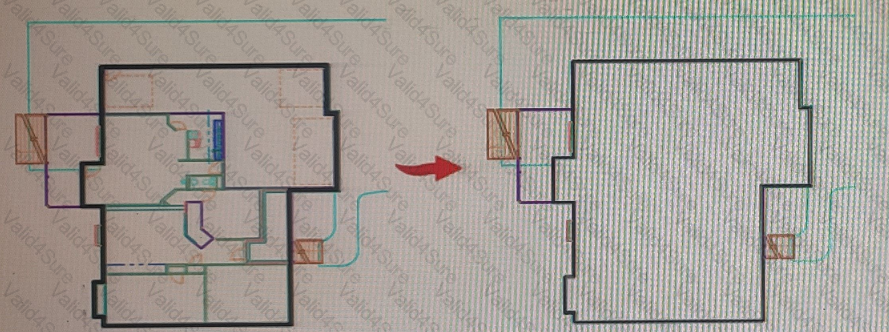

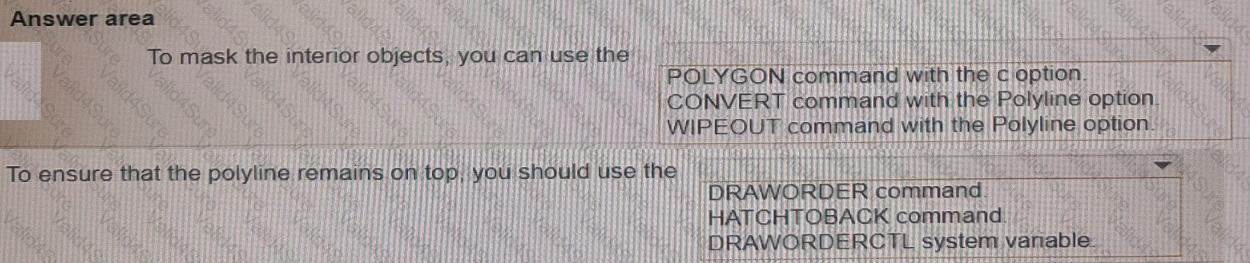

BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23

https://forums.autodesk.com/t5/autocad-forum/polyline-plan-view-boundary-of-point-cloud/td-p/6251860

the command that should be used to create a new drawing file from selected objects is WBLOCK. This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block2.

To determine the most current file in the Drawing Recovery Manager, you should review the last saved date and time for each file in the Details panel. This ensures you are selecting the most recent version of the drawing.

Select each file name:

Procedure: Click on each file name in the Drawing Recovery Manager.

Review the Details panel:

Information: The Details panel provides the last saved date and time for each file.

Purpose: Helps you identify which backup file is the most recent and thus the best candidate for recovery.

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

Setting Up Polar Tracking:

Polar Tracking helps in creating lines at specific angles by snapping to predefined angle increments.

Required Angles in the Exhibit:

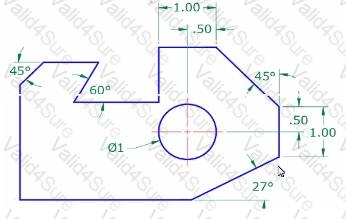

The exhibit shows angles of 45°, 60°, and 27°.

Increment Angle: Set to 60° to cover the major angle increments.

Additional Angle: Add 27° to cover the specific requirement in the drawing.

Steps to Set Drafting Settings:

Open the Drafting Settings dialog.

Go to the Polar Tracking tab.

Set the Increment Angle to 60°.

Add 27° to the Additional Angles list.

Conclusion:

To draw the exhibit using Polar Tracking, set the Increment angle to 60° and add 27° as an additional angle.

References:

AutoCAD User Guide on Polar Tracking.

AutoCAD Help Documentation on Setting Increment and Additional Angles.
