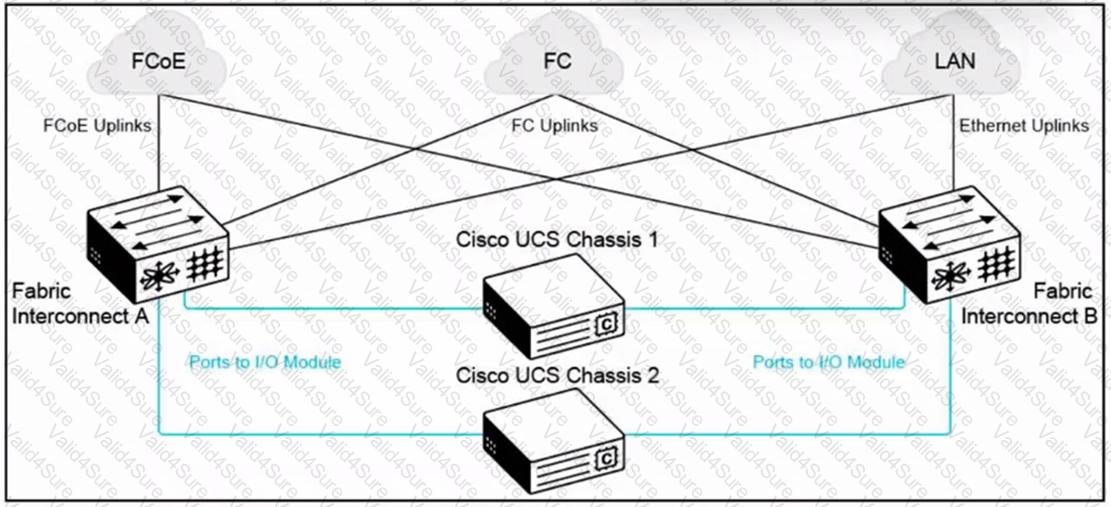

In the providedCisco UCS architecture diagram, the infrastructure consists of:

Two Fabric Interconnects (A and B), each connecting to:

Ethernet (LAN)

Fibre Channel (FC)

FCoE (Fibre Channel over Ethernet)

Both Fabric Interconnects are independently connected to bothCisco UCS Chassis 1 and 2through I/O Modules (IOMs).

This is theclassic active-active UCSdesign, providingfull path redundancyfor all traffic types:

LAN uplinksare handled separately by Fabric Interconnect B.

SAN trafficis distributed throughFC uplinksandFCoE uplinksvia Fabric Interconnects A and B.

Each server in the chassis canfail over its traffic to the alternate fabric if one interconnect fails.

This architecture guaranteesno single point of failure, which is essential inmission-critical environmentslike data centers and enterprise server farms.

A → Power supply modules

B → Fan tray assembly

C → Line card slots 1 and 2

D → Supervisor modules

E → Line card slots 5, 6, and 7

The power supply units (A) are at the top, the fan tray (B) is a vertical module on the left, line cards (C and E) span multiple slots horizontally, and supervisor modules (D) are typically placed centrally for control functions.

In theFLDTEC courseunderCisco Modular Hardware Overview, the Cisco Catalyst 9400 series is broken down into clearly defined FRU zones:

Power Supply Modules (A):Located at thetop of the chassis, these provide redundant, hot-swappable power to the switch.

Fan Tray Assembly (B):Mounted vertically on the left, this ensures proper cooling and airflow throughout the chassis.

Line Card Slots 1 and 2 (C):Located in the upper section for network expansion.

Supervisor Modules (D):Positioned centrally, they handle control plane operations, management, and switching logic.

Line Card Slots 5, 6, and 7 (E):Lower slots for high-density port expansion.

Correct FRU identification ensures successful maintenance, upgrades, and hardware replacement during field operations.

When replacing afabric interconnectin a Cisco Unified Computing System (UCS), the recommended procedure tominimize traffic disruptionis touse the fabric evacuation procedure on the subordinate fabric interconnect. This ensures that traffic is redirected to the other (active) fabric interconnect, allowing the system to maintain connectivity while one interconnect is replaced.

High availability should remain enabled to preserve redundancy.

Powering down both interconnects would cause a complete outage.

Disconnecting cables without graceful evacuation can result in traffic loss.

Theshow flash:command is used todisplay the contents of the device's flash memory, which is where the Cisco IOS image is typically stored. By issuing this command, a technician can verify available space and determine whether there is enough capacity to accommodate a new IOS image before initiating an upgrade or image replacement process.

This command provides a detailed listing of files, their sizes, and the total and available memory space within the flash file system.

show file-systemlists all available file systems but doesn’t detail their content.

show memoryshows runtime memory usage (RAM), not flash memory.

show storageis not a standard IOS command.

TheCisco Integrated Management Controller (CIMC)is the embedded management solution designed specifically forstandalone Cisco UCS C-Series rack servers and E-Series servers. It allows administrators to perform out-of-band management functions such as BIOS configuration, firmware updates, remote console access, and power control.

Cisco UCS Manageris used for managing UCS blade chassis environments.

Cisco UCS Centralis intended for centralized management across multiple UCS domains.

Cisco Intersightis a cloud-based management platform that can extend CIMC functionality but is not the embedded, standalone option.

When diagnosing network connectivity issues between a Windows PC and a Cisco device, the combination ofipconfig /allandpingcommands provides comprehensive information:​

ipconfig /all:Displays detailed IP configuration information, including IP addresses, subnet masks, default gateways, DNS servers, and MAC addresses for all network adapters. This information is crucial for verifying correct network settings.​

ping:Tests the reachability of a host on an IP network and measures the round-trip time for messages sent from the originating host to a destination computer. It's a fundamental tool for checking connectivity between devices.​

While other commands likenetstat,tracert,nslookup,arp -a, androute printprovide valuable information,ipconfig /allandpingare typically the first and most informative commands used in initial troubleshooting steps.​
