3V0-25.25 Exam Dumps - Advanced VMware Cloud Foundation 9.0 Networking

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theVMware Cloud Foundation (VCF) 9.0andNSX VPCarchitecture, theTransit Gateway (TGW)is the central routing element that interconnects VPCs to each other and to the provider's infrastructure (Tier-0 or VRF gateways). It acts as the "Project-level" gateway that aggregates North-South traffic.

To control the visibility of routes within a specific VPC, the administrator must utilizeRoute Filteringat the VPC's boundary. When a VPC is attached to a Transit Gateway, a logical interface is created. To prevent the data center's internal prefixes (such as management networks or other tenant subnets) from being seen by the VPC while still providing a path to the internet, a prefix list or route map should be applied to theVPC Transit Gateway. This policy will explicitly "Deny" specific internal CIDR ranges while "Permitting" the $0.0.0.0/0$ default route advertisement from the provider.

Applying the policy at theTier-1 gateway(Option B) is technically similar but in the VPC model, the "Tier-1" is often an obscured or automated component of the VPC itself; the Transit Gateway is the designed administrative point for inter-project and North-South policy enforcement. Applying it at theprovider Tier-0 neighbor(Option D) would be too global, affecting all VPCs or projects connected to that Tier-0, rather than the "new VPC" specifically. Therefore, the Transit Gateway provides the necessary granular control for multi-tenant isolation and routing optimization as per the VCF 9.0 networking model.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

Nested virtualization—where a hypervisor like ESXi is run as a virtual machine—imposes unique challenges on the virtual networking layer. In a standard VCF environment, an NSX segment port expects to see exactly one MAC address: the MAC address assigned to the VM's vNIC.

When you run anested hypervisor, that single vNIC now acts as an "uplink" for multiple "inner" virtual machines. Consequently, traffic originating from that single nested ESXi VM will contain many different source MAC addresses (one for each nested VM). By default, the NSX/VDS security and switching logic will drop this traffic because it appears asMAC Spoofing—packets are arriving from a port with source MACs that do not match the port’s registered ID.

To support this, aMAC Discovery Segment Profilemust be configured and applied to the segment. Within this profile, the administrator must enableMAC Learning. MAC Learning allows the NSX virtual switch to "learn" and permit multiple MAC addresses on a single logical port. Without this, only the primary MAC of the nested ESXi host would be allowed, and all nested VMs would lose connectivity to the rest of the network.

In VCF 5.x and 9.0 documentation, this is a standard requirement for "Lab-on-a-Lab" designs or development environments. WhileIP Discovery(Option A) andSpoof Guard(Option D) are important for maintaining the IP-to-MAC binding and preventing IP theft, they do not address the fundamental Layer 2 requirement of allowing multiple MAC identities on a single port. Therefore,MAC Discoverywith MAC learning enabled is the verified profile choice for nested hypervisor support.

===========

To identify why there is no data ingress into a workload domain, an administrator must understand the specific path external traffic takes. For a workload domain configured with a Tier-0 gateway and a Tier-1 gateway (Distributed Routing only), the ingress traffic flow follows a hierarchical path from the physical network through the NSX logical components to the virtual machine.

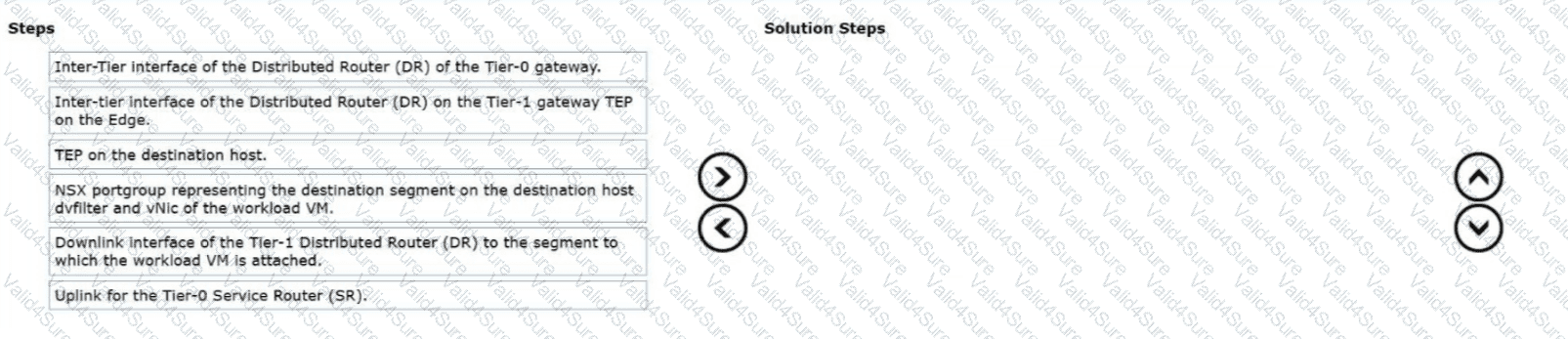

Ingress Traffic Flow Sequence

The correct sequence of steps for external network traffic to ingress the workload domain and reach the virtual machine is as follows:

Uplink for the Tier-0 Service Router (SR): Traffic enters the NSX environment from the physical network through the physical-to-logical interface on the Edge node.

Inter-Tier interface of the Distributed Router (DR) of the Tier-0 gateway: After being received by the Service Router, the packet is routed internally within the Tier-0 gateway to its distributed component.

Inter-tier interface of the Distributed Router (DR) on the Tier-1 gateway TEP on the Edge: The Tier-0 gateway routes the packet to the Tier-1 gateway. In this specific scenario, since the Tier-1 is "Distributed Routing only," this logical transition occurs on the Edge node participating in the transport zone.

TEP on the destination host: The Edge node encapsulates the packet (typically via Geneve) and tunnels it across the physical fabric to the specific ESXi host where the target virtual machine is currently residing.

Downlink interface of the Tier-1 Distributed Router (DR) to the segment to which the workload VM is attached: On the destination host, the packet is de-encapsulated. The local Tier-1 DR instance identifies the correct logical segment (VNI) for the destination IP.

NSX portgroup representing the destination segment on the destination host dvfilter and vNic of the workload VM: The packet is delivered to the virtual switch port, passes through any applied Distributed Firewall (dvfilter) rules, and finally reaches the virtual machine's network interface card (vNIC).

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

A critical requirement for the backup and restore process inVMware NSX(and by extension, VCF) is version parity. The NSX Manager backup contains the database schema, configuration files, and state information specific to the version of the software that was running at the time the backup was taken.

When performing a restore into a "clean" environment, the NSX documentation explicitly states that the target NSX Manager appliancemust be of the exact same build versionas the appliance that generated the backup. If an administrator attempts to restore a backup from version 4.1.x onto a newly deployed manager running version 4.2.x or 9.0 (as implies by "latest version"), the restore process will fail because the database schema of the newer version is incompatible with the older data structure.

In aVCF environment, whileSDDC Manager(Option B) handles the lifecycle and replacement of failed nodes, the actual "Restore from Backup" workflow is an NSX-native operation. If the entire cluster is lost, the recovery procedure involves:

Identifying the build number from the backup metadata.

Deploying a single "Discovery" node of that exact build.

Pointing that node to the backup repository (SFTP/FTP).

Executing the restore.

Once the primary node is restored to the correct version, the administrator can then add additional nodes to reform the cluster. Attempting to use the API (Option C) or changing the passphrase (Option A) will not bypass the fundamental requirement for version alignment between the backup file and the installed binary.

===========

In a modernVCF 9.0environment using theVirtual Private Cloud (VPC)model, North-South traffic follows a specific hierarchical path. When a VM, such asSa-transit-web-01, initiates an ICMP request to an external destination (the Student Desktop), the packet must traverse the VPC's internal routing before exiting to the physical network.

The first hop is theVPC Tier-1 Gateway. This gateway manages the localized subnets within the VPC. In this architecture, the VPC Tier-1 is typically configured with a default route ($0.0.0.0/0$) pointing to theTransit Gateway (TGW). The gateway address 100.64.0.0 represents the provider-side interface of the Router Link connecting the VPC to the Transit Gateway. Thus, the command output showing the default route to 100.64.0.0 belongs to the VPC Gateway.

The second hop is theDistributed Transit Gateway DR. The Transit Gateway acts as the aggregation point for multiple VPCs and provides the bridge to the physical datacenter fabric. The command output for this object shows a default route with a gateway of 0.0.0.0, indicating it is directly peered or using a specific unnumbered interface to reach the physical router. Additionally, it identifies the specific physical router IP (172.20.13.254/32) as a known local next-hop, which is a common characteristic of the Transit Gateway's forwarding table when performing North-South transitions.

Finally, theTransport Node (ESXi Host)is where the physical packet capture occurs. As the packet exits the virtual environment, it is placed on a physical uplink (vmnic1). The packet capture output confirms the transformation of the traffic: it shows the source IP of the VM (or its translated NAT address 172.20.13.65) reaching out to the destination 172.20.10.10. The inclusion of ipproto 0x01 (ICMP) and the specific MAC addresses confirms that the packet has successfully traversed the NSX overlay and is now a standard Ethernet frame on the physical wire.
