3V0-24.25 Exam Dumps - Advanced VMware Cloud Foundation 9.0 vSphere Kubernetes Service

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.

The VCF 9.0 documentation explicitly states that“the VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster.”Those three controller layers map directly to the answer choices:

Cloud Provider Plug-in: VKS-provisioned clusters include components needed to integrate with vSphere Namespace resources, including aCloud Provider Plug-inthat integrates with the Supervisor and supports infrastructure-integrated functions (for example, passing persistent volume requests to the Supervisor which integrates with Cloud Native Storage).

Cluster API: The documentation describesCluster APIas providing declarative APIs for “cluster creation, configuration, and management,” including resources for the VMs and cluster add-ons.

Virtual Machine Service: TheVirtual Machine Serviceprovides declarative APIs to manage VMs and associated vSphere resources, and is used to manage the lifecycle of the control plane and worker node VMs that host a VKS cluster.

CNI and CSI are important cluster components, but the document distinguishes these from thethree controller layersresponsible for lifecycle management.

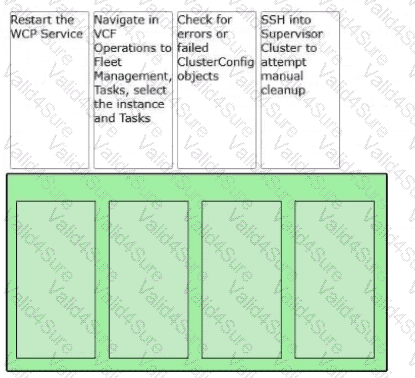

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

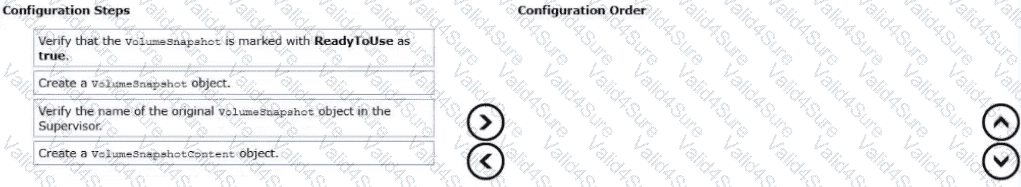

Configuration Order (in order):

Verify the name of the original VolumeSnapshot object in the Supervisor.

Create a VolumeSnapshotContent object.

Create a VolumeSnapshot object.

Verify that the VolumeSnapshot is marked with ReadyToUse as true.

Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are “importing” it into Kubernetes by creating the Kubernetes objects that reference it. That’s why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context—this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 " extra " pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the " Desired State " ) must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.
