3V0-21.25 Exam Dumps - Advanced VMware Cloud Foundation 9.0 Automation

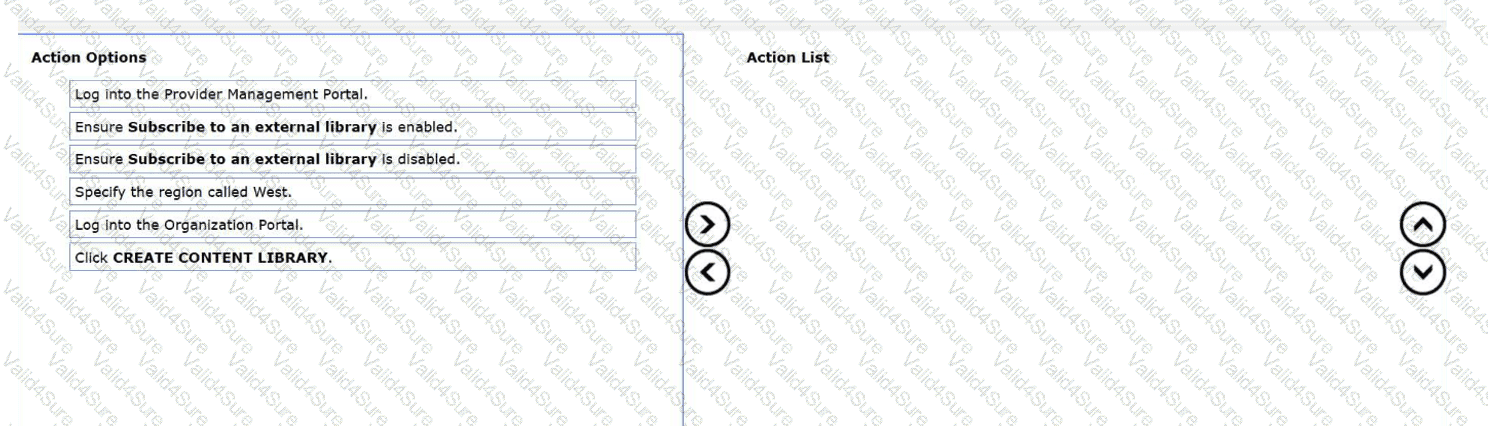

Log into the Provider Management Portal.

Click CREATE CONTENT LIBRARY.

Specify the region called West.

Ensure Subscribe to an external library is disabled.

In VMware Cloud Foundation (VCF) 9.0, the Provider Management Portal is the centralized interface used by cloud providers to manage global infrastructure and shared resources across the entire fleet.

To satisfy the requirements:

Administrative Context: The task of creating global resources like a provider-level content library is a "Day 0/1" infrastructure task, which must be performed in the Provider Management Portal rather than a tenant-specific Organization Portal.

Regional Association: VCF 9.0 uses Regions to logically group underlying vSphere and NSX resources. Associating the library with the West region ensures that the templates and ISOs within that library are specifically available for workloads deployed into that regional infrastructure.

Local vs. Subscribed: A Local Content Library is one where the provider directly uploads and manages the content. The requirement specifies a local configuration; therefore, the option to Subscribe to an external library must be disabled. If it were enabled, the library would instead attempt to synchronize content from a remote URL (such as a public VMware repository or another VCF instance).

Once created, this library acts as a "golden repository" that the provider can then share with multiple tenant organizations, ensuring consistency across the private cloud fleet.

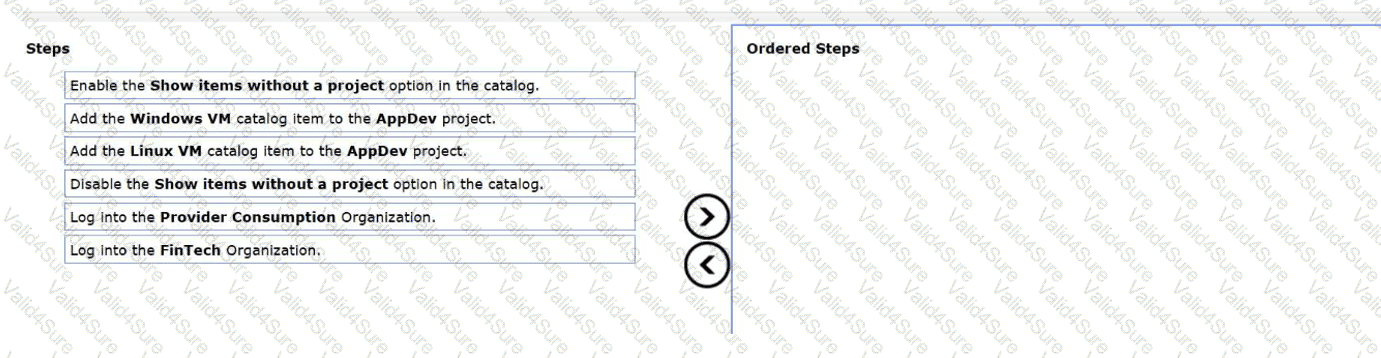

To share a specific catalog item from the Provider Consumption Org (PCO) to a tenant organization and project, follow these ordered steps:

Ordered Steps

Log Into the FinTech Organization.

Enable the Show items without a project option in the catalog.

Add the Linux VM catalog item to the AppDev project.

In VMware Cloud Foundation (VCF) 9.0, catalog items from the Provider Consumption Org (PCO) can be shared across multiple tenant organizations, such as the FinTech organization, to promote infrastructure standardization. To manage these shared items, the administrator must first Log into the FinTech Organization portal directly. Within this context, catalog items shared from the provider do not initially have a project association within the local tenant workspace.

Therefore, the administrator must Enable the "Show items without a project" option in the catalog view. This setting reveals global or provider-shared items that are available to the organization but have not yet been entitled to a specific local group. Once visible, the administrator can perform the entitlement task by selecting the specific Linux VM catalog item and adding it to the AppDev project. This step creates the final link in the role-based access control (RBAC) chain, ensuring that only users assigned to the AppDev project can request and deploy the Linux virtual machine according to the organization's governance policies. This workflow allows providers to maintain "golden" templates at the fleet level while granting tenants the flexibility to assign those resources to their own internal development teams.

To meet the requirements of a standardized, governed microservices environment, VCF 9.0 Automation provides several key features. First, Lease Policies are the primary tool for minimizing "environment sprawl" and enforcing automated decommissioning. By assigning a lease, the administrator ensures that resources are automatically reclaimed after a set period unless a renewal is explicitly granted, preventing "forgotten" deployments from consuming expensive capacity. Second, cloud-init (or the similar cloudConfig stanza) allows for the standardized, post-deployment configuration of the VM OS, such as installing security agents or company-specific developer tools, ensuring every environment is consistent from "Day 0". Finally, predefined firewall rules (often delivered via NSX VPC Security Profiles) ensure that newly deployed environments adhere to the organization's security standards. This prevents developers from manually (and potentially incorrectly) configuring networking, thereby automating the "Secure-by-Design" requirement within the self-service catalog item.

In VMware Cloud Foundation 9.0, branding is managed within the Organization Portal to allow for tenant-specific customization. To meet the specific requirement that branding only appears after a user has authenticated, the administrator must navigate to the Branding section of the portal. The critical configuration step is to Disable the Enable Login and Logout Page Branding setting. By default, if this is enabled, the custom logos and colors are displayed on the public-facing login screen. Disabling it ensures that the generic VCF/Broadcom login page is presented to the public, and the custom tenant identity is only loaded into the browser session once the user’s organization context is established through successful login. This is a common requirement for service providers who want to maintain a consistent entry point for all users while providing a personalized "white-labeled" experience once the user is inside their specific environment.

To deliver GPU resources to tenant users in VCF 9.0, the administrator must bridge the physical hardware to the logical project via a Namespace Class. Specifically, the administrator must create or modify a Namespace Class to include VM Class Reservations for GPU-enabled classes. In VCF 9.0, a "Namespace Class" defines the templates and limits for the Kubernetes namespaces that users can create. By adding a GPU-enabled VM Class (such as one utilizing NVIDIA vGPU profiles) to the reservation list within the Namespace Class, the administrator ensures that the Supervisor knows to prioritize and reserve those specific hardware resources for workloads deployed into that namespace. Once this Namespace Class is bound to the user's Project, the users can then select the GPU-enabled classes when deploying their containers or VMs, fulfilling the requirement for high-performance compute within the multi-tenant environment.

In VMware Cloud Foundation 9.0, multi-tenancy is structured around the concept of Organizations. To meet the requirement of hosting multiple companies within a single private cloud with strict segregation and governance, the administrator must utilize the VMApps Organization model. Unlike the AllApps model, which is highly optimized for modern containerized and VPC-driven workloads, the VMApps Organization is specifically designed for environments requiring traditional VM-centric segregation and access control while sharing underlying physical infrastructure. Enabling a Supervisor cluster on the vCenter instance is a foundational prerequisite for these advanced automation capabilities. The Supervisor provides the necessary integration between the vSphere compute layer and the VCF Automation control plane, allowing for the instantiation of the Namespace and Organization constructs that enforce RBAC and resource quotas. By configuring a VMApps Organization per company, the administrator ensures that each tenant has a distinct administrative boundary, private catalog, and isolated resource allocation, effectively satisfying the requirements for hard tenancy within a consolidated private cloud environment.

To automate the export or backup of Blueprints (Cloud Templates) in VCF 9.0, the Event Broker Service (EBS) is the required mechanism. While Velero (Option A) is used for backing up vSphere Pods and ArgoCD (Option C) is for continuous delivery, neither is designed to "listen" for internal automation metadata changes. By creating an Event Broker Subscription mapped to the "Blueprint Released" or "Template Version Created" topic, the administrator can trigger an action every time a developer finalizes a new version of their infrastructure code. This triggered action (typically an ABX or Orchestrator task) can then programmatically retrieve the YAML definition of the blueprint via the VCF Automation API and push it to an external third-party storage solution or a secondary Git repository for long-term archival and backup. This ensures that the organization maintains a complete, off-appliance history of its infrastructure designs, satisfying auditing and disaster recovery requirements.

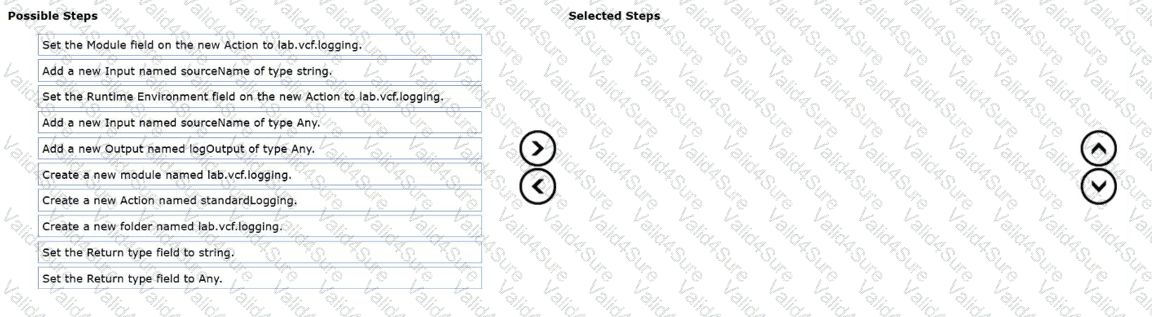

Create a new module named lab.vcf.logging.

Create a new Action named standardLogging.

Set the Module field on the new Action to lab.vcf.logging.

Add a new Input named sourceName of type string.

Set the Return type field to Any.

In VMware Cloud Foundation (VCF) 9.0, extensibility through the Operations orchestrator (formerly vRealize Orchestrator) requires a structured approach to modularity and data typing. To store an action in a specific path like lab.vcf.logging, an administrator must first create a new module with that name, as modules serve as the organizational namespaces for actions. Once the container exists, the administrator creates the Action named standardLogging and explicitly sets the Module field to the newly created namespace to ensure correct storage and accessibility across the orchestrator server.

The configuration of inputs and outputs is critical for programmatic integration. By adding an input named sourceName of type string, the administrator ensures the action can receive metadata from calling workflows exactly as specified in the technical requirements. Regarding the output, the requirement states the script returns a JSON object format. In the orchestrator's JavaScript-based engine, while a string could technically hold JSON text, the "Any" return type is the standard and verified method for returning structured objects. This allows subsequent workflow elements to programmatically parse and interact with the JSON properties without manual conversion, fulfilling the requirement for sophisticated log data handling and troubleshooting within the VCF 9.0 framework.
