Control Hub normalizes Webex Calling and Webex Contact Center numbers into E.164 format, and Cisco's voice channel setup guidance explains that numbers routed from Cloud Connected PSTN or Local Gateway are provisioned in +E.164 format for Control Hub. The fully qualified +1-450-783-2223 format is therefore valid. Cisco interfaces also accept common national display formatting for number entry in many workflows, such as parentheses around the area code, which corresponds to (450) 783-2223 in the option set. The bracketed version, hash-prefixed value, and dotted format are not acceptable telephony number formats for configuring a Webex Contact Center entry point number. The key is that the number must represent a valid PSTN telephone number that Control Hub can store and map to the entry point. The +E.164 version is the canonical final representation; the national style is an accepted entry/display form. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Set up voice settings for Webex Contact Center.

A reorder tone followed by call drop at call ingress is usually a telephony signaling or trunk acceptance symptom, not an Analyzer or queue-configuration symptom. In a Bring Your Own PSTN design, the customer's PSTN carrier and session border controller are responsible for delivering calls toward Webex Contact Center through the agreed voice path. Cisco's Webex Calling and Local Gateway documentation emphasizes trunk status, SIP connectivity, registration or certificate state, and SBC reachability as the first checks when calls fail before application routing. If the call cannot be successfully established across the customer's SBC or Local Gateway, Webex Contact Center will not have a usable interaction to queue, analyze, or route. Analyzer becomes useful after the platform has received enough call data to create records; it is not the first place to diagnose a reorder tone at ingress. Channel and queue association should still be reviewed later, but the symptom points first to SIP trunk status on the SBC. Reference: Cisco Help, Get started with Local Gateway; Configure trunks, route groups, and dial plans for Webex Calling.

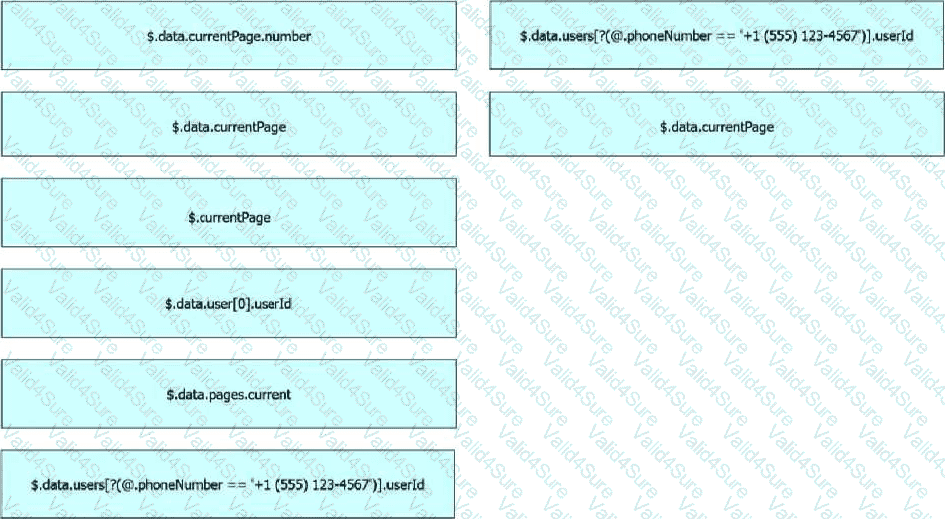

userId: $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId

currentPage: $.data.currentPage

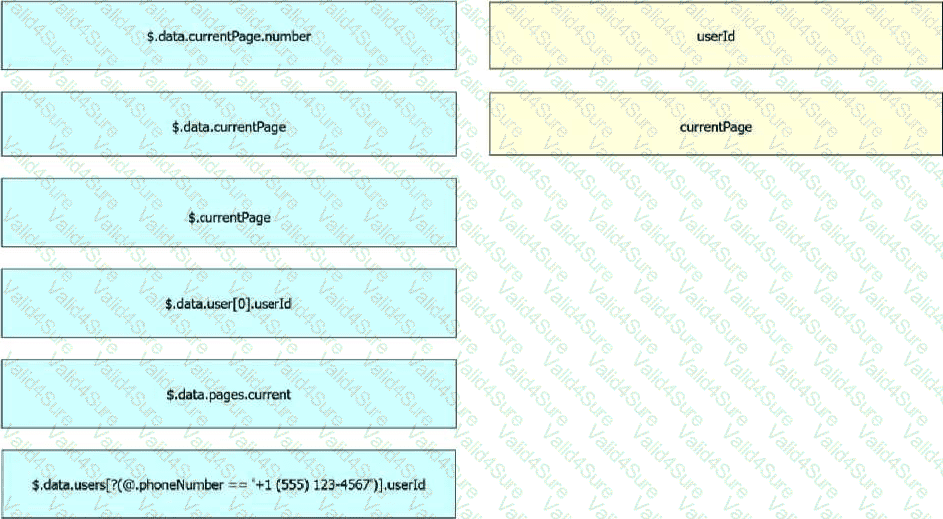

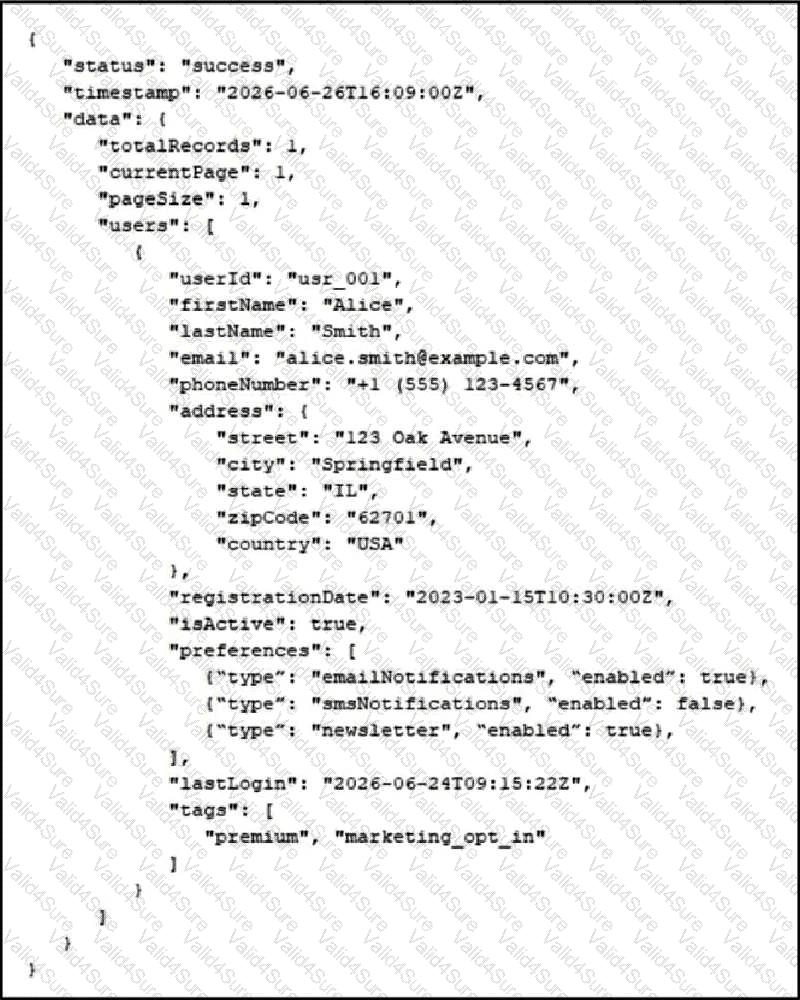

The JSONPath mapping must match the structure shown in the API response. The userId variable is not a simple top-level property; it sits inside the users array. The expression must filter the users array for the object whose phoneNumber equals +1 (555) 123-4567 and then return that object's userId. That is why the filtered JSONPath expression using $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId is the correct mapping. The currentPage variable is directly under data, so the correct expression is $.data.currentPage. Expressions such as $.currentPage miss the data wrapper, and $.data.currentPage.number assumes currentPage is an object with a number property, which the response does not show. $.data.user[0] .userId is also wrong because the array name in the response is users, not user, and it would take the first user rather than the matching phone number. Reference: Webex Connect Help, Custom Node Integration; Webex Connect flow data parsing guidance.

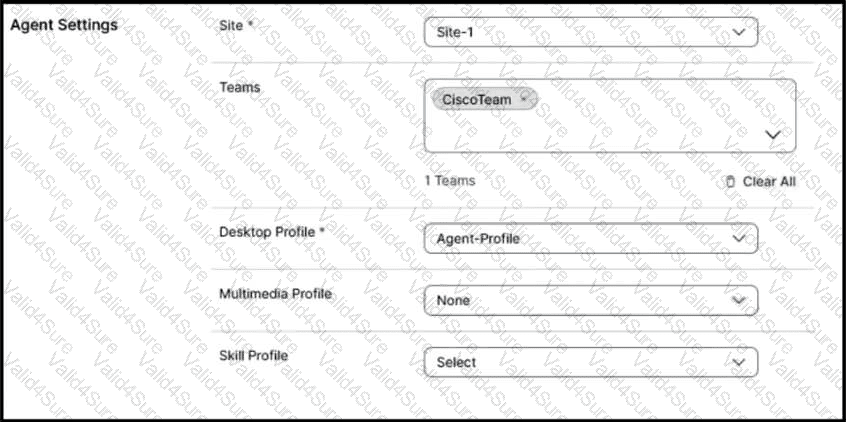

The agent inherits the multimedia profile through the Desktop Profile when no explicit multimedia profile is assigned at the agent setting. In Webex Contact Center, desktop profiles govern key agent desktop behavior, including the experience and channel-related defaults that determine what an agent can use when signing in. The exhibit shows the user has no multimedia profile assigned directly, yet the agent can still accept voice and digital interactions. That means the applicable profile is coming from the desktop configuration assigned through the agent/team path. A skill profile would only describe routing skill values and proficiencies; it does not define how many or which media interactions the desktop can handle. A desktop layout controls widgets and user interface structure, not the multimedia interaction capacity. A site is an organizational grouping and not the source of the inherited multimedia profile in this scenario. The Desktop Profile is therefore the correct configuration object. Reference: Cisco Help, Manage desktop profiles; Webex Contact Center Setup and Administration Guide.

Webex App state synchronization is configured under the Desktop > Webex App configuration area, where the administrator enables Webex App integration, enables state synchronization, and maps Webex availability states to Webex Contact Center idle codes. The requested behavior is specific: when an agent is on a non-contact-center Webex App call, Agent Desktop must move to the configured WebexAppCall idle state. Cisco's documentation identifies the Webex availability state as On a Call for this situation, not Outgoing Call. Therefore, On a Call must be mapped to the WebexAppCall idle code. The idle code must already exist in Webex Contact Center; it does not need to be added to a desktop layout, because idle codes are assigned through desktop profile configuration rather than layout JSON. The option that places state synchronization under Collaboration in the desktop profile does not match the stated Control Hub path. The three required actions are enabling the Webex App integration, mapping On a Call, and enabling State Synchronization. Reference: Cisco Help, Manage desktop profiles; Integrate Webex Contact Center CRM Connector for Microsoft Dynamics 365, state synchronization section.
