In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring the digital experience of internal employees requires leveraging ThousandEyes Endpoint Agents to simulate or record traffic from the user ' s specific vantage point. When an engineer needs to monitor a specific, potentially internal or non-standard web application, they must utilize the Custom Application workflow within the Endpoint Experience settings.

According to the ENNA implementation standards, the first necessary action is to Create a new custom application monitor (Option A). In the ThousandEyes portal under Endpoint Experience > Test Settings > Synthetic Tests , the " Monitor Application " button provides access to pre-defined templates for popular services like Microsoft 365 or Webex. However, for a unique enterprise application, the engineer must select " Custom Application " to define the application ' s identity, including its name and the relevant domain or URL.

The second required action is to Add a new scheduled test to the monitor (Option C). Endpoint Agents perform Scheduled Tests at regular, predefined intervals—such as every 5 or 10 minutes—to proactively check the application ' s availability, response time, and network path health without requiring user interaction. By adding a scheduled HTTP Server or Network test to the custom monitor, the engineer ensures a consistent baseline of the application ' s performance as seen from the employee ' s machine.

Reviewing the incorrect options:

Google Suite monitor (Option B): This is a specific template for Google Workspace and is not suitable for a custom application.

Dynamic Tests (Option D): These are specifically designed for collaboration tools like Zoom or Microsoft Teams to capture ad-hoc sessions; they are generally not used for baselining a standard custom web application.

Test Template (Option E): While all monitors are based on templates, " adding a new template " is not a configuration action but rather a result of the monitoring setup.

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) certification emphasizes that the primary value proposition of the Cisco " Assurance Stack " is the reduction of Mean Time to Identification (MTTI) and Mean Time to Resolution (MTTR) . The integration of ThousandEyes across Cisco ' s portfolio—including Catalyst, Meraki, and SD-WAN— allows for quick identification and resolution of performance issues (Option D). 12

By embedding ThousandEyes agents into the existing network infrastructure, Cisco enables " end-to-end visibility " that spans domains the enterprise traditionally does not control, such as the public internet and SaaS environments. 13 During troubleshooting, this cross-platform visibility allows network engineers to immediately correlate internal network health (from Catalyst Center or Meraki Dashboard) with external path visualization (from ThousandEyes). For example, when a user experiences poor video quality in a Webex meeting, the integration allows the engineer to " cross-launch " from the Webex Control Hub directly into a ThousandEyes path view. 14 This pinpoint accuracy avoids the " blame game " between network, application, and ISP teams by providing a " single source of truth " regarding where the packet loss or latency is occurring.

While some automation exists (Option C), the core benefit isn ' t automatic configuration changes based on feedback, but rather providing the actionable insights required for manual or policy-based remediation. Similarly, while it streamlines data gathering, its ultimate purpose is the speed of resolution in complex, hybrid environments.

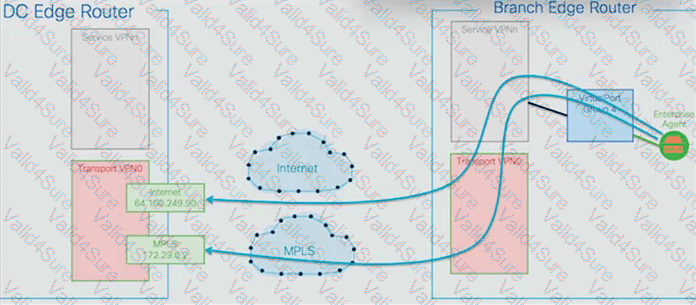

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, understanding the visibility gap between the SD-WAN overlay and the transport underlay is a core competency. The provided exhibit illustrates a ThousandEyes Enterprise Agent deployed on a Branch Edge Router performing tests across two distinct paths: Internet (reaching a destination at 64.100.249.90) and MPLS (reaching a destination at 172.29.0.2).

According to the ENNA architecture guidelines, ThousandEyes is primarily utilized to provide hop-by-hop visibility into the underlay network. While SD-WAN controllers like vManage provide native monitoring for the overlay—the logical IPsec tunnels (Option B) that form the SD-WAN fabric—they often lack granular visibility into the physical service provider paths (the underlay) that carry those tunnels. The exhibit specifically highlights the agent probing the transport networks (Transport VPN0) directly, bypassing the overlay tunnels to measure the raw performance of the ISP and MPLS circuits.

By monitoring the underlay (Option A), the engineer can identify if high latency or packet loss is caused by a specific hop within the service provider ' s infrastructure or at a peering point. This " underlay visibility " is critical for troubleshooting SD-WAN performance issues where the overlay may report a tunnel down, but the root cause lies in a BGP routing change or physical fiber cut in the provider network. ThousandEyes Enterprise Agents, natively integrated into Catalyst 8000 and ISR 4000 platforms, allow for this persistent underlay monitoring without additional hardware.

Overlay (Option C): While ThousandEyes can monitor overlay performance, the exhibit ' s focus on the raw IP addresses (Internet and MPLS) in the transport VPN indicates an underlay test.

IPsec/GRE Tunnels (Options B & D): These represent the transport mechanisms of the overlay. ThousandEyes probes the path under these tunnels to ensure the transport health is sufficient to support the fabric.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, baselining is the process of establishing a " normal " performance profile for network infrastructure to enable the detection of anomalies. When the metric of interest is the internal health of a physical device, such as CPU utilization on a core router, SNMP (Simple Network Management Protocol) is the industry-standard data source.

SNMP provides direct visibility into the device ' s control plane and hardware performance. By polling specific Object Identifiers (OIDs) from the router ' s Management Information Base (MIB), a monitoring system like Cisco Catalyst Center or a third-party NMS can collect granular data on CPU cycles, memory allocation, and temperature. This " inside-out " telemetry is essential for baselining because it reflects the actual resource consumption of the router during various traffic loads.

Conversely, ThousandEyes tests (Options A, B, and D) provide " outside-in " synthetic data. While DNS resolution time (Option A), HTTP response times (Option B), and Path Visualization (Option D) are excellent for measuring end-to-end service delivery and network transit health, they do not report on the router ' s internal hardware state. For instance, a router could have 99% CPU utilization (indicating a potential crash), yet a ThousandEyes path test might still show a " green " path if the data plane (ASICs) is still forwarding packets efficiently. Therefore, to establish a reliable baseline for hardware-specific metrics like CPU, SNMP data (Option C) is the only appropriate source among the choices.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, understanding the distinction between different monitoring methodologies is fundamental to architecting an effective assurance strategy. When an engineer deploys a ThousandEyes Enterprise Agent on a Meraki MX appliance, they are implementing active monitoring .

Active monitoring, as defined in standard network assurance frameworks like RFC 7799, involves the generation of synthetic traffic or " probes " that are sent across the network to a specific destination. These probes, which can utilize protocols such as ICMP, TCP, or HTTP/S, simulate real user transactions to measure performance metrics including latency, packet loss, jitter, and path visualization. The Enterprise Agent acts as a dedicated vantage point, executing these tests at scheduled intervals to provide a proactive baseline of network and application health. This allows the engineer to identify performance degradation or outages even when no real users are actively using the application, ensuring that issues are detected before they impact the business.

It is important to contrast this with passive monitoring (Option B). In the Meraki ecosystem, Meraki Insight (MI) natively performs passive monitoring by observing and analyzing actual user traffic flows (HTTP/S data) as they traverse the MX appliance without injecting additional traffic. While passive monitoring is excellent for understanding real-world user experience and server response times, it relies on existing traffic and cannot provide hop-by-hop path visualization across the Internet in the same way active synthetic probing does.

By integrating the ThousandEyes Enterprise Agent—which runs as a containerized service within the MX architecture—the engineer gains the benefits of active monitoring directly from the branch edge. This eliminates the need for separate hardware and provides deep, " outside-in " and " inside-out " visibility into SaaS application performance. Therefore, the deployment of a ThousandEyes agent explicitly enables active monitoring (Option A) to supplement the native passive capabilities of the Meraki platform.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.
