OGEA-103 Exam Dumps - TOGAF Enterprise Architecture Combined Part 1 and Part 2 Exam

An Architecture Board is an executive-level group responsible for the review and maintenance of the strategic architecture and all of its sub-architectures1. It is a key element in a successful Architecture Governance strategy2.

An Architecture Board is typically made responsible, and accountable, for achieving some or all of the following goals2:

Providing the basis for all decision-making with regard to the architectures

Consistency between sub-architectures

Establishing targets for re-use of components

Flexibility of the Enterprise Architecture: To meet changing business needs To leverage new technologies

Enforcement of Architecture Compliance

Improving the maturity level of architecture discipline within the organization

Ensuring that the discipline of architecture-based development is adopted

Supporting a visible escalation capability for out-of-bounds decisions

Therefore, the correct answer is option D, which captures one of the goals of an Architecture Board as stated in the TOGAF Standard, Version 9.22.

Option A is incorrect, because conducting assessments of the maturity level of architecture discipline within the organization is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Capability Framework3.

Option B is incorrect, because allocating resources for architecture projects is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Governance Framework4.

Option C is incorrect, because creating the Statement of Architecture Work is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Development Method5. References:

1: Architecture Board - The Open Group3

2: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Board

3: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Capability Framework

4: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Governance Framework

5: TOGAF Standard, Version 9.2 - Part II: Architecture Development Method - Phase A: Architecture Vision

Risk is defined as the effect of uncertainty on objectives, according to the ISO 31000 standard, which provides principles and guidelines for risk management1 Risk can be positive or negative, depending on whether the uncertainty affects the achievement or the failure of the objectives. Risk can also be expressed in terms of likelihood and impact, which indicate the probability and the consequence of the risk occurrence. Risk management is the coordinated activities to direct and control an organization with regard to risk. Risk management is an integral part of the TOGAF standard, as it helps to identify, assess, and treat the risks that may affect the architecture development and implementation2 References: 1: ISO 31000:2018, Risk management — Guidelines, Clause 3.1 2: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 32: Risk Management

•Phase A: Architecture Vision

oDevelop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture

oDefine the scope and boundaries of the architecture engagement

oIdentify the key stakeholders and their concerns and expectations

oDefine the Architecture Vision statement and the Architecture Definition Document

oObtain approval and commitment from the sponsors and stakeholders

•Phase B: Business Architecture

oDevelop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals

oDefine the Baseline Business Architecture, if not available

oPerform a gap analysis between the Baseline and Target Business Architectures

oDefine candidate roadmap components for the Business Architecture

oResolve impacts across the Architecture Landscape

•Phase C: Information Systems Architecture

oDevelop the Target Data Architecture that enables the Business Architecture and the Architecture Vision

oDevelop the Target Application Architecture that supports the Business Architecture and the Architecture Vision

oDefine the Baseline Data and Application Architectures, if not available

oPerform a gap analysis between the Baseline and Target Data and Application Architectures

oDefine candidate roadmap components for the Information Systems Architecture

oResolve impacts across the Architecture Landscape

•Phase D: Technology Architecture

oDevelop the Target Technology Architecture that enables the Information Systems Architecture and the Architecture Vision

oDefine the Baseline Technology Architecture, if not available

oPerform a gap analysis between the Baseline and Target Technology Architectures

oIdentify candidate Architecture Roadmap components based upon gaps between the Baseline and Target Technology Architectures

oResolve impacts across the Architecture Landscape

Therefore, the correct matching of the objectives and the phases is:

•1C: Develop the Target Data Architecture that enables the Business Architecture and the Architecture Vision

•2B: Develop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals

•3A: Develop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture

•4D: Identify candidate Architecture Roadmap components based upon gaps between the Baseline and Target Technology Architectures

References: 1: The TOGAF Architecture Development Method

According to the TOGAF Standard, 10th Edition, an architecture contract is “a formal agreement between a service provider and a service consumer that defines the mutual commitments and expectations for the delivery of an architecture” 1. An architecture contract is a governed approach of a particular deliverable that will ensure adherence to the principles, standards, and requirements of the existing or developing architectures, as it specifies the roles, responsibilities, deliverables, quality criteria, and acceptance criteria for the architecture work 1. The other options are not correct, as they are not governed approaches of a particular deliverable, but rather different types of deliverables within the architecture development process. An architecture vision is “a high-level, aspirational view of the target architecture” 1. A statement of architecture work is “a document that defines the scope and approach that will be used to complete an architecture project” 1. An architecture definition document is “a document that describes the baseline and target architectures for one or more domains” 1. References: 1: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions.

According to the TOGAF Standard, 10th Edition, the rationale section of the architecture principles template should highlight the business benefits of adhering to the principle, as well as the business risks of not adhering to it 1. The rationale section should explain the reasoning behind the principle, and provide evidence or arguments to support it. The rationale section should also link the principle to the business drivers, goals, and objectives of the enterprise, and show how the principle contributes to the value and success of the enterprise. The other options are not correct, as they have different purposes in the architecture principles template. The name section should provide a short and memorable name for the principle, such as “Information is an Asset” or “Business Continuity” 1. The statement section should provide a concise and formal statement of the principle, such as “The enterprise’s information is recognized as a core asset, and is managed accordingly” or “The enterprise’s ability to provide critical services and products must be maintained in the event of a disaster” 1. The implications section should identify the impact of the principle on the enterprise, such as the changes, costs, benefits, and risks that may result from applying or violating the principle 1. References: 1: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 23: Architecture Principles, Section 23.3 Developing Architecture Principles.

According to the TOGAF Standard, Version 9.2, the ADM phases and their objectives are as follows1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

Requirements Management: To manage the architecture requirements throughout the ADM cycle, and to ensure alignment with the business requirements.

Based on the above definitions, we can match each objective with the corresponding phase as follows:

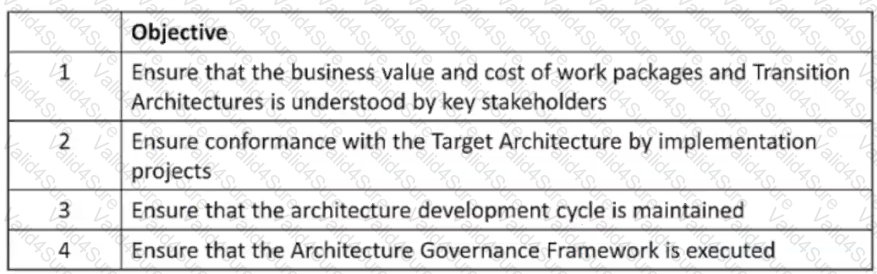

Objective 1: Ensure that the business value and cost of work packages and transition architectures is understood by key stakeholders. This objective is achieved in Phase H: Architecture Change Management, where the value realization and cost-benefit analysis of the architecture are performed2.

Objective 2: Ensure conformance with the Target Architecture by implementation projects. This objective is achieved in Phase F: Migration Planning, where the conformance requirements and criteria for the implementation projects are defined3.

Objective 3: Ensure that the architecture development cycle is maintained. This objective is achieved in Phase F: Migration Planning, where the architecture roadmap and iteration cycle are maintained3.

Objective 4: Ensure that the Architecture Governance Framework is executed. This objective is achieved in Phase G: Implementation Governance, where the architecture governance processes and procedures are applied to the implementation projects4.

References:

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 21: Architecture Change Management

3: The TOGAF Standard, Version 9.2, Chapter 20: Migration Planning

4: The TOGAF Standard, Version 9.2, Chapter 19: Implementation Governance

In TOGAF, creating a Business Scenario is a foundational step in defining and understanding the business problem, especially for complex transformations involving multiple stakeholders and systems, such as in this scenario. This method aligns with Phase A (Architecture Vision) of the TOGAF Architecture Development Method (ADM). Here’s why this approach is the most effective:

Understanding Business Requirements:A Business Scenario provides a structured way to capture and analyze the business requirements, stakeholder concerns, and the contextual elements related to the problem. In this scenario, the company faces challenges in integrating newly acquired companies with existing operations, which includes complex stakeholder concerns across different functional areas. Developing a Business Scenario allows the EA team to break down these complexities into identifiable and manageable parts.

Risk Evaluation and Management:By using the Business Scenario approach, the EA team can not only define the requirements but also assess associated risks systematically. TOGAF emphasizes the importance of risk management through identifying potential risks, evaluating their impact, and defining strategies for handling these risks. The process includes assessing how risks can be avoided, transferred, or reduced—a necessary step in large-scale transformations to ensure that risks are proactively managed.

Residual Risks and Governance:Any risks that cannot be fully resolved should be identified as residual risks and escalated to the Architecture Board, which is aligned with TOGAF’s governance approach. The Architecture Board’s role in TOGAF is to provide oversight and make critical decisions on risks that exceed the control of the EA team. This ensures that unresolved risks are managed at the appropriate level of the organization.

Alignment with TOGAF ADM Phases:The Business Scenario approach directly aligns with the Preliminary and Architecture Vision phases of the TOGAF ADM, which focuses on establishing a baseline understanding of the business context and the strategic transformation required. The detailed understanding of requirements, stakeholder concerns, and risks identified here will guide the subsequent phases of the ADM, including Business Architecture and Information Systems Architecture.

TOGAF Reference (Section 2.6, ADM Techniques):TOGAF provides guidelines on the creation of Business Scenarios as part of ADM Techniques, highlighting the importance of defining a business problem comprehensively to ensure successful transformation. This method includes identification of stakeholders, business requirements, and associated risks, which aligns well with the company's need for strategic and systematic integration of new business units.

By utilizing a Business Scenario, the EA team ensures that all aspects of the transformation are well understood, risks are identified early, and residual risks are managed effectively, aligning with the company's strategic objectives and the TOGAF framework’s guidance on risk management and stakeholder alignment.

A Stakeholder Map is a technique that can be used to identify and classify the stakeholders of the architecture work, and to document their key interests, requirements, and concerns. A stakeholder is any person, group, or organization that has a stake in the outcome of the architecture work, such as the sponsor, the client, the users, the suppliers, the regulators, or the competitors. A Stakeholder Map can help to understand the needs and expectations of the stakeholders, and to communicate and engage with them effectively1

The steps for creating a Stakeholder Map are:

Identify the stakeholders of the architecture work, using various sources and methods, such as interviews, surveys, workshops, or existing documents.

Classify the stakeholders according to their roles, responsibilities, and relationships, using various criteria and dimensions, such as power, influence, interest, attitude, or impact.

Define the concerns and relevant views for each stakeholder group, using various techniques, such as business scenarios, use cases, or value propositions. A concern is a key interest or issue that is relevant to the stakeholder, such as a goal, a problem, a need, or a risk. A view is a representation of the system of interest from the perspective of one or more stakeholders and their concerns.

Record the stakeholders and their concerns in a Stakeholder Map, which shows the mapping between the stakeholder groups, the concerns, and the views. The Stakeholder Map also shows the dependencies, assumptions, and issues related to each stakeholder and concern.

Therefore, the best answer is B, because it recommends the approach that would enable the development of an architecture that addresses the concerns of the CIO and the partners, using the Stakeholder Map technique. The answer covers the following aspects:

An analysis of the stakeholders is undertaken, which involves identifying, classifying, and defining the stakeholders and their concerns.

The stakeholders and their concerns are documented in a Stakeholder Map, which provides a clear and comprehensive picture of the stakeholder landscape and their interests.

The concerns and relevant views are recorded in the Architecture Vision document, which is the output of Phase A: Architecture Vision of the Architecture Development Method (ADM), which is the core process of the TOGAF standard that guides the development and management of the enterprise architecture. The Architecture Vision defines the scope and approach of the architecture work, and establishes the business goals and drivers that motivate the architecture work. The Architecture Vision also involves obtaining the approval and commitment of the sponsors and other key stakeholders, and initiating the Architecture Governance process2

The requirements include risk mitigation through regular assessments, which involves identifying, analyzing, and evaluating the risks that may affect the architecture, and determining the appropriate measures or actions to prevent, reduce, or mitigate the risks. Risk mitigation can also involve monitoring and reviewing the risk situation, and communicating and reporting the risk status and actions3

This approach also allows a supervised agile implementation of the continuous Machine Learning, which involves applying agile principles and practices to the architecture development and implementation, such as iterative and incremental delivery, frequent feedback, collaboration, and adaptation. A supervised agile implementation can help to ensure the quality, value, and alignment of the architecture, and to respond to the changing needs and expectations of the stakeholders.

References: 1: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 24: Stakeholder Management 2: The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 18: Phase A: Architecture Vision 3: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 32: Risk Management : The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 29: Applying Iteration to the ADM
